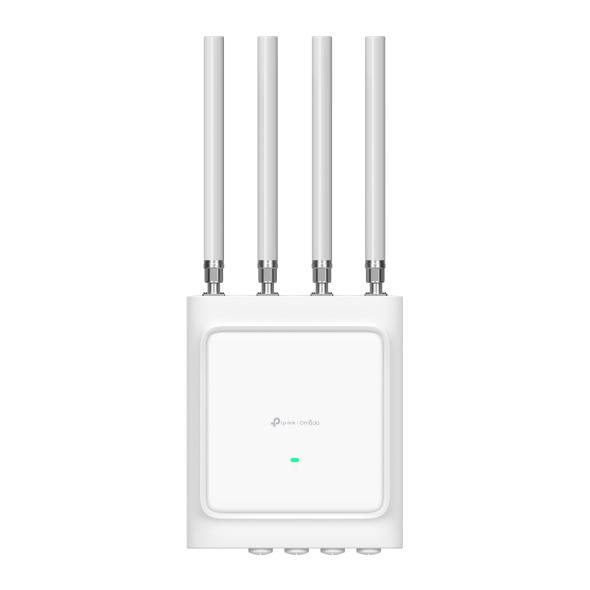

Specifications TP-Link Omada EAP668-Outdoor HD
| Features | Specifications |
|---|---|
Product Overview |
|
| Product Type | AX3600 Indoor/Outdoor High-Density Wi-Fi 6 Access Point |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Total Wireless Speed | Up to 3.55 Gbps |
| Concurrent Clients | Up to 1,024 Devices |
| Coverage | Up to 400 m², depending on environmental conditions |
Wireless |
|
| 2.4 GHz | Up to 1,148 Mbps |
| 5 GHz | Up to 2,402 Mbps |
| MU-MIMO | 4 × 4 MU-MIMO Downlink/Uplink |
| OFDMA | Uplink and Downlink OFDMA |
| Modulation | 1024-QAM |
| Wireless Features | Omada Mesh, Seamless Roaming, Beamforming, Airtime Fairness, Band Steering, Load Balance, Transmit Power Control and Wireless Scheduling |
| Seamless Roaming | 802.11k/v/r |
| SSID | Up to 16 SSIDs, 8 per band |
Antennas |
|
| Antenna Type | 4 × External Dual-Band Omnidirectional N-Type Antennas |
| Antenna Gain | 2.4 GHz: 6 dBi; 5 GHz: 6 dBi |
| Antenna Design | Detachable High-Gain Antennas |
Network Interfaces |
|
| 2.5G Ethernet | 1 × 2.5 Gigabit Ethernet PoE-In Port |
| Gigabit Ethernet | 1 × Gigabit Ethernet PoE-Out Port |
| SFP+ | 1 × 10G SFP+ Slot |
| PoE Input | 802.3at/802.3bt PoE |
| PoE Output | 802.3at PoE-Out; requires 802.3bt PoE input |
Wireless Security |
|
| Wireless Security | WPA-Personal/Enterprise, WPA2-Personal/Enterprise and WPA3-Personal/Enterprise |
| VLAN | Supported |
| Guest Network | Supported |
| Captive Portal | Supported |
| MAC Filtering | Up to 4,000 MAC Addresses |
| Client Isolation | Supported |
| Rogue AP Detection | Supported |
| RADIUS | RADIUS Accounting and MAC Authentication |
Omada Management |
|
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller and Omada Software Controller |
| Omada App | Supported |
| Cloud Access | Supported with Omada Controller |
| Management Interface | Web-Based Management and SSH |
| SNMP | SNMP v1/v2c/v3 |
| Management Features | Firmware Upgrade, Backup & Restore, NTP, Email Alerts, LED ON/OFF Control and MAC Access Control |
Outdoor Protection |
|
| Weatherproof Rating | IP68 |
| Lightning Protection | 6 kV |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5% to 90% RH, non-condensing |
Hardware |
|
| Power Supply | 802.3at/bt PoE |
| Maximum Power Consumption | 20.2 W (EU) / 25.4 W (US) |
| Bluetooth | Supported |
| Button | Reset |
| Mounting | Wall/Pole Mounting with Included Mounting Kit |
| Dimensions | 240 × 80 × 312 mm, excluding antennas, waterproofing kit and mounting kit |
| Certifications | CE, FCC, RoHS |
Package Contents |
|
| Package Includes | EAP668-Outdoor HD, 4 × External Dual-Band Omnidirectional Antennas, Installation Guide, Mounting Kit and Waterproof Kit |
Note: TP-Link Omada EAP668-Outdoor HD is an AX3600 high-density Wi-Fi 6 access point designed for indoor and outdoor environments. It provides up to 3.55 Gbps wireless speed, supports up to 1,024 devices, and features 2.5G PoE-In, Gigabit PoE-Out and 10G SFP+ connectivity. :contentReference[oaicite:0]{index=0}
Important: The PoE-Out function requires 802.3bt PoE input. Actual wireless coverage, throughput and maximum client capacity depend on the environment, network conditions and client devices. :contentReference[oaicite:1]{index=1}
