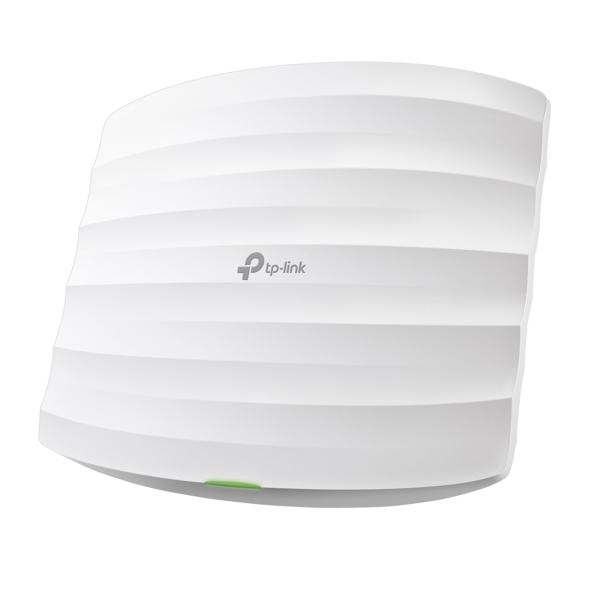

Specifications TP-Link Omada EAP223
| Features | Specifications |
|---|---|
Wireless |
|
| Wi-Fi Standard | IEEE 802.11ac/n/g/b/a (Wi-Fi 5) |
| Wireless Speed | Up to 1,317 Mbps (450 Mbps on 2.4 GHz + 867 Mbps on 5 GHz) |
| Frequency | 2.4 GHz and 5 GHz |
| Concurrent Clients | 220+ |
| Wireless Features | MU-MIMO, Beamforming, Band Steering, Airtime Fairness, Load Balance, Rate Limit and QoS (WMM) |
| SSID | Up to 16 SSIDs, 8 per band |
| Coverage | Up to 115 m² (1250 ft²) |
Hardware |
|
| Ethernet Port | 1× Gigabit Ethernet (RJ-45) |
| Antenna | 3× Internal Omni Antennas, 4 dBi on 2.4 GHz and 5 dBi on 5 GHz |
| Power Supply | 802.3af PoE or 24V Passive PoE |
| Power Consumption | Up to 12.6 W |
| Button | Reset |
| Physical Security | Security Lock |
Omada Features |
|
| Centralized Management | Omada Hardware Controller OC300, OC200, Omada Software Controller and Omada Cloud-Based Controller |
| Omada App | Supported |
| Omada Mesh | Supported |
| Seamless Roaming | Supported |
| Management Features | Automatic Channel Assignment, Transmit Power Control, Wireless Scheduling, Reboot Scheduling, Multi-Site Management and Zero-Touch Provisioning |
| Management Protocols | HTTP/HTTPS, SSH and SNMP v1/v2c |
Security |
|
| Wireless Security | Captive Portal Authentication, Access Control, MAC Address Filtering, Client Isolation, SSID-to-VLAN Mapping, Rogue AP Detection and 802.1X |
Physical & Environment |
|
| Dimensions | 205.5 × 181.5 × 37.1 mm |
| Mounting | Ceiling / Wall Mounting |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Storage Humidity | 5%–90% RH, non-condensing |
| Certifications | CE, FCC, RoHS |
Note: Specifications may vary depending on the hardware version and regional regulations.
