| Features |
Description |
| Device Type |
AX3000 Wi-Fi 6 Gigabit VPN Gateway |
| Wi-Fi Standard |
Wi-Fi 6 (IEEE 802.11ax) |
| Wi-Fi Speed |
Up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz |
| Network Ports |
1 × Gigabit SFP WAN/LAN, 1 × Gigabit WAN and 4 × Gigabit WAN/LAN |
| USB |
1 × USB 3.0 for USB Storage and LTE Backup |
| Maximum WAN |
Up to 5 WAN Ports |
| VPN |
IPsec, OpenVPN, WireGuard, SSL VPN, GRE, L2TP and PPTP |
| Concurrent Sessions |
150,000 |
| New Sessions / Second |
5,100 |
| Management |
Omada Cloud-Based Management, Omada App and Web Interface |
| SFP WAN/LAN Port |
1 × 1000Mbps SFP |
| WAN Port |
1 × 10/100/1000Mbps RJ45 |
| WAN/LAN Ports |
4 × 10/100/1000Mbps RJ45 |
| USB Port |
1 × USB 3.0 |
| USB Function |
USB Storage and LTE Backup with Compatible LTE Dongle |
| Wi-Fi 2.4 GHz |
574 Mbps |
| Wi-Fi 5 GHz |
2402 Mbps, HE160 |
| Antennas |
2 × 3 dBi Dual-Band Detachable Antennas on 2.4 GHz and 3 × 4.5 dBi Dual-Band Detachable Antennas on 5 GHz |
| Flash |
128 MB NAND |
| DRAM |
512 MB DDR4 |
| Power Supply |
12VDC / 2A Power Adapter |
| Surge Protection |
4 kV |
| PERFORMANCE |
| Concurrent Sessions |
150,000 |
| New Sessions / Second |
5,100 |
| NAT Throughput – Static IP |
937.2 Mbps Upload / 936.1 Mbps Download |
| NAT Throughput – DHCP |
945.8 Mbps Upload / 940.6 Mbps Download |
| NAT Throughput – PPPoE |
942.9 Mbps Upload / 942.9 Mbps Download |
| NAT Throughput – L2TP |
837.4 Mbps Upload / 881.5 Mbps Download |
| NAT Throughput – PPTP |
803.0 Mbps Upload / 910.5 Mbps Download |
| IPsec VPN Throughput |
Up to 658.4 Mbps |
| GRE VPN Throughput |
624.2 Mbps Unencrypted / 301.5 Mbps Encrypted |
| WireGuard VPN Throughput |
393.5 Mbps |
| OpenVPN Throughput |
129.3 Mbps |
| SSL VPN Throughput |
126.7 Mbps |
| DPI Throughput |
933 Mbps TCP / 927 Mbps UDP |
| IPS Throughput |
229 Mbps TCP / 188 Mbps UDP |
| ROUTER FEATURES |
| WAN Connection |
Static IP, Dynamic IP, PPPoE, L2TP, PPTP and IPv6 WAN |
| Multi-WAN |
Supports Load Balancing on up to 5 WAN Ports |
| Load Balancing |
Supports Intelligent Load Balancing and Application Optimized Routing |
| Link Backup |
Supports Automatic WAN Failover and Link Backup |
| Policy Routing |
Supports Policy-Based Routing |
| Static Routing |
Supports IPv4 and IPv6 Static Routing |
| DHCP |
DHCP Server, DHCP Client, DHCP Relay and Address Reservation |
| VLAN |
IEEE 802.1Q VLAN |
| NAT |
One-to-One NAT, Virtual Server, Port Triggering, NAT-DMZ and UPnP |
| IPTV |
IGMP v2/v3 Proxy |
| VPN FEATURES |
| IPsec VPN |
Supports Site-to-Site and Client-to-Site IPsec VPN |
| OpenVPN |
Supports OpenVPN Server and Client |
| WireGuard VPN |
Supports WireGuard VPN |
| SSL VPN |
Supports SSL VPN |
| GRE VPN |
Supports GRE VPN |
| L2TP VPN |
Supports L2TP VPN Server and Client |
| PPTP VPN |
Supports PPTP VPN Server and Client |
| SMART FEATURES |
| Wi-Fi 6 AX3000 |
Provides up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz with HE160 |
| 5-WAN Load Balancing |
Supports Load Balancing Across up to 5 WAN Connections |
| Gigabit SFP WAN |
Provides 1 × Gigabit SFP WAN/LAN Port for Fiber Connectivity |
| LTE Backup |
Supports LTE Backup Through a Compatible USB LTE Dongle |
| Omada SDN |
Supports Centralized Management Through Omada Cloud-Based Controller |
| Omada Mesh |
Supports Omada Mesh with Compatible Omada Access Points |
| Captive Portal |
Supports Captive Portal for Guest Network Authentication |
| DPI |
Deep Packet Inspection for Application Identification and Traffic Analysis |
| IDS/IPS |
Provides Intrusion Detection and Prevention |
| Firewall |
Supports Advanced Firewall Policies and Access Control |
| DoS Defense |
Protects Against TCP, UDP and ICMP Flood Attacks |
| IP/MAC/URL Filtering |
Provides Traffic Filtering and Access Control |
| Cloud Management |
Supports Remote Network Management Through Omada Cloud and Omada App |
| GENERAL |
| Device Type |
AX3000 Wi-Fi 6 Gigabit VPN Gateway |
| Network Ports |
1 × Gigabit SFP WAN/LAN, 1 × Gigabit WAN and 4 × Gigabit WAN/LAN |
| Maximum WAN |
Up to 5 WAN Ports |
| Wi-Fi |
Dual-Band Wi-Fi 6 AX3000 |
| PoE |
Not Supported |
| Management |
Omada Cloud, Omada App and Web Interface |
| Memory |
512 MB DDR4 |
| Flash |
128 MB NAND |
| Power Supply |
12VDC / 2A |
| Maximum Power Consumption |
EU: 16.8W with USB 3.0 Connected / 11.8W without USB 3.0 Connected |
| Dimensions |
226 × 131 × 35 mm |
| Installation Method |
Desktop / Wall Mount / Rack Mount with Optional Rack Kit |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |

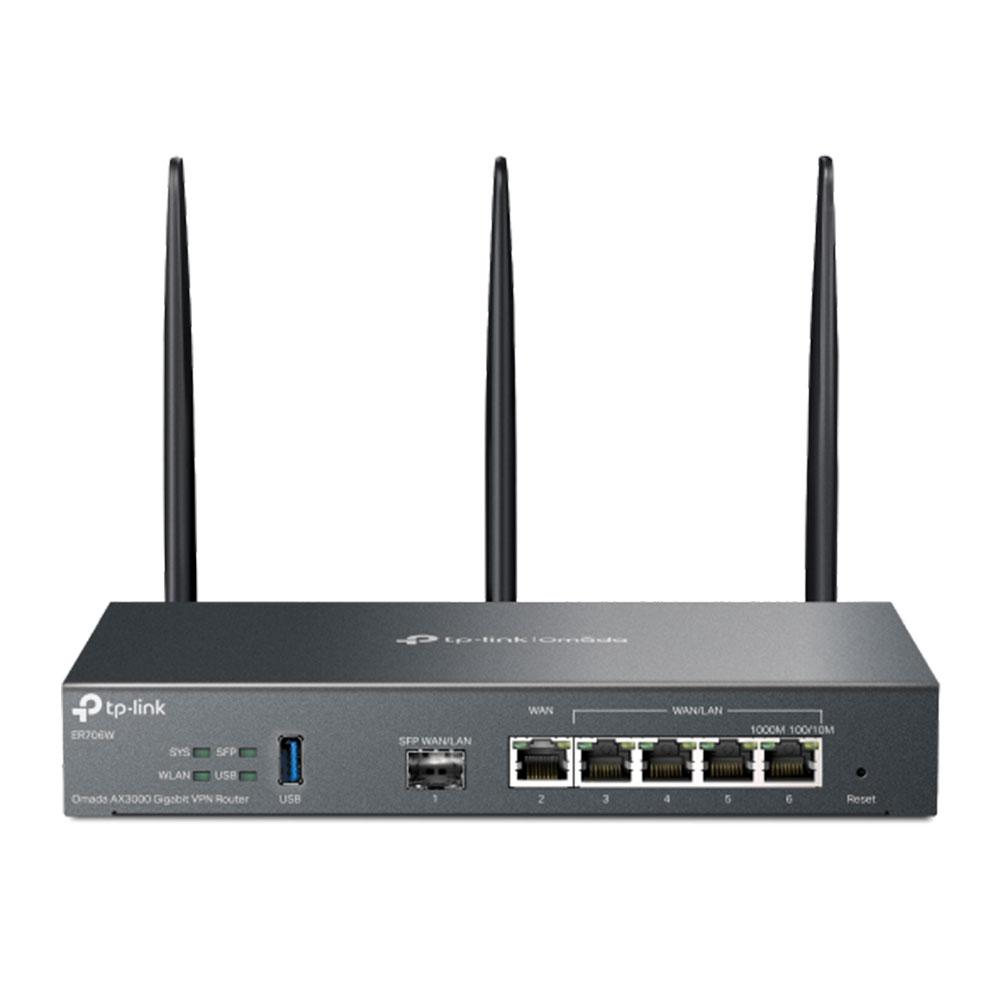

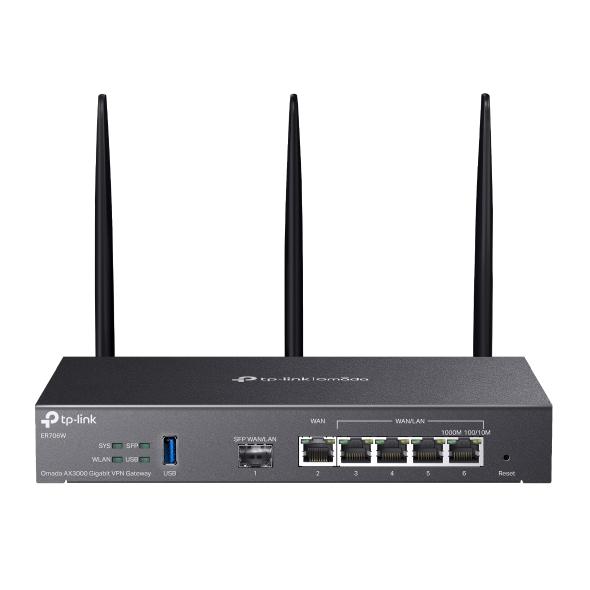

Note: The TP-Link Omada ER706W is an AX3000 Wi-Fi 6 Gigabit VPN Gateway featuring 1 × Gigabit SFP WAN/LAN port, 1 × Gigabit RJ45 WAN port and 4 × Gigabit RJ45 WAN/LAN ports. It provides up to 3.0 Gbps combined Wi-Fi 6 wireless speed, supports up to 5 WAN connections, USB 3.0 LTE backup, Omada Mesh and comprehensive VPN and network security features.
Important: The ER706W is a VPN Gateway with built-in Wi-Fi 6, not a PoE switch. It has 6 physical network interfaces consisting of 1 × Gigabit SFP and 5 × Gigabit RJ45, with up to 5 WAN ports available through configuration.
