| Features |
Description |
| Device Type |
3-in-1 Gigabit VPN Router with PoE+ Switch and Omada SDN Controller |
| SFP WAN/LAN Ports |
2 × Gigabit SFP |
| WAN Port |
1 × Gigabit RJ45 WAN |
| WAN/LAN Port |
1 × Gigabit RJ45 WAN/LAN |
| LAN Ports |
8 × Gigabit RJ45 PoE+ Ports |
| PoE Standard |
IEEE 802.3af/at |
| Total PoE Budget |
110W |
| VPN |
IPsec, OpenVPN, L2TP, PPTP and WireGuard VPN |
| Omada Controller |
Integrated Omada SDN Controller |
| Managed Omada Devices |
Up to 24 Omada Devices: 2 Gateways + 22 Switches/EAPs |
| Concurrent Sessions |
50,000 |
| New Sessions / Second |
3,800 |
| Management |
Omada App, Web UI and Cloud Access |
| SFP WAN/LAN Ports |
2 × 1000Mbps SFP |
| WAN Port |
1 × 10/100/1000Mbps RJ45 |
| WAN/LAN Port |
1 × 10/100/1000Mbps RJ45 |
| LAN Ports |
8 × 10/100/1000Mbps RJ45 |
| PoE Ports |
8 × PoE+ RJ45 |
| PoE Standard |
IEEE 802.3af/at |
| Total PoE Budget |
110W |
| PoE Power |
Up to 30W per PoE+ Port |
| Power Supply |
53.5VDC/2.43A Adapter |
| Flash |
32Mbit NOR + 8GB eMMC |
| DRAM |
2GB DDR4 |
| Fan |
Fanless |
| Surge Protection |
6kV |
| ESD Protection |
±8kV Air Discharge, ±4kV Contact Discharge |
| ROUTER FEATURES |
| WAN Connection |
Static IP, Dynamic IP, PPPoE, L2TP and PPTP |
| Multi-WAN |
Supports up to 4 WAN Ethernet Connections |
| Load Balancing |
Supports WAN Load Balancing and Link Backup |
| Routing |
Static Routing, Policy Routing and Dynamic Routing Features |
| DHCP |
DHCP Server, DHCP Client, DHCP Relay and DHCP Snooping |
| VLAN |
802.1Q VLAN and LAN/WAN VLAN Configuration |
| NAT |
Port Forwarding, Port Triggering, NAT-DMZ and UPnP |
| Firewall |
SPI Firewall, IP/MAC/URL Filtering, Access Control and DoS Defense |
| IPv6 |
Supports IPv6 Routing and IPv6 Firewall Features |
| VPN FEATURES |
| IPsec VPN |
Supports Site-to-Site and Client-to-Site IPsec VPN |
| OpenVPN |
Supports OpenVPN Server and Client |
| L2TP VPN |
Supports L2TP VPN Connections |
| PPTP VPN |
Supports PPTP VPN Connections |
| WireGuard VPN |
Supports WireGuard VPN |
| SMART FEATURES |
| 3-in-1 Design |
Combines a Gigabit VPN Router, 8-Port PoE+ Switch and Omada SDN Controller in One Device |
| Omada SDN Controller |
Provides Centralized Management, Device Discovery, Configuration, Monitoring and Network Management |
| Omada Device Management |
Manages up to 24 Omada Devices, including up to 2 Gateways and 22 Switches/EAPs |
| PoE+ Output |
Provides 8 × IEEE 802.3af/at PoE+ Ports with 110W Total PoE Budget |
| Multi-WAN |
Supports up to 4 WAN Ports Using 2 × SFP WAN/LAN, 1 × RJ45 WAN and 1 × RJ45 WAN/LAN |
| Load Balancing |
Distributes Traffic Across Multiple WAN Connections for Improved Availability and Bandwidth Utilization |
| Cloud Management |
Supports Remote Management Through Omada Cloud Access and Omada App |
| Network Security |
Supports SPI Firewall, ACL, IP/MAC/URL Filtering, DoS Defense and Other Security Features |
| VLAN |
Supports 802.1Q VLAN for Network Segmentation and Traffic Isolation |
| Captive Portal |
Supports Captive Portal Authentication for Guest Network Access |
| PERFORMANCE |
| Concurrent Sessions |
50,000 |
| New Sessions / Second |
3,800 |
| Static IP NAT Throughput |
940.2 Mbps Upload / 947.5 Mbps Download |
| DHCP NAT Throughput |
947.8 Mbps Upload / 948.6 Mbps Download |
| PPPoE NAT Throughput |
943.1 Mbps Upload / 942.6 Mbps Download |
| L2TP NAT Throughput |
898.4 Mbps Upload / 915.8 Mbps Download |
| IPsec VPN Throughput |
Up to 168.5 Mbps with AES256 |
| GENERAL |
| Device Type |
3-in-1 Gigabit VPN Router |
| Network Ports |
2 × Gigabit SFP WAN/LAN, 1 × Gigabit RJ45 WAN, 1 × Gigabit RJ45 WAN/LAN, 8 × Gigabit RJ45 LAN |
| PoE |
8 × PoE+ Ports, 110W Total PoE Budget |
| Omada Controller |
Integrated |
| Management |
Omada App, Web UI and Cloud Access |
| Installation Method |
Desktop / Wall-Mount / Rack-Mount with Optional Rack Kit |
| Enclosure |
Steel |
| Fan |
Fanless |
| Maximum Power Consumption |
131W with 110W PoE Load |
| Dimensions |
226 × 131 × 35 mm |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Mounting |
Desktop, Wall-Mount and Optional Rack-Mount |

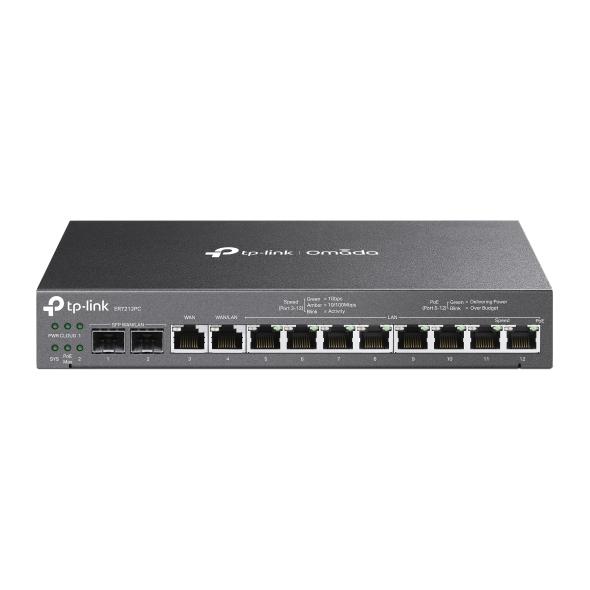

Note: The TP-Link Omada ER7212PC is a 3-in-1 Gigabit VPN Router that combines a router, 8-port Gigabit PoE+ switch and integrated Omada SDN Controller. It provides 2 × Gigabit SFP WAN/LAN ports, 1 × Gigabit RJ45 WAN port, 1 × Gigabit RJ45 WAN/LAN port and 8 × Gigabit PoE+ LAN ports with a 110W total PoE budget. The V2 hardware features a dual-core 1.2GHz CPU, 2GB DDR4 memory and 8GB eMMC storage.
Important: The ER7212PC is not simply a PoE switch. It combines Router + PoE+ Switch + Omada Controller in one device. The 8 LAN ports provide PoE+ output, with a total budget of 110W. The device can manage up to 24 Omada devices in the current V2 specification.
