| Features |
Description |
| Product Type |
Omada Hardware Controller |
| Processor |
Quad-Core ARM Cortex-A72, 2.2 GHz |
| Memory |
8 GB DDR4 |
| Storage |
32 GB eMMC + 4 MB NOR Flash |
| SFP+ Ports |
2 × 1/10G SFP+ |
| Ethernet Ports |
4 × 10/100/1000 Mbps Gigabit Ethernet |
| USB |
2 × USB 3.0 |
| Console |
1 × RJ45 Console Port |
| Management Scale |
Up to 1,000 Omada APs, 200 Switches and 100 Routers |
| Power Supply |
100–240V AC, 50/60Hz |
| Redundant Power |
2 × Internal Fixed Power Supplies |
| HARDWARE |
| Processor |
Quad-Core ARM Cortex-A72 @ 2.2 GHz |
| Memory |
8 GB DDR4 |
| Storage |
32 GB eMMC + 4 MB NOR Flash |
| SFP+ Ports |
2 × 1/10G SFP+ |
| Ethernet Ports |
4 × 10/100/1000 Mbps |
| USB Ports |
2 × USB 3.0 |
| Console |
1 × RJ45 Console Port |
| Reset |
1 × Reset Button |
| Security |
1 × Kensington Lock |
| Grounding |
1 × Ground Screw |
| OMADA MANAGEMENT |
| Centralized Management |
Centralized Management of Omada Access Points, Switches and Routers |
| Access Points |
Up to 1,000 APs |
| Switches |
Up to 200 Switches |
| Routers |
Up to 100 Routers |
| Multi-Site Management |
Supported |
| Multi-Tenant Management |
Supported with Role, Site and Device Privileges |
| Cloud Access |
Supported |
| Automatic Device Discovery |
Supported |
| Batch Configuration |
Supported |
| Batch Firmware Upgrade |
Supported |
| Remote Management |
Supported |
| Backup & Restore |
Supported |
| NETWORK MANAGEMENT |
| Network Monitoring |
Real-Time Network Monitoring and Traffic Analysis |
| Network Topology |
Real-Time Network Topology Visualization |
| Dashboard |
Custom Network Dashboard |
| Client Monitoring |
Client List and Client Statistics |
| Device Monitoring |
Device Status and Statistics |
| Event Logs |
Alerts, Events and Network Logs |
| Network Map |
Supported |
| WLAN Management |
Centralized Wireless Network Management |
| Wired Management |
Centralized Wired Network Management |
| NETWORK FEATURES |
| VLAN |
Supported |
| ACL |
Supported on Compatible Omada Devices |
| Bandwidth Control |
Supported |
| Captive Portal |
Supported |
| RADIUS |
Supported |
| 802.1X |
Supported |
| SNMP |
Supported |
| SSH |
Supported |
| VPN Management |
Supported on Compatible Omada Gateways |
| POWER & GENERAL |
| Power Supply |
100–240V AC, 50/60Hz |
| Redundant Power Supply |
2 × Internal Fixed Power Supplies |
| Maximum Power Consumption |
22.8W without USB / 33.1W with 2 USB devices connected |
| Cooling |
1 × Built-in Fan |
| Dimensions |
440 × 180 × 44 mm |
| Installation |
Rack-Mount / Desktop Installation |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certifications |
CE, FCC and RoHS |

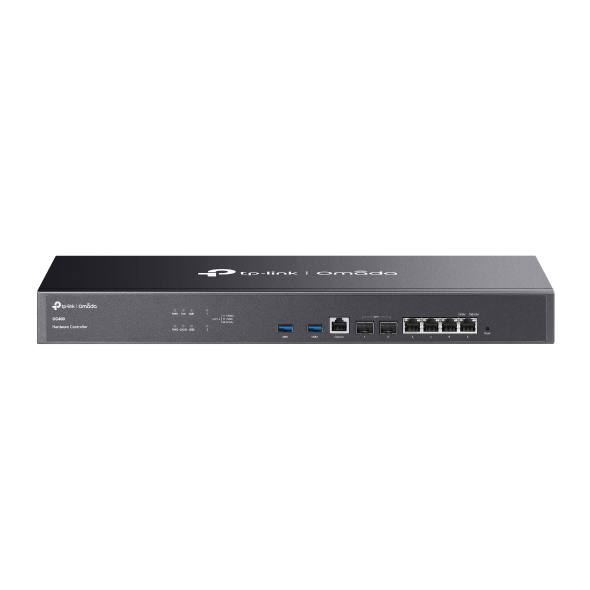

Note: The TP-Link Omada OC400 is an enterprise-grade hardware controller designed for centralized management of large Omada networks. It features a Quad-Core ARM Cortex-A72 processor, 8GB DDR4 memory, 32GB eMMC storage, 2 × 1/10G SFP+ ports, 4 × Gigabit Ethernet ports and 2 × USB 3.0 ports. It supports centralized management of up to 1,000 Omada Access Points, 200 switches and 100 routers.
Important: The OC400 is a dedicated Omada network controller, not a router, switch or Access Point. It is designed for large-scale centralized management and can be installed in a standard rack. The controller includes two internal fixed power supplies for power redundancy and a built-in fan for cooling.
