| Features |
Specifications |
| Product Type |

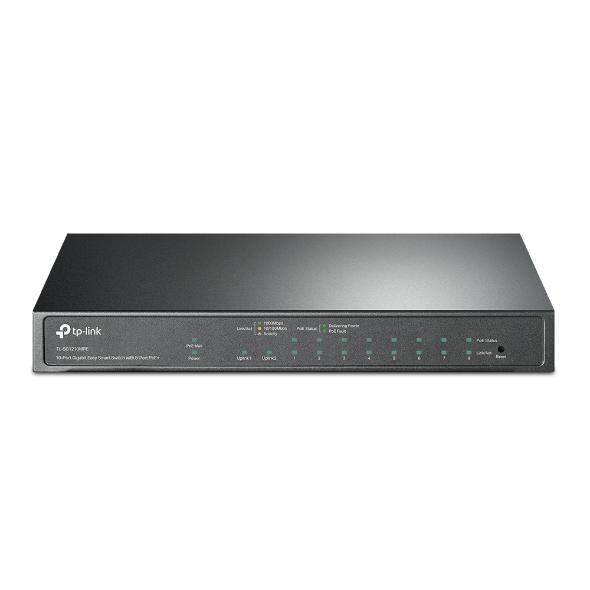

10-Port Gigabit Easy Smart Switch with 8-Port PoE+ |
| Interfaces |
9 × 10/100/1000 Mbps RJ45 Ports |
| Uplink Port |
1 × 1000 Mbps Combo SFP/RJ45 Port |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
8 Ports, up to 30W per port |
| PoE Power Budget |
123W |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.88 Mpps |
| MAC Address Table |
4K |
| Jumbo Frame |
16 KB |
Layer 2 & Layer 3 Features
| Features |
Specifications |
| VLAN |
MTU VLAN, Port-Based VLAN, 802.1Q VLAN, Up to 32 VLANs |
| Link Aggregation |
Static Link Aggregation, Up to 4 Groups |
| Spanning Tree |
Not Supported |
| IGMP Snooping |
IGMP Snooping V1/V2/V3 |
| Port Mirroring |
One-to-One, Many-to-One |
| Cable Diagnostics |
Supported |
| Loop Prevention |
Supported |
| Transmission Method |
Store-and-Forward |
Security & QoS
| Features |
Specifications |
| QoS |
Port-Based, 802.1p and DSCP Priority |
| Priority Queues |
4 Priority Queues |
| Rate Limit |
Supported |
| Storm Control |
Supported |
| Traffic Management |
Port Mirroring, Rate Limit, Storm Control |
| MAC Address Management |
Auto-Learning and Auto-Aging |
PoE & Advanced Functions
| Features |
Specifications |
| Extend Mode |
Up to 250m Data and Power Transmission |
| Extend Mode Ports |
PoE Ports |
| PoE Auto Recovery |
Automatically Detects and Reboots Unresponsive PoE Devices |
| PoE Power Management |
Intelligent Power Management |
| PoE Device Detection |
Automatically Detects Connected PoE Devices |
| Plug and Play |
Supported |
Management & Configuration
| Features |
Specifications |
| Management |
Web-Based GUI |
| Configuration Utility |
Easy Smart Configuration Utility |
| Management Features |
VLAN, QoS, Monitoring, PoE Management |
| Network Monitoring |
Port Statistics and Traffic Monitoring |
Hardware & General
| Features |
Specifications |
| Fan |
Fanless |
| Power Supply |
External Power Adapter, 53.5VDC / 2.43A |
| Max Power Consumption |
7.66W without PD; 141.54W with 123W PD |
| Mounting |
Desktop / Wall Mountable |

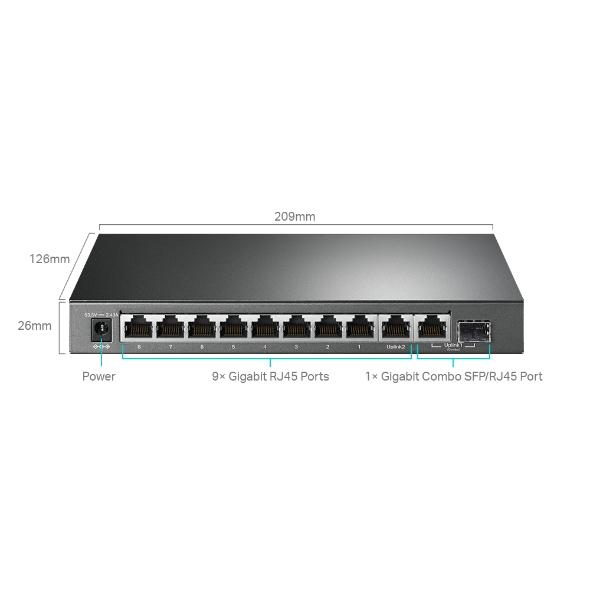

| Dimensions |
209 × 126 × 26 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Storage Humidity |
5%–95% RH, non-condensing |
| Certifications |
FCC, CE, RoHS |
Note: TL-SG1210MPE provides 123W total PoE power with up to 30W per PoE+ port and includes a Combo Gigabit SFP/RJ45 port for uplink connectivity.
Important: Extend Mode can provide up to 250m data and power transmission. Port speed is reduced to 10 Mbps when Extend Mode is enabled, and actual transmission distance may vary depending on cable quality and PoE device power consumption.
