| Features |
Specifications |
| Product Type |
JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots |
| Ethernet Ports |
8 × 10/100/1000 Mbps RJ45 Ports |
| SFP Slots |
2 × Gigabit SFP Slots |
| Console Ports |
1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| Switching Capacity |
20 Gbps |
| Packet Forwarding Rate |
14.89 Mpps |
| MAC Address Table |
8K |
| Packet Buffer Memory |
4.1 Mbit |
| Jumbo Frame |
9 KB |
| PoE |
Not Supported |
Layer 2 & Layer 3 Features
| Features |
Specifications |
| VLAN |
802.1Q Tagged VLAN, up to 4K VLAN Groups, MAC VLAN, Protocol VLAN, GVRP, Voice VLAN and Port-Based VLAN |
| Link Aggregation |
Static Link Aggregation and 802.3ad LACP; up to 8 aggregation groups with up to 8 ports per group |
| Spanning Tree |
802.1D STP, 802.1w RSTP and 802.1s MSTP |
| STP Security |
TC Protect, BPDU Filter, BPDU Protect, Root Protect and Loop Protect |
| Loopback Detection |
Port-based and VLAN-based Loopback Detection |
| Static Routing |
Supports Static Routing with up to 48 static routes |
| IP Interfaces |
16 IPv4/IPv6 Interfaces |
| ARP |
Static ARP, Proxy ARP, Gratuitous ARP and up to 316 ARP Entries |
| DHCP |
DHCP Server, DHCP Relay and DHCP L2 Relay |
| Multicast |
IGMP Snooping v1/v2/v3, IGMP Snooping Querier, Fast Leave, MVR, MLD Snooping and Multicast Filtering |
| Flow Control |
IEEE 802.3x Flow Control and HOL Blocking Prevention |
| Port Mirroring |
Port Mirroring and CPU Mirroring; One-to-One, Many-to-One and Tx/Rx/Both modes |
Security & QoS
| Features |
Specifications |
| Access Control List |
Time-Based ACL, MAC ACL, IP ACL, Combined ACL, Packet Content ACL and IPv6 ACL |
| IP-MAC-Port Binding |
DHCP Snooping, ARP Inspection and IPv4 Source Guard |
| IPv6 Security |
DHCPv6 Snooping, ND Detection and IPv6 Source Guard |
| Port Security |
Static/Dynamic Port Security with up to 64 MAC addresses per port |
| DoS Protection |
DoS Defend |
| Storm Control |
Broadcast, Multicast and Unicast Storm Control with kbps, ratio and pps control modes |
| 802.1X Authentication |
Port-Based Authentication, MAC-Based Authentication, VLAN Assignment, MAB and Guest VLAN |
| RADIUS |
RADIUS Authentication and Accounting; AAA including TACACS+ |
| QoS Queues |
8 Priority Queues |
| QoS Priority |
802.1p CoS/DSCP Priority |
| Queue Scheduling |
SP, WRR and SP+WRR |
| Bandwidth Control |
Port-Based and Flow-Based Rate Limiting |
| QoS Remark |
802.1p Remark and DSCP Remark |
PoE & Advanced Functions
| Features |
Specifications |
| PoE |
Not Supported |
| Omada SDN |
Supports Omada Hardware Controller, Software Controller and Cloud-Based Controller |
| Centralized Management |
Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrade and Unified Configuration |
| Zero-Touch Provisioning |
Supported with Omada Cloud-Based Controller |
| QinQ |
Port-Based QinQ and Selective QinQ |
| ISP Features |
sFlow, QinQ, L2PT PPPoE ID Insertion, IGMP Authentication, 802.3ah OAM and DLDP |
| IPv6 |
Dual IPv4/IPv6 Stack, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, MLD Snooping, DHCPv6 and IPv6 Neighbor Discovery |
Management & Configuration
| Features |
Specifications |
| Management Interface |
Web-Based GUI |
| CLI Management |
CLI through Console Port, Telnet and SSH |
| SNMP |
SNMP v1/v2c/v3 with Trap/Inform |
| RMON |
RMON Groups 1, 2, 3 and 9 |
| LLDP |
802.1ab LLDP and LLDP-MED |
| Monitoring |
CPU Monitoring, Intelligent Network Monitoring and Abnormal Event Warnings |
| Configuration |
Dual Image, Dual Configuration and DHCP AutoInstall |
| Diagnostics |
Cable Diagnostics, Remote Ping and Traceroute |
| Time Synchronization |
SNTP |
| System Log |
Supported |
| Omada App |
Supported through Omada Cloud-Based Controller, OC200, OC300 or Omada Software Controller |
Hardware & General
| Features |
Specifications |
| Fan |
Fanless Design |
| Power Supply |
100–240 V AC, 50/60 Hz |
| Maximum Power Consumption |
6.8 W |
| Maximum Heat Dissipation |
23.3 BTU/h |
| Dimensions |
294 × 180 × 44 mm |
| Mounting |
Rack Mountable / Desktop |
| Operating Temperature |
0–45°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, Non-Condensing |
| Storage Humidity |
5–90% RH, Non-Condensing |
| Certification |
CE, FCC, RoHS |

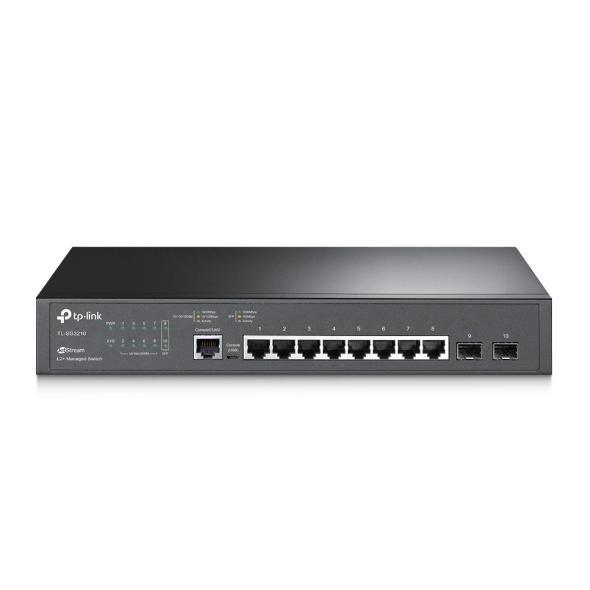

Note: TP-Link TL-SG3210 is a fanless Gigabit L2+ managed switch with 8 Gigabit RJ45 ports and 2 Gigabit SFP slots, supporting VLAN, Static Routing, ACL, QoS, multicast management and centralized Omada management.
Important: Specifications may vary by hardware revision. Please verify the hardware version and firmware compatibility before installation or deployment.
