| Features |
Specifications |
| Product Type |

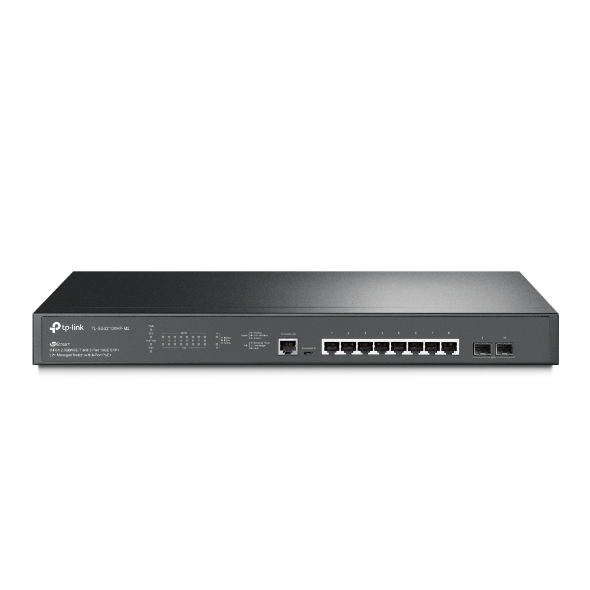

JetStream L2+ Managed PoE+ Switch |
| Interfaces |
8 × 100/1000/2500 Mbps RJ45 Ports |
| 10G Uplink |
2 × 10G SFP+ Slots |
| Console |
1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| PoE Standard |
IEEE 802.3af/at |
| PoE Ports |
8 Ports, up to 30W per port |
| PoE Power Budget |
240W |
| Switching Capacity |
80 Gbps |
| Packet Forwarding Rate |
59.52 Mpps |
| MAC Address Table |
16K |
| Packet Buffer |
12 Mbit |
| Jumbo Frame |
9 KB |
Layer 2+ Features
| Features |
Specifications |
| VLAN |
802.1Q VLAN, MAC VLAN, Protocol VLAN, Voice VLAN |
| Link Aggregation |
Static Link Aggregation, 802.3ad LACP |
| Spanning Tree |
STP, RSTP, MSTP |
| Loopback Detection |
Supported |
| IGMP Snooping |
Supported |
| Static Routing |
48 Static Routes for IPv4/IPv6 |
| IP Interfaces |
Up to 16 IPv4/IPv6 Interfaces |
| DHCP |
DHCP Server, DHCP Relay, DHCP L2 Relay |
Security & QoS
| Features |
Specifications |
| Security |
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control |
| Authentication |
802.1X, RADIUS Authentication |
| QoS |
8 Priority Queues, 802.1p CoS/DSCP, SP, WRR, SP+WRR |
| Bandwidth Control |
Port/Flow-based Rate Limiting |
| Traffic Management |
Port Mirroring, Redirect, Rate Limit, QoS Remark |
Omada SDN & Management
| Features |
Specifications |
| Omada SDN |
Centralized Cloud Management and Zero-Touch Provisioning |
| Management |
Web, CLI, Console, Telnet, SSH |
| Network Management |
SNMP, RMON |
| Firmware |
Dual Image |
| Monitoring |
Omada App and Centralized Cloud Management |
Hardware & General
| Features |
Specifications |
| Flash Memory |
32 MB |
| DRAM |
256 MB |
| Power Supply |
100–240V AC, 50/60Hz |
| Fan |
2 Fans |
| Installation |
Rack Mountable |
| Dimensions |
440 × 180 × 44 mm |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Certifications |
CE, FCC, RoHS |
Note: The switch provides 240W total PoE power and supports up to 30W per PoE port. The 2 × 10G SFP+ slots provide high-speed uplink connectivity.
Important: TL-SG3210XHP-M2 is designed for rack-mount installation and supports Omada SDN centralized management.
