| Features |
Specifications |
| Product Type |

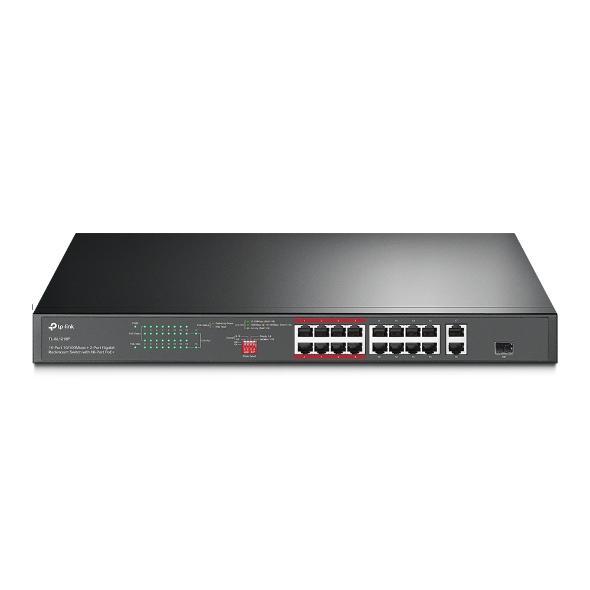

16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ |
| PoE Ports |
16 × 10/100 Mbps PoE+ RJ45 Ports |
| Uplink Ports |
2 × 10/100/1000 Mbps RJ45 Ports + 1 × Combo Gigabit SFP Slot |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power Budget |
150W total, up to 30W per PoE port |
| Switching Capacity |
7.2 Gbps |
| Packet Forwarding Rate |
5.36 Mpps |
| MAC Address Table |
8K |
| Jumbo Frame |
10 KB |
Layer 2 & Layer 3 Features
| Features |
Specifications |
| MAC Address Learning |
Auto-Learning and Auto-Aging |
| Flow Control |
IEEE 802.3x |
| Layer 2 Management |
Not Supported |
| Layer 3 Routing |
Not Supported |
Security & QoS
| Features |
Specifications |
| Isolation Mode |
Ports 1–16 |
| Priority Mode |
Ports 1–8 |
| Traffic Separation |
One-click traffic isolation for PoE ports |
| QoS |
Priority Mode for sensitive applications such as video monitoring |
PoE & Advanced Functions
| Features |
Specifications |
| PoE Ports |
Ports 1–16 |
| PoE Power Budget |
150W |
| Maximum PoE Power |
Up to 30W per port |
| Extend Mode |
Up to 250m data and power transmission; port speed is reduced to 10 Mbps |
| PoE Auto Recovery |
Automatically reboots dropped or unresponsive PoE devices |
| Priority Mode |
Ports 1–8 |
| Isolation Mode |
Ports 1–16 |
| PoE Compatibility |
IEEE 802.3af/at compliant powered devices |
Management & Configuration
| Features |
Specifications |
| Switch Type |
Unmanaged |
| Configuration |
Plug and Play; no configuration required |
| Management Interface |
Not Supported |
Hardware & General
| Features |
Specifications |
| Fan |
Fanless design |
| Power Supply |
100–240V AC, 50/60Hz |
| Dimensions |
440 × 180 × 44 mm |
| Mounting |
Rackmount |
| Operating Temperature |
0–50°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, non-condensing |
| Storage Humidity |
5–90% RH, non-condensing |
| Certification |
CE, FCC, RoHS |
| Transmission Method |
Store-and-Forward |
| Physical Security Lock |
Yes |
Note: Extend Mode supports PoE transmission up to 250 meters, but the port speed is reduced to 10 Mbps. Actual transmission distance may vary depending on cable quality and the power consumption of connected devices.
Important: TL-SL1218P is an unmanaged PoE+ switch and does not support web-based configuration, VLAN configuration, static routing, or advanced managed switch functions.
