| Features |
Specifications |
| Product Type |
8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ |
| Fast Ethernet Ports |
8 × 10/100 Mbps RJ45 PoE+ Ports |
| Gigabit RJ45 Ports |
2 × 10/100/1000 Mbps RJ45 Ports |
| SFP Port |
1 × Gigabit SFP Port |
| PoE Ports |
Ports 1–8 |
| PoE Standard |
IEEE 802.3af/at |
| PoE Power per Port |
Up to 30 W per PoE port |
| PoE Budget |
124 W |
| Switching Capacity |
7.6 Gbps |
| Packet Forwarding Rate |
5.6544 Mpps |
| MAC Address Table |
2K |
| Jumbo Frame |
16 KB |
Layer 2 & Layer 3 Features
| Features |
Specifications |
| Management |
Unmanaged Switch |
| VLAN |
Not Supported |
| Static Routing |
Not Supported |
| Link Aggregation |
Not Supported |
| Spanning Tree |
Not Supported |
| IGMP Snooping |
Not Supported |
| Flow Control |
IEEE 802.3x Flow Control for Full-Duplex and Backpressure for Half-Duplex |
| Transmission Method |
Store-and-Forward |
Security & QoS
| Features |
Specifications |
| Isolation Mode |
Ports 1–8 can be isolated from each other for improved network security and performance |
| MAC Address |
Auto-Learning and Auto-Aging |
| Traffic Control |
Isolation Mode helps separate client traffic and reduce broadcast interference |
| QoS |
Not Supported |
| ACL |
Not Supported |
| 802.1X Authentication |
Not Supported |
PoE & Advanced Functions
| Features |
Specifications |
| PoE Technology |
IEEE 802.3af/at PoE+ |
| PoE Power Budget |
124 W |
| Maximum PoE Power |
Up to 30 W per port |
| Extend Mode |
Up to 250 m data and power transmission on Ports 1–8; port speed is reduced to 10 Mbps |
| Isolation Mode |
Ports 1–8 traffic isolation |
| PoE Auto Recovery |
Automatically detects and reboots disconnected or unresponsive PoE devices |
| Intelligent Power Management |
Manages PoE power allocation when total power consumption exceeds the available 124 W budget |
Management & Configuration
| Features |
Specifications |
| Configuration |
Plug and Play; No Configuration Required |
| Web Management |
Not Supported |
| CLI Management |
Not Supported |
| SNMP |
Not Supported |
| PoE Control |
Extend Mode, Isolation Mode and PoE Auto Recovery Buttons |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
Hardware & General
| Features |
Specifications |
| Fan |
Fanless Design |
| Power Supply |
External Power Adapter, 53.5 VDC / 2.43 A |
| Maximum Power Consumption |
5.95 W without PD connected; 140.92 W with 124 W PD connected |
| Heat Dissipation |
20.29 BTU/h without PD; 480.54 BTU/h with 124 W PD |
| Dimensions |
209 × 126 × 26 mm |
| Mounting |
Desktop / Wall Mountable |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-40–70°C |
| Operating Humidity |
10–90% RH, Non-Condensing |
| Storage Humidity |
5–90% RH, Non-Condensing |
| Certification |
FCC, CE, RoHS |

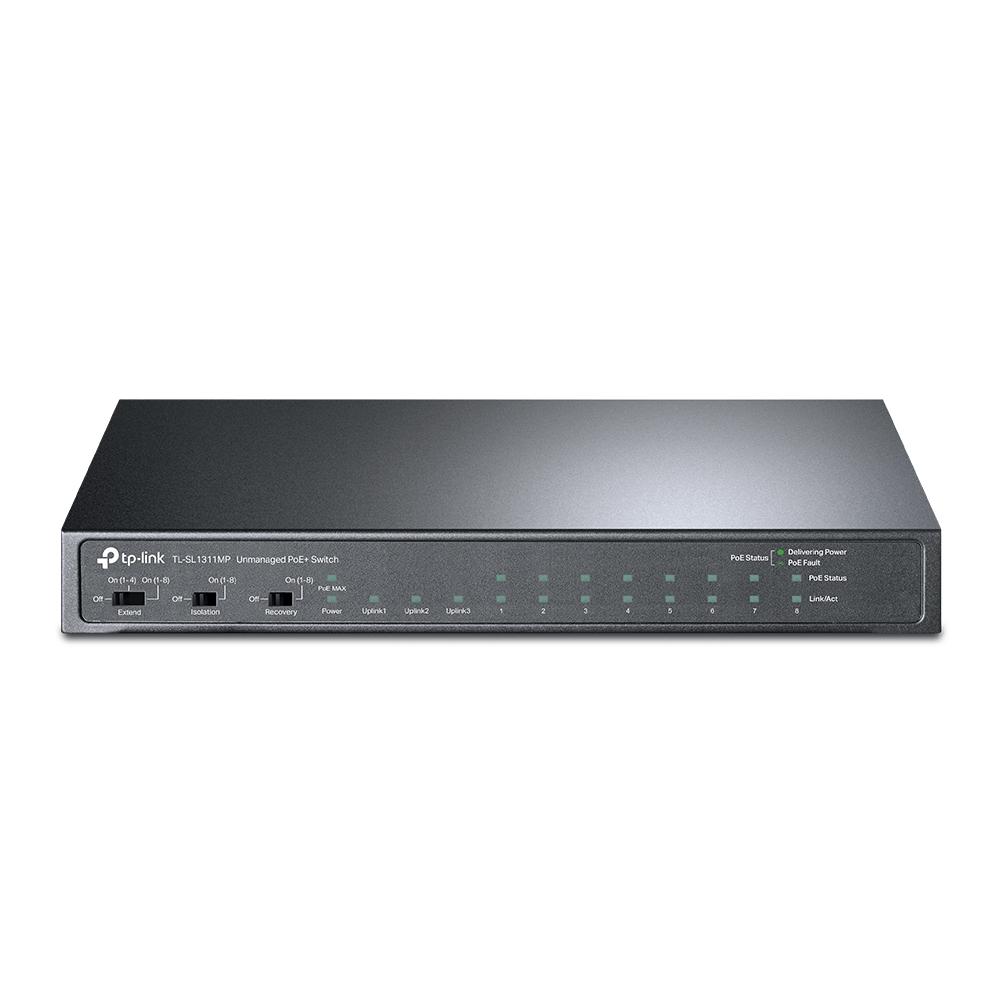

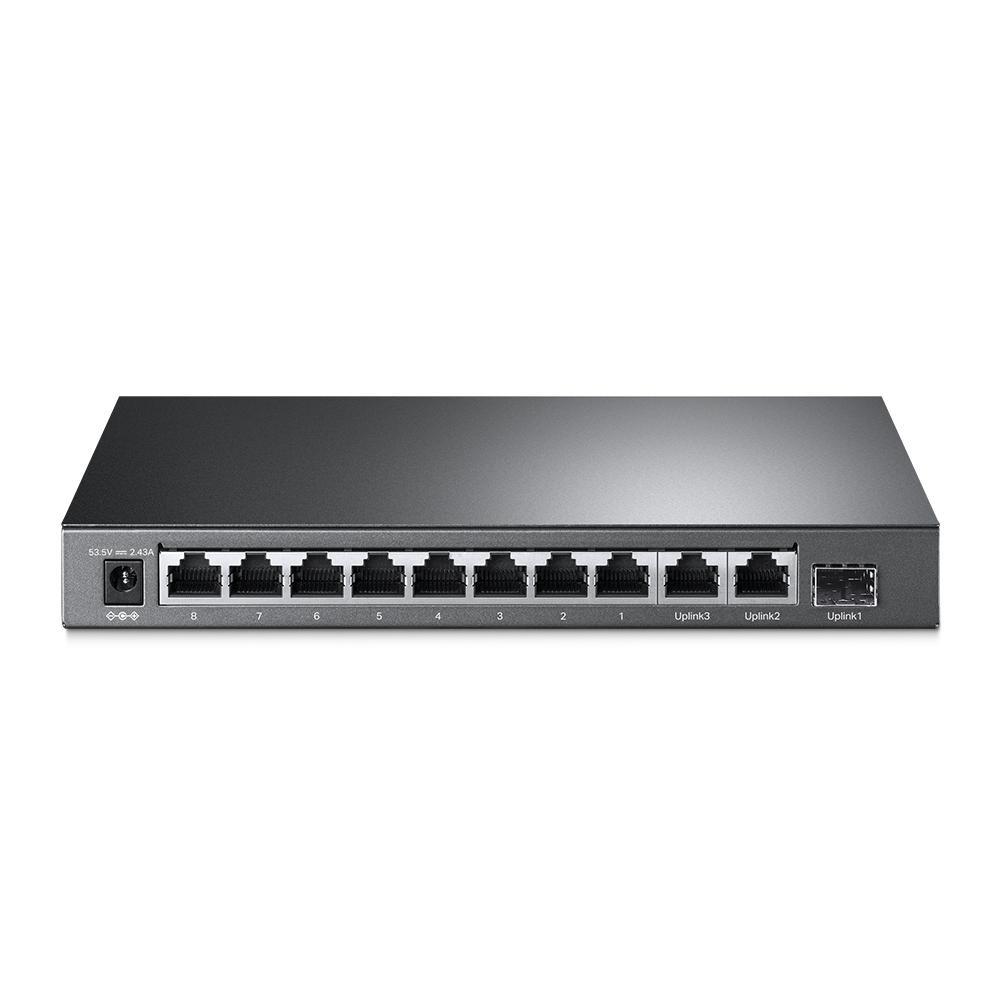

Note: TP-Link TL-SL1311MP is an unmanaged PoE+ switch with 8 × 10/100 Mbps PoE+ ports, 2 × Gigabit RJ45 ports and 1 × Gigabit SFP port. It is designed for IP cameras, access points, IP phones and other PoE devices.
Important: Extend Mode can provide transmission up to 250 m, but the port speed is reduced to 10 Mbps. Actual transmission distance depends on cable quality and PoE device power consumption.
