| Features |
Description |
| Device Type |
5-Port 10G Multi-Gigabit Desktop Switch |
| Network Ports |
5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Switch Type |
Unmanaged Switch |
| Switching Capacity |
100 Gbps |
| Packet Forwarding Rate |
74.4 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
2 Mb |
| Jumbo Frame |
10 KB |
| QoS |
802.1p/DSCP QoS |
| Flow Control |
IEEE 802.3x Flow Control |
| Design |
Fanless Metal Housing |
| Interface |
5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports |
| Port Speed |
100Mbps / 1Gbps / 2.5Gbps / 5Gbps / 10Gbps |
| Auto Negotiation |
Supported |
| Auto MDI/MDIX |
Supported |
| Switching Capacity |
100 Gbps |
| Packet Forwarding Rate |
74.4 Mpps |
| MAC Address Table |
32K |
| Packet Buffer Memory |
2 Mb |
| Jumbo Frame |
10 KB |
| Transmission Method |
Store-and-Forward |
| Flow Control |
IEEE 802.3x Flow Control |
| QoS |
802.1p/DSCP QoS |
| PoE |
Not Supported |
| SMART FEATURES |
| 5-Port 10G |
Provides Five 10Gbps Multi-Gigabit Ethernet Ports for High-Speed Network Connectivity |
| 5-Speed Multi-Gigabit |
Supports 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps with Automatic Speed Negotiation |
| 100Gbps Switching |
Provides Up to 100Gbps Switching Capacity for High-Bandwidth 10G Network Traffic |
| 10G Connectivity |
Suitable for 10G NAS, Servers, Workstations, Gaming PCs, 10G Network Adapters and 2.5G/5G/10G Wi-Fi Access Points |
| 802.1p/DSCP QoS |
Prioritizes Network Traffic to Improve Performance for Delay-Sensitive Applications |
| 802.3x Flow Control |
Provides Reliable Data Transmission by Controlling Network Traffic and Reducing Packet Loss |
| Plug and Play |
Unmanaged Design Requires No Configuration and Allows Immediate Network Deployment |
| Fanless Design |
Fanless Construction Provides Silent Operation Without Fan Noise |
| Flexible Mounting |
Supports Desktop and Wall-Mount Installation |
| GENERAL |
| Switch Type |
Unmanaged 10G Multi-Gigabit Desktop Switch |
| Network Ports |
5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 |
| PoE |
Not Supported |
| Installation Method |
Desktop / Wall Mount |
| Enclosure |
Metal Housing |
| Fan |
Fanless |
| Power Supply |
External Power Adapter, 12VDC / 2.0A |
| Maximum Power Consumption |
21.4 W |
| Dimensions |
226 × 131 × 35 mm |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
10% to 90% RH, Non-Condensing |
| Storage Humidity |
5% to 90% RH, Non-Condensing |
| Certification |
CE, FCC and RoHS |

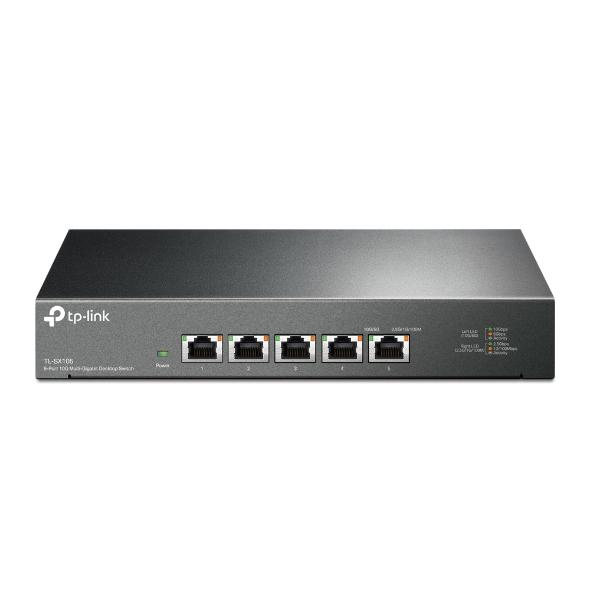

Note: The TP-Link TL-SX105 is a 5-port 10G Multi-Gigabit unmanaged desktop switch featuring 5 × 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 ports, 100 Gbps switching capacity, 74.4 Mpps packet forwarding performance and a 32K MAC address table. It is suitable for 10G NAS, servers, workstations, gaming computers, high-speed Wi-Fi access points and 8K video applications.
Important: The TL-SX105 is an unmanaged switch and does not provide PoE. All five ports support up to 10Gbps and automatically negotiate among five speeds: 100Mbps, 1Gbps, 2.5Gbps, 5Gbps and 10Gbps. The switch uses a fanless metal design and supports desktop or wall-mount installation.
