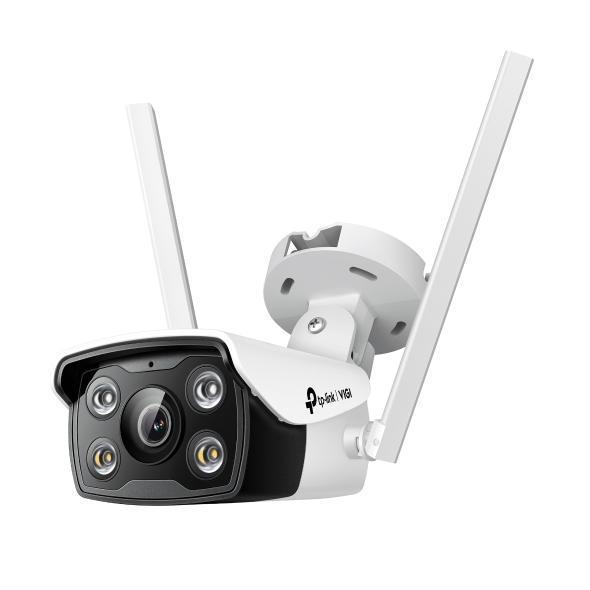

Specifications TP-Link VIGI C340-W
| Features | Description |
|---|---|
| Device Type | 4MP Full-Color Wi-Fi Outdoor Bullet Network Camera |
| Brand / Series | TP-Link / VIGI Professional Surveillance Series |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Maximum Resolution | 4MP (2560 × 1440) @ 30 fps |
| Lens Specifications | 2.8 mm / 4 mm fixed focal lens options |
| Field of View | (2.8mm) Horizontal FOV: 88.8° | Vertical FOV: 48.9° | Diagonal FOV: 106.5° (4mm) Horizontal FOV: 75.2° | Vertical FOV: 40.8° | Diagonal FOV: 88.3° |
| Minimum Illumination | Color: 0.005 Lux; 0 Lux with white light active |
| Night Vision Range | 24/7 Full-Color Illumination / Warm Light up to 30 meters (98 feet) |
| Protection Rating | IP67 Weatherproof Housing |
| VIDEO, WIRELESS & AI PERFORMANCE | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Wireless Connectivity | Wi-Fi IEEE 802.11b/g/n (2.4 GHz) with external dual antennas (Supports AP and AP Client mode) |
| Smart Detection | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, Motion Detection, Tampering |
| Active Defense | Built-in strobe light and siren to actively ward off intruders instantly |
| MANAGEMENT & AUDIO INTERFACES | |
|---|---|
| Management Software | VIGI App, VIGI Security Manager, VIGI Cloud VMS, Web UI |
| Audio Interface | Built-in Microphone and Speaker supporting Two-Way Audio communication |
| Edge Storage | Built-in MicroSD card slot supporting up to 256 GB local storage |
| Integration Support | ONVIF Compliance (Profile S/T) |
| POWER & PHYSICAL SPECIFICATIONS | |
|---|---|
| Power Supply | 12V DC ± 5% (5.5mm Coaxial Power Plug) |
| Power Consumption | Max 7 W |
| Network Interface | 1 × RJ45 10/100M Self-Adaptive Ethernet Port (optional wired connection alongside Wi-Fi) |
| Dimensions & Weight | 188.03 × 78.50 × 71.55 mm | Approx. 0.28 kg (Net) / 0.43 kg (Gross) |
| Operating Environment | -30°C to 60°C (-22°F to 140°F); Humidity: ≤95% (non-condensing) |
Note: The TP-Link VIGI C340-W is a 4MP full-color outdoor bullet network camera featuring flexible 2.4GHz Wi-Fi connectivity and dual external antennas for stable wireless performance. Delivering 24/7 full-color images, smart AI human and vehicle classification, and active defense sirens, it provides intelligent and adaptable perimeter security.
Important: The VIGI C340-W supports both 2.4GHz Wi-Fi networking and an optional wired Ethernet connection. It delivers 4MP Super-HD resolution with 24/7 full-color night vision, features an integrated mic/speaker for two-way audio with active defense, supports local storage via a MicroSD card up to 256 GB, and is housed in an IP67 weatherproof body rated for temperatures from -30°C to 60°C.
