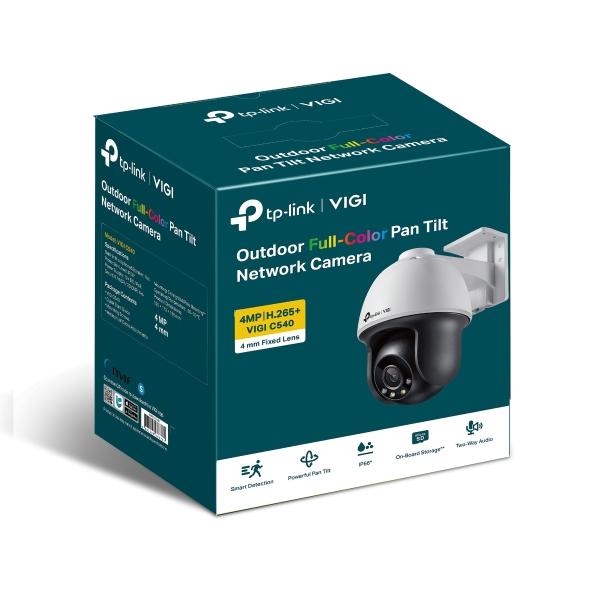

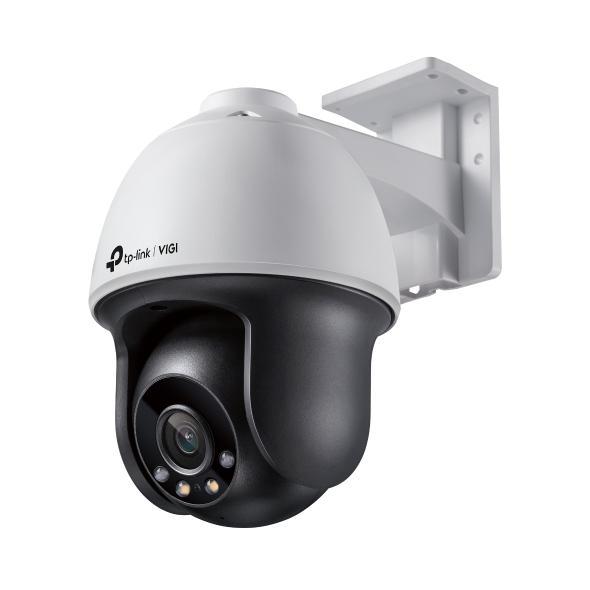

TP-LINK VIGI C540

Why Choose TP-LINK VIGI C540?

4MP High Definition clarity for capturing every detail.
24/7 full-color image quality with a high-sensitivity sensor and integrated spotlight LEDs.
Pan Tilt functionality for automatic tracking and intelligent monitoring powered by AI.
IP66 water and dust resistance ensures outdoor reliability.
Smart Detection for human detection, motion detection, and intrusion alerts sent directly to your app.
H.265+ compression technology for sharp video recording without excess bandwidth usage.
Dual power options: PoE and 12V DC for convenience and ease of installation.
VIGI App for remote setup and monitoring from your smartphone anytime, anywhere.

For more details, visit the official TP-LINK website.

หมวดหมู่: CCTV, TP-LINK CCTV, VIGI Camera ป้ายกำกับ: CCTV, TP-Link

NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	ONVIF
Simultaneous Live View	3 Main Streams & 3 Sub-Streams

GENERAL
Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories (Screws, Drywall Anchors, Hex Key)
Operating Temperature	-30–60 °C
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Dimensions( H X W X D )	120 × 172 × 198 mm
Material	Plastic
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 4)
Power Consumption	12V DC: Max 14W PoE: Class 4

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Lens	Fixed focal lens (2.8 mm / 4 mm / 6 mm)
Aperture	4 mm: F1.6
Lens Mount	M12
Viewing Angle	(4mm) Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
Digital Zoom	Yes
Day/Night Mechanism	IR Cut Filter
IR Working Distance	30m
Illumination Distance	30 m
Minimum Illumination	0 lux with IR/white Light
Pan/Tilt Range	Pan: 0° to 350°, Tilt: 0° to 120°
Weatherproof Rating	IP66
Digital Noise Reduction	3D DNR
WDR	DWDR

VIDEO/IMAGE
Video Compression	Main stream: H.265+/H.265/H.264+//H.264 Sub-Stream: H.265/H.264
Frame Rate & Resolutions	Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560×1440, 2304×1296, 2048×1280, 1920x1080Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640×480, 352×288, 320×240
Video Streaming	Main Stream Sub-Stream
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement	BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

SMART FEATURE-SET
Smart Event	Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event	Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method	Trigger Notification: ONVIF, HTTPS
Region of Interest	1 Region

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input	Built-in Microphone
Audio Output	Built-in Speaker
Button	Reset Button
Slot	Micro SD card
