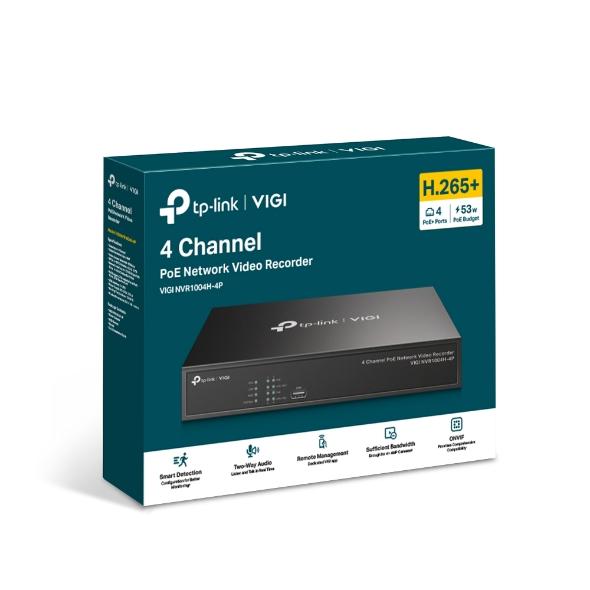

Specifications TP-Link VIGI NVR1004H-4P
| Features | Description |
|---|---|
| Device Type | 4 Channel PoE+ Network Video Recorder (NVR) |
| Video Input | 4-Channel IP Camera Input |
| Maximum Resolution | Up to 8MP (4K) Recording |
| PoE Ports | 4 × 10/100 Mbps PoE+ Ports |
| PoE Budget | 53W Total PoE Power Budget |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 2-ch @ 8MP / 4-ch @ 4MP |
| Playback | 4-Channel Synchronous Playback |
| Storage | 1 × SATA HDD Support Up to 10TB |
| Video Output | HDMI 4K + VGA Output |
| Network | 1 × RJ45 10/100 Mbps Ethernet Port |
| Management | VIGI App / Web Interface / VIGI Security Manager |
| Power Supply | 53.5V DC / 1.31A |
| Video Input | 4-Channel IP Video Input |
|---|---|
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| Recording Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / 720p |
| HDMI Output | 3840 × 2160 @ 30Hz (4K) |
| VGA Output | 1920 × 1080 @ 60Hz |
| DECODING & RECORDING | |
|---|---|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Decoding Capability | 2 Channel @ 8MP / 4 Channel @ 4MP |
| Playback Mode | Instant Playback, Event Playback, Tag Playback, Regular Playback |
| Recording Mode | Manual, Schedule, Motion Detection Recording |
| Backup | USB Backup / Video Clip Export |
| PoE | |
|---|---|
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Ports | 4 × RJ45 10/100 Mbps PoE Ports |
| Total PoE Budget | 53W |
| Maximum Power Per Port | 30W |
| NETWORK | |
|---|---|
| Ethernet | 1 × RJ45 10/100 Mbps Adaptive Ethernet Port |
| Protocols | TCP/IP, DHCP, DNS, NTP, HTTP, HTTPS, RTSP, RTP, UPnP |
| Compatibility | ONVIF / CGI |
| Remote Access | Android, iOS, Web Browser |
| STORAGE & INTERFACE | |
|---|---|
| HDD Interface | 1 × SATA Interface |
| Maximum HDD Capacity | Up to 10TB |
| USB Port | 2 × USB 2.0 |
| Audio Interface | 1 × Audio Input / 1 × Audio Output |
| Video Output | 1 × HDMI / 1 × VGA |
| SMART FEATURES | |
|---|---|
| AI Detection | Human Detection, Vehicle Detection |
| Smart Event | Motion Detection, Line Crossing, Intrusion Detection |
| Alarm | Video Loss, Disk Error, Network Error |
| Remote Monitoring | Mobile App Notification & Remote Viewing |
| GENERAL | |
|---|---|
| Power Supply | 53.5V DC / 1.31A |
| Power Consumption | 4.25W (Without HDD) |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Dimensions | 246.2 × 148.2 × 45 mm |
| Weight | Approx. 1 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link VIGI NVR1004H-4P is a 4-channel PoE+ Network Video Recorder designed for IP surveillance systems. It supports 4K recording, 4 PoE+ ports with 53W power budget, H.265+ video compression, AI detection features, HDMI 4K output, synchronous playback, and HDD storage up to 10TB. Suitable for homes, offices, shops, and small business CCTV installations.
