| Features |
Description |
| Device Type |
8-Channel 1-HDD Network Video Recorder |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Maximum Channels |
Supports up to 8-Channel IP Camera Inputs |
| Decoding Capacity |
1-ch @ 8MP / 2-ch @ 4MP / 4-ch @ 1080p |
| Incoming Bandwidth |
80 Mbps total incoming bandwidth |
| Outgoing Bandwidth |
60 Mbps total outgoing bandwidth |
| Video Outputs |
1 × HDMI and 1 × VGA (Simultaneous or independent video output up to 1080p) |
| Application |
Small-to-medium residential, retail, and commercial security systems requiring multi-channel centralized camera recording |
| RECORDING & STORAGE PERFORMANCE |
| Recording Resolution |
Up to 8MP / 5MP / 4MP / 3MP / 1080p / 720p / D1 |
| Compression Format |
H.265+ / H.265 / H.264+ / H.264 |
| Hard Disk Capacity |
1 × SATA Interface supporting up to 10TB storage capacity (HDD not included) |
| Playback Mode |
8-Channel synchronous playback |
| NETWORK & SYSTEM INTERFACES |
| Network Port |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet LAN Port |
| Network Protocols |
TCP/IP, DHCP, DNS, NTP, UPnP, HTTP, HTTPS, SSL, ONVIF |
| Remote Monitoring |
VIGI App, VIGI Security Manager, Web UI |
| USB Interface |
2 × USB 2.0 ports (for mouse control and video backup) |
| POWER & PHYSICAL SPECIFICATIONS |
| Power Supply |
12V DC / 1.5A external power adapter |
| Power Consumption |
≤10W (without HDD) |
| Dimensions & Weight |
Compact desktop footprint (approx. 246 × 148 × 45 mm) | Weight: approx. 0.5 kg |
| Operating Environment |
-10°C to 55°C (14°F to 131°F); Humidity: 10% to 90% RH |

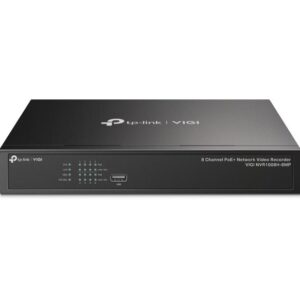

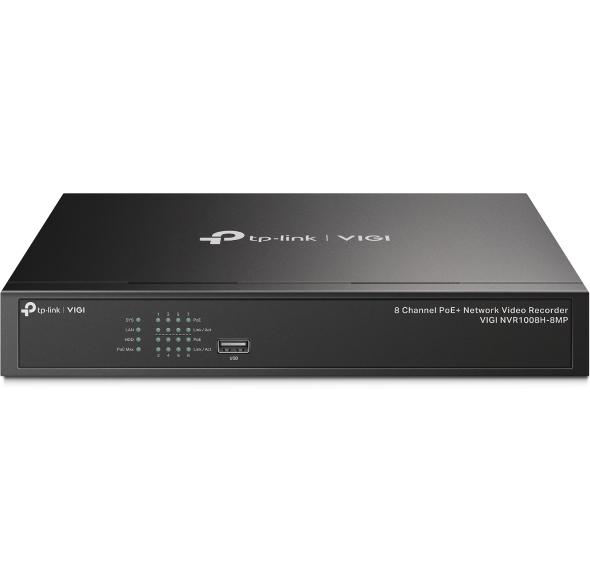

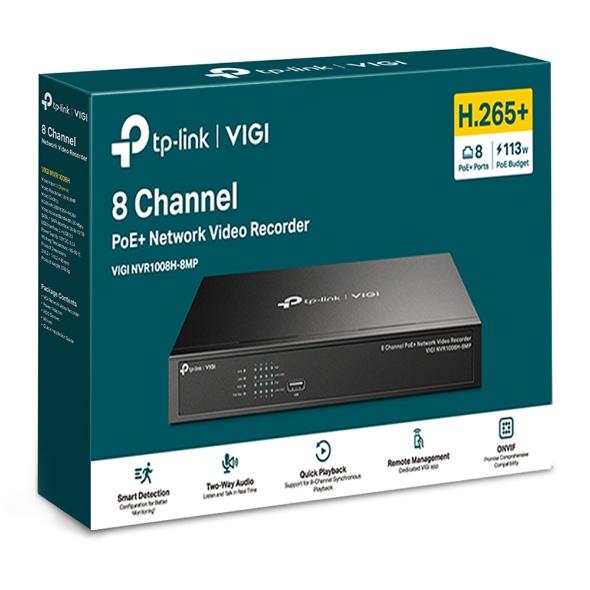

Note: The TP-Link VIGI NVR1008H-8MP is a reliable 8-channel network video recorder designed to manage and record footage from up to eight IP cameras simultaneously. Featuring high-definition support up to 8MP resolution, efficient H.265+ video compression, and centralized remote management via the VIGI app and software ecosystem, it provides a robust solution for medium-scale surveillance setups.
Important: The NVR supports up to 8 camera channels with high-definition decoding up to 8MP. It accommodates 1 SATA hard drive up to 10TB, features 8-channel simultaneous playback, connects via a standard 10/100 Mbps Ethernet port, and is engineered to operate dependably across temperatures from -10°C to 55°C.
