| Features |
Description |
| Device Type |
32-Channel 1.5U 4-HDD Network Video Recorder (NVR) |
| Brand / Series |
TP-Link / VIGI Professional Surveillance Series |
| Decoding Capacity |
2-ch @ 8MP (30 fps) / 8-ch @ 1080P (30 fps) |
| Incoming / Outgoing Bandwidth |
320 Mbps Incoming / 320 Mbps Outgoing Bandwidth |
| Video Outputs |
1 × HDMI (up to 4K / 3840 × 2160) and 1 × VGA Video Output Ports |
| Application |
Medium to large-scale commercial and enterprise security installations requiring multi-channel surveillance, high throughput, and multi-disk storage capacity |
| RECORDING & STORAGE |
| Recording Resolution |
8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF |
| Storage Capacity |
Equipped with 4 SATA interfaces supporting up to 10TB capacity per hard drive (total 40TB max storage) |
| Compression Format |
H.265+ / H.265 / H.264+ / H.264 |
| Playback Capability |
16-Channel Simultaneous Playback |
| NETWORK & INTERFACES |
| Network Interfaces |
2 × RJ45 10/100/1000 Mbps Self-Adaptive Gigabit Ethernet Ports |
| USB Interfaces |
2 × USB 2.0 (Front Panel: 1, Rear Panel: 1) |
| Network Protocols |
TCP/IP, DHCP, DNS, NTP, UPnP, HTTP, HTTPS, SSL/TLS, SMTP, RTSP, SSH, 802.1x |
| Remote Access |
VIGI App, VIGI Security Manager, Web UI |
| AUDIO & ALARM |
| Audio Input / Output |
1-ch, RCA (Linear, 1 KΩ) / 1-ch, RCA (Linear, 600 Ω) |
| Alarm Input / Output |
4-ch Alarm Inputs / 1-ch Alarm Output |
| Two-Way Audio |
Supported (Using audio in/out channels) |
| POWER & GENERAL |
| Power Supply |
100–240V AC, 50/60 Hz |
| Power Consumption |
≤ 10 W (Without Hard Drive) |
| Dimensions |
440 × 330 × 58 mm (1.5U Rack-Mountable Form Factor) |
| Weight |
Approx. 2.22 kg (Without Hard Drives) |
| Operating Temperature |
-10°C to 55°C (14°F to 131°F) |

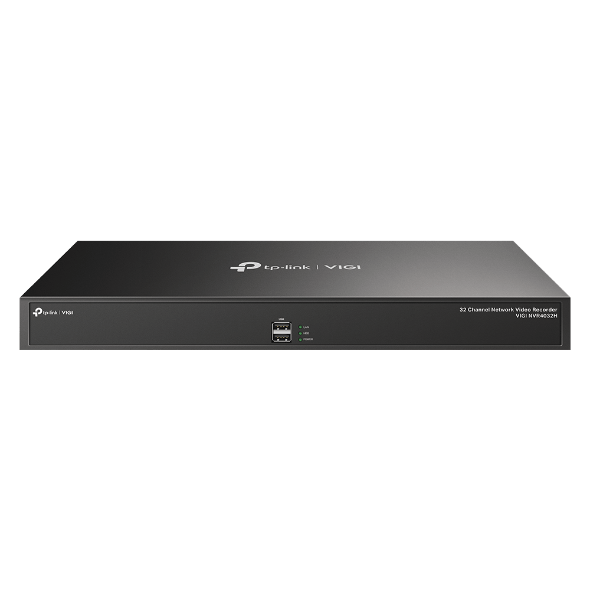

Note: The TP-Link VIGI NVR4032H is a high-performance 32-channel network video recorder designed for scalable professional surveillance environments. It features dual Gigabit network ports, support for up to 4 hard drives (total 40TB capacity), 320 Mbps total bandwidth throughput, and advanced H.265+ compression to ensure smooth, high-definition recording across large multi-camera systems.
Important: The VIGI NVR4032H supports up to 32 camera channels with a 320 Mbps bandwidth limit for stable high-resolution streaming. It includes 4 SATA drive bays accommodating up to 10TB per drive (40TB total storage) and dual Gigabit Ethernet ports for robust network integration. Power is supplied via standard 100–240V AC, and management is fully supported via the VIGI platform ecosystem.
