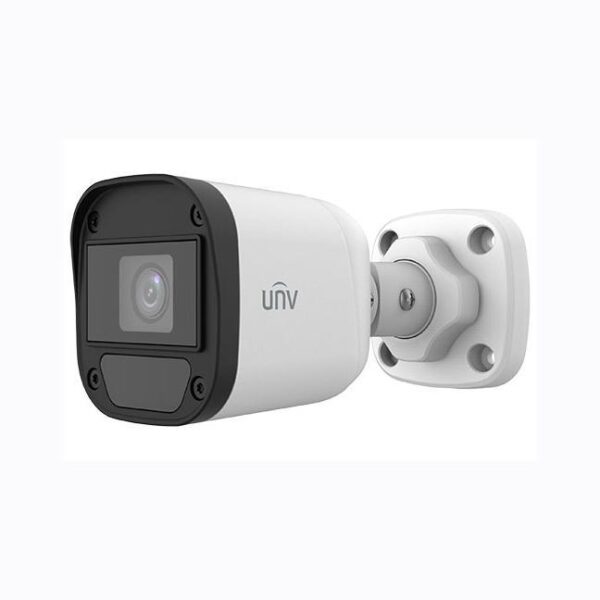

Specifications Uniview UAC-B112-F28(40)
| Features |
Description |
| Product Type |
2MP HD Fixed IR Mini Bullet Analog Camera |
| Image Sensor |
1/3″ CMOS |
| Max. Resolution |
2MP, 1920 × 1080 |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Night Vision |
IR up to 20m |
| Video Output |
TVI / AHD / CVI / CVBS |
| Protection |
IP67 |
| Camera |
| Sensor |
1/3″ CMOS, 2MP |
| Minimum Illumination |
0.02 Lux @ F2.0, AGC ON; 0 Lux with IR ON |
| Day/Night |
Auto / Day / Night |
| ICR |
IR-Cut Filter with Auto Switch |
| Lens & Illuminator |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Lens Mount |
M12 |
| Field of View |
2.8mm: H 90.5° / V 49.6° / D 109.5°
4.0mm: H 80.2° / V 40.7° / D 90.5° |
| IR Illuminator |
1 IR Illuminator |
| IR Distance |
Up to 20m |
| IR Lifetime |
≥60,000 hours |
| Video |
| Resolution |
1080P: 1920 × 1080
720P: 1280 × 720 |
| Frame Rate |
TVI / AHD / CVI: 1080P@25/30fps, 720P@25/30fps |
| CVBS |
PAL / NTSC |
| Shutter |
PAL: 1/25s–1/50000s
NTSC: 1/30s–1/50000s |
| WDR |
DWDR |
| Noise Reduction |
2D DNR |
| Smart IR |
Supported |
| Image |
| Exposure |
Global / BLC / HLC / DWDR |
| White Balance |
Auto / Manual |
| Flip |
180° Horizontal / 180° Vertical |
| OSD |
11 Languages |
| Interface |
| Video Output |
1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface |
5.5mm DC Power Interface |
| Power & Physical |
| Power Supply |
DC 12V ±25% |
| Power Consumption |
Max. 2.88W |
| Dimensions |
142 × 63 × 65mm |
| Material |
Plastic |
| Weight |
135g |
| Environment |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH, Non-condensing |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Certifications |
CB, CE, FCC |
Note: UAC-B112-F28 uses a 2.8mm lens, while UAC-B112-F40 uses a 4.0mm lens. Both models provide 2MP resolution and up to 20m IR night vision.
Important: Specifications may vary by firmware version or product revision. Please refer to the latest Uniview datasheet before installation.
