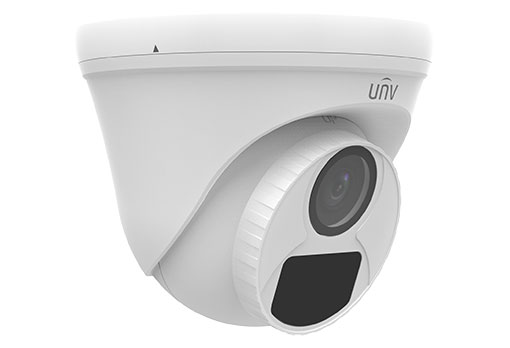

Specifications Uniview UAC-T112-F28(40)-W
| Features |
Description |
| Product Type |
2MP ColourHunter HD Fixed Turret Analog Camera |
| Image Sensor |
1/3″ CMOS |
| Max. Resolution |
2MP, 1920 × 1080 |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Illumination |
White Light up to 20m |
| Video Output |
TVI / AHD / CVI / CVBS |
| Protection |
IP67 |
| Camera |
| Sensor |
1/3″ CMOS, 2MP |
| Minimum Illumination |
0.01 Lux @ F1.6, AGC ON; 0 Lux with White Light ON |
| Day/Night |
24/7 Full-Color Imaging |
| Lens & Illuminator |
| Lens |
2.8mm / 4.0mm Fixed Lens |
| Lens Mount |
M12 |
| Field of View |
2.8mm: H 100.9° / V 56.5° / D 121.8°
4.0mm: H 82.5° / V 42.1° / D 98.6° |
| Illuminator |
1 × White-Light Illuminator |
| Illumination Distance |
Up to 20m |
| Illuminator Lifetime |
≥60,000 Hours |
| Video |
| Resolution |
1080P: 1920 × 1080
720P: 1280 × 720 |
| Frame Rate |
TVI / AHD / CVI: 1080P@25/30fps, 720P@25/30fps |
| CVBS |
PAL / NTSC |
| Shutter Time |
PAL: 1/25s–1/50000s
NTSC: 1/30s–1/50000s |
| Image |
| Exposure Mode |
Global / BLC / HLC / DWDR |
| White Balance |
Auto / Manual |
| Digital Noise Reduction |
2D / 3D DNR |
| WDR |
DWDR |
| Day/Night |
24/7 Full-Color Images |
| Flip |
180° Horizontal / 180° Vertical |
| OSD |
11 Languages |
| Interface |
| Video Output |
1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface |
5.5mm DC Power Interface |
| Power & Physical |
| Power Supply |
DC 12V ±25% |
| Power Protection |
Reverse Polarity Protection and Surge Protection |
| Power Consumption |
Max. 2.4W |
| Mount |
Surface Mount; Optional Backbox / Wall Mount Bracket |
| Dimensions |
Φ118 × 96mm |
| Material |
Plastic |
| Weight |
205g |
| Environment |
| Operating Temperature |
-30°C to 60°C |
| Humidity |
≤95% RH, Non-condensing |
| Surge Protection |
4KV |
| Ingress Protection |
IP67 |
| Certifications |
CB, CE, FCC |
Note: UAC-T112-F28-W uses a 2.8mm lens, while UAC-T112-F40-W uses a 4.0mm lens. Both models provide 2MP resolution, white-light illumination up to 20m, and 24/7 full-color imaging.
Important: Specifications may vary by product revision. Please refer to the latest Uniview datasheet before installation.
