| Features |
Description |
| Product Type |
2MP 33x Starlight Network PTZ Dome Camera |
| Image Sensor |
1/2.8″ Progressive Scan CMOS |
| Effective Pixels |
2 Megapixel |
| Maximum Resolution |
1920 × 1080 |
| Frame Rate |
Up to 60fps |
| Lens |
4.5 ~ 148.5mm Motorized Zoom Lens |
| Optical Zoom |
33x |
| Digital Zoom |
16x |
| Minimum Illumination |
0.001 Lux (Color), 0 Lux with IR |
| WDR |
120dB |
| IR Range |
Up to 150m |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Video Streams |
Triple Streams |
| Video Bit Rate |
128 Kbps ~ 16 Mbps |
| ROI |
Up to 8 Areas |
| Privacy Mask |
Up to 24 Areas |
| Image Enhancement |
2D/3D DNR / BLC / HLC / EIS / Digital Defog |
| Pan Range |
360° |
| Tilt Range |
-15° ~ 90° with Auto Reverse |
| Pan Speed |
0.1°/s ~ 300°/s |
| Tilt Speed |
0.1°/s ~ 80°/s |
| Preset Positions |
1024 Presets |
| Patrol |
Preset Patrol / Route Patrol / Recorded Patrol |
| Audio |
1 Input / 1 Output, Two-Way Audio |
| Alarm I/O |
2 Inputs / 1 Output |
| Network Interface |
1 × RJ45 10/100 Mbps Ethernet |
| Storage |
Micro SD Card up to 256GB |
| Network Storage |
ANR Supported |
| Network Protocols |
IPv4 / IPv6 / TCP / UDP / DHCP / PPPoE / RTP / RTSP / HTTP / HTTPS / FTP / NTP / SNMP / QoS |
| ONVIF |
Profile S / Profile G / Profile T |
| Power Supply |
DC 12V ±25% / PoE+ IEEE 802.3at |
| Power Consumption |
16 ~ 30W |
| Surge Protection |
6kV |
| Ingress Protection |
IP66 |
| Operating Temperature |
-40°C ~ 65°C |
| Operating Humidity |
10% ~ 90% RH, Non-Condensing |
| Dimensions |
Φ220 × 369mm |
| Weight |
Approx. 3.4kg |
| CAMERA & LENS |
| Sensor |
1/2.8″ 2.0MP Progressive Scan CMOS |
| Resolution |
1920 × 1080 |
| Lens |
4.5 ~ 148.5mm Motorized Varifocal Lens |
| Optical Zoom |
33x |
| Digital Zoom |
16x |
| Starlight |
Supported |
| IR |
Smart IR up to 150m |
| WDR |
120dB |
| PTZ |
| Pan |
360° Continuous |
| Tilt |
-15° ~ 90° |
| Pan Speed |
0.1°/s ~ 300°/s |
| Tilt Speed |
0.1°/s ~ 80°/s |
| Preset |
1024 |
| Preset Patrol |
Supported |
| Auto Tracking |
Supported |
| NETWORK & STORAGE |
| Network Port |
1 × RJ45 10/100 Base-TX |
| Video Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Storage |
Micro SD up to 256GB |
| ANR |
Supported |
| ONVIF |
Profile S / Profile G / Profile T |
| POWER & PROTECTION |
| Power |
DC 12V ±25% / PoE+ IEEE 802.3at |
| Power Consumption |
16 ~ 30W |
| Surge Protection |
6kV |
| Ingress Protection |
IP66 |
| Operating Temperature |
-40°C ~ 65°C |
| APPLICATION |
| Outdoor Surveillance |
Outdoor PTZ Security Monitoring |
| Large Area Monitoring |
Wide-Area Surveillance with 33x Optical Zoom |
| Enterprise |
Enterprise and Industrial Security |
| Transportation |
Road and Traffic Monitoring |
| Critical Infrastructure |
Long-Distance Security Monitoring |

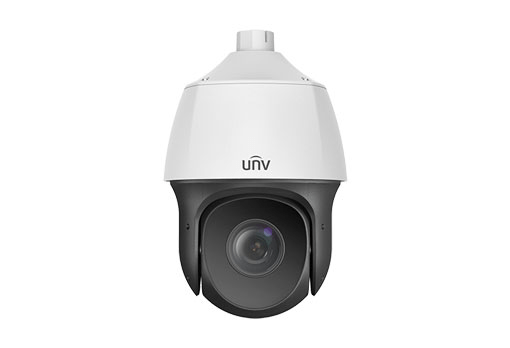

Note: The Uniview IPC6322SR-X33UP-D is a 2MP 33x Starlight Network PTZ Dome Camera featuring a 4.5~148.5mm motorized zoom lens, 33x optical zoom, Smart IR up to 150m, 120dB WDR, Ultra 265 video compression, 360° pan, -15°~90° tilt, Micro SD storage up to 256GB, PoE+ support and IP66 protection. It is designed for outdoor and large-area surveillance applications.
