| Features |
Specifications |
| Product Type |
2MP ANPR Bullet Camera |
| Image Sensor |
1/2.8″ 2MP CMOS |
| Maximum Resolution |
1920 × 1080 |
| Lens |
4.7–47mm Motorized Zoom Lens |
| Minimum Illumination |
0.001 Lux (F1.6) |
| Shutter |
Auto/Manual, 1/25–1/100000s |
| Image Collection |
1080P @ 25/30/50/60fps |
| Video Compression |
H.264 / H.265 |
| WDR |
Supported |
| ROI |
Up to 8 Regions |
ANPR & Intelligent Functions
| Features |
Specifications |
| ANPR |
Built-in Vehicle and License Plate Recognition |
| Application Scenario |
Vehicle Speed ≤30 km/h |
| Vehicle Detection |
Video Detection or Inductive Loop |
| License Plate Recognition |
Supports Recognition of License Plates with Numbers and Letters |
| Vehicle Capture |
Vehicle Head Capture |
| Allowlist / Blocklist |
Up to 20,000 Entries per List |
| Barrier Control |
Supports Barrier Opening Based on Recognition and Vehicle Lists |
| Image OSD |
License Plate Number, Vehicle Information, Camera ID, Allowlist and Custom Information |
Illumination & Storage
| Features |
Specifications |
| IR / White Light |
4 Integrated LEDs, Up to 50m Illumination |
| Day/Night |
Automatic Illumination Control |
| Edge Storage |
Micro SD Card Up to 128GB |
| ANR |
Supported |
| Audio |
1 × Audio Input, 1 × Audio Output |
Network & Interfaces
| Features |
Specifications |
| Network Interface |
1 × 10/100 Mbps RJ45 |
| PoE |
IEEE 802.3at, Class 4 |
| Serial Interface |
1 × RS485 |
| Relay Output |
1 × Relay Output, AC 125V/0.3A or DC 30V/1A |
| Alarm Input |
2 × Inputs, Maximum DC 5V |
| Network Features |
SNMP, UNP, SDK and HTTP Integration |
| Security |
HTTPS, RTSP Authentication, IP Address Filtering and ARP Protection |
General
| Features |
Specifications |
| Power Supply |
DC 12V ±25% / -10% or PoE 802.3at |
| Max. Power Consumption |
20W |
| Dimensions |
386 × 126 × 130 mm |
| Weight |
Approx. 2 kg |
| Operating Temperature |
-40°C to 60°C |
| Operating Humidity |
≤90% RH |
| Ingress Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Mounting |
Wall, Pendant or Pole Mounting |

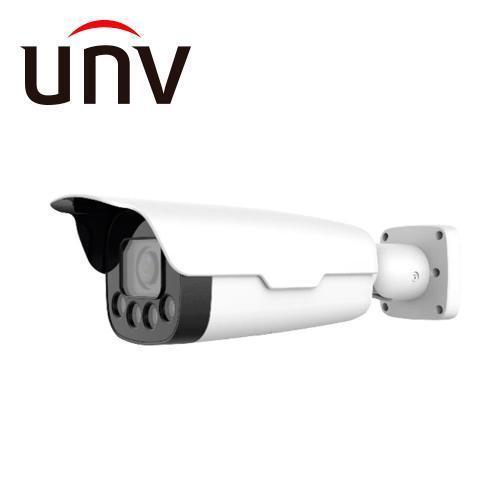

Note: The Uniview HC121 is designed for vehicle license plate recognition at low-speed entrances, exits, parking areas and similar applications.
Important: HC121 is available in IR and White Light versions. Actual configuration and illumination type depend on the specific model suffix.
