| Features |
Description |
| Product Type |
16-Channel 4-HDD 16-PoE 1.5U Network Video Recorder |
| IP Video Input |
16 Channels |
| Maximum Recording Resolution |
Up to 16MP |
| Video Compression |
Ultra 265 / H.265 / H.264 |
| PoE Ports |
16 × RJ45 10/100 Mbps |
| PoE Budget |
150W Total; up to 30W per Port |
| Hard Drive |
4 × SATA, up to 24TB per HDD |
| RAID |
RAID 1 / RAID 5 |
| HDMI Output |
Up to 4K (3840 × 2160) @ 30Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| AI |
Face Detection, Smart Intrusion Prevention, Ultra Motion Detection, AcuSearch, AcuTrack and Video Metadata |
| Alarm |
16 Alarm Inputs / 4 Alarm Outputs |
| DECODING |
| Decoding Format |
Ultra 265 / H.265 / H.264 |
| Smart Off |
2 × 16MP@30 / 2 × 12MP@30 / 4 × 4K@30 / 8 × 4MP@30 / 10 × 3MP@30 / 16 × 1080P@30 |
| Smart On |
2 × 12MP@30 / 2 × 4K@30 / 6 × 4MP@30 / 8 × 3MP@30 / 12 × 1080P@30 / 16 × 720P@30 |
| Audio Compression |
G.711A / G.711U |
| NETWORK |
| Network Interface |
1 × RJ45 10/100/1000 Mbps Self-Adaptive Ethernet Port |
| Incoming Bandwidth |
320 Mbps Smart Off / 160 Mbps Smart On |
| Outgoing Bandwidth |
160 Mbps |
| Maximum Remote Users |
128 |
| Protocols |
TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1X, IPv4, IPv6 |
| VIDEO / AUDIO INPUT |
| IP Video Input |
16 Channels |
| Audio Input |
1 × RCA |
| IP Speaker |
Up to 32 Channels |
| VIDEO / AUDIO OUTPUT |
| HDMI Output |
4K (3840 × 2160) @ 30Hz; 1920 × 1080 @ 60Hz |
| VGA Output |
1920 × 1080 @ 60Hz |
| Audio Output |
1 × RCA |
| Live View Display |
1 / 4 / 6 / 8 / 9 / 16 |
| Corridor Mode |
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16 |
| Two-Way Audio |
1 Channel via RCA Audio Input / Output |
| RECORDING |
| Recording Resolution |
16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback |
16 Channels |
| ANR |
Supported |
| STORAGE |
| SATA |
4 × SATA Interfaces |
| Maximum HDD Capacity |
Up to 24TB per HDD |
| Total Maximum Raw Capacity |
Up to 96TB with 4 × 24TB HDDs |
| Disk Group |
Supported |
| Redundant Storage |
Supported |
| RAID |
RAID 1 / RAID 5 |
| AI & SMART FUNCTIONS |
| Smart by IPC |
All channels, up to 8 images/s total; Face Detection, Vehicle Detection/LPR, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring and People Counting |
| Smart by NVR |
Face Detection, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Analyzer Mode |
AcuSearch / AcuTrack / SIP / UMD; one mode can be active at a time |
| VCA Search |
AcuSearch, AcuTrack, Face Detection Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report and Heat Map |
| AcuSearch |
All channels with UNV SIP/UMD Cameras |
| AcuTrack |
All channels with UNV SIP/UMD Cameras |
| Face Detection by NVR |
Up to 8 channels with UNV Face Detection Cameras; up to 2 channels with normal cameras |
| Search by Image |
Supported |
| SIP by NVR |
Up to 4 channels with normal cameras at 2MP |
| UMD by NVR |
Up to 8 channels with normal cameras at 2MP |
| Vehicle Picture Library |
Up to 5 libraries / 25,000 vehicle pictures total |
| SMART SNAPSHOT STORAGE |
| Face Snapshot Records |
Up to 2 million |
| Vehicle Snapshot Records |
Up to 2 million |
| SIP Records |
Up to 3 million |
| Video Metadata Records |
Up to 2 million |
| POE |
| PoE Ports |
16 × RJ45 10/100 Mbps |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Maximum Power per Port |
30W |
| Total PoE Budget |
150W |
| Plug & Play |
Supported with 16 Independent PoE Network Interfaces |
| ALARM |
| Alarm Input |
16 Channels |
| Alarm Output |
4 Channels |
| INTERFACES |
| Network |
1 × RJ45 10/100/1000 Mbps |
| PoE |
16 × RJ45 10/100 Mbps |
| USB |
1 × USB 2.0 Front / 1 × USB 3.0 Rear |
| RS485 |
1 × RS485 |
| RS232 |
N/A |
| Alarm Input |
16 Channels |
| Alarm Output |
4 Channels |
| HDMI |
1 × HDMI |
| VGA |
1 × VGA |
| Audio Input |
1 × RCA |
| Audio Output |
1 × RCA |
| GENERAL |
| Power Supply |
AC 100–240V |
| Power Switch |
Supported |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
≤90% RH, Non-Condensing |
| Power Consumption |
≤12W, without HDD |
| Form Factor |
1.5U |
| Dimensions |
400 × 368 × 74 mm |
| Weight |
≤4 kg, without HDD |
| Certifications |
CE, FCC, UL, RoHS, WEEE |

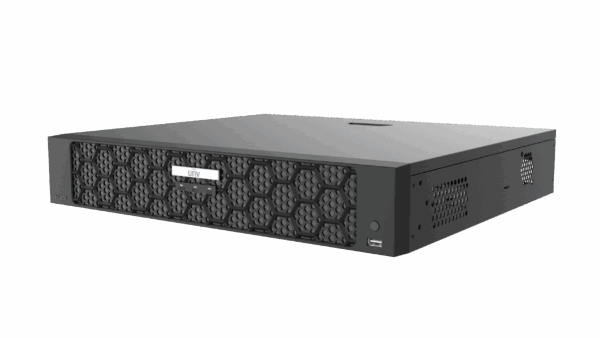

Note: The Uniview NVR504-16B-P16-IQ is a 16-channel 1.5U Network Video Recorder with 16 built-in PoE ports, 4 SATA interfaces, up to 16MP recording, Ultra 265/H.265/H.264 support, RAID 1/5, advanced IQ AI functions, HDMI 4K output, 16 alarm inputs and 4 alarm outputs. The 16 PoE ports support IEEE 802.3af/at with a total PoE budget of 150W.
Important: The NVR has 16 independent PoE ports for Plug & Play camera connection. Each PoE port supports up to 30W, while the total PoE budget is 150W. The separate network interface is Gigabit Ethernet (10/100/1000 Mbps).
