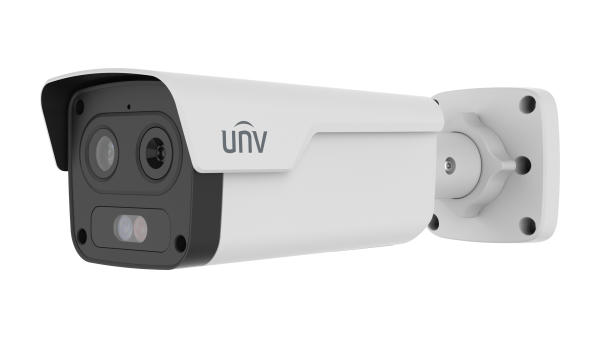

Specifications Uniview TIC2A32SA-F3-4F4AC-I1
| Features | Specifications |
|---|---|
General |
|
| Product Type | Thermal & Optical Dual-Spectrum Bullet Network Camera |
| Model | TIC2A32SA-F3-4F4AC-I1 |
| Camera Type | Thermal and Optical Dual-Channel Camera |
| Video Output | Dual video streams through a single IP address |
| Installation | Outdoor Bullet Camera |
Optical Camera |
|
| Image Sensor | 1/2.8″ CMOS |
| Maximum Resolution | 4 MP, 2688 × 1520 |
| Maximum Frame Rate | 30 fps at 2688 × 1520 |
| Minimum Illumination | Color: 0.003 lux (F1.6, AGC ON); B/W: 0.002 lux (F1.6, AGC ON); 0 lux with IR |
| Lens | Fixed 4 mm |
| Aperture | F1.6 |
| Horizontal Field of View | 74.9° |
| Vertical Field of View | 44.4° |
| Diagonal Field of View | 97.4° |
| Day/Night | IR-Cut Filter with Auto Switch (ICR) |
| IR Distance | Up to 40 m |
| WDR | 120 dB |
| Signal-to-Noise Ratio | More than 56 dB |
Thermal Camera |
|
| Thermal Sensor | Vanadium Oxide Uncooled Focal Plane Array |
| Thermal Resolution | 256 × 192 |
| Maximum Output Resolution | 960P (1280 × 960) |
| Maximum Frame Rate | 30 fps at 1280 × 960 |
| Thermal Lens | Fixed 3.2 mm |
| Thermal Aperture | F1.0 |
| Thermal Pixel Size | 12 μm |
| Thermal Sensitivity (NETD) | Less than 50 mK at F1.0, 25°C |
| Horizontal Field of View | 58.0° |
| Vertical Field of View | 42.5° |
| Diagonal Field of View | 72.0° |
| Temperature Measurement Accuracy | ±8°C or ±8%, whichever is greater |
| Temperature Measurement Range | -20°C to 150°C or 100°C to 550°C, selectable |
| Thermal Image Palettes | White Hot, Black Hot, Iron Oxide Red, Rainbow and other selectable palettes |
Video & Image |
|
| Video Compression | Ultra 265, H.265, H.264 and MJPEG |
| Video Streams | Triple Streams |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | 2D/3D DNR |
| Defog | Digital Defog |
| Privacy Mask | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Picture-in-Picture | Supported |
| Corridor Mode | Supported |
Intelligent Functions |
|
| Smart Intrusion Prevention | Cross Line Detection, Intrusion Detection, Enter Area Detection and Leave Area Detection |
| Object Classification | Human and Vehicle Classification on Thermal Channel; Human, Vehicle and Non-Motor Vehicle Classification on Optical Channel |
| False Alarm Filtering | Supported |
| Fire Detection | Supported on Thermal Channel |
| Fire Detection Distance | Up to 13 m for a 0.1 × 0.1 m target |
| Temperature Detection Distance | Up to 8 m for a 0.1 × 0.1 m target |
| Vehicle Detection Distance (Thermal) | Up to 60 m for a 4 × 1.4 m target |
| Personnel Detection Distance (Thermal) | Up to 30 m for a 1.8 × 0.5 m target |
| Smoke Detection | Supported on Optical Channel |
| Temperature Hot/Cold Spot Tracking | Supported |
| Motion Detection | Supported |
| Camera Tampering Alarm | Supported |
Audio & Active Deterrence |
|
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Two-Way Audio | Supported |
| Audio Compression | G.711U / G.711A |
| Audio Input | 1 Channel |
| Audio Output | 1 Channel |
| Warning Lights | Built-in Red and Blue Warning Lights |
| Audio and Light Alarm | Supported |
Storage & Network |
|
| Local Storage | MicroSD Card, up to 512 GB |
| Network Storage | ANR (Automatic Network Replenishment) |
| Ethernet Interface | 1 × RJ45 10/100 Mbps Base-TX |
| Network Protocols | IPv4/IPv6, TCP, UDP, DHCP, DNS, DDNS, RTSP, RTP, HTTP, HTTPS, FTP, NTP, SNMP and QoS |
| Interoperability | ONVIF Profile S, Profile G, Profile T, API and SDK |
| Maximum Users | 32 Users with Administrator, Common User and Operator Levels |
| Compatible Software | EZStation, UNV-Link and UNV-Link Pro |
| RS-485 | 1 Port |
| Alarm Input | 2 Channels |
| Alarm Output | 2 Channels |
| Video Output | 1 × BNC for Debugging |
Power & Environmental |
|
| Power Supply | DC 12V ±25% or PoE (IEEE 802.3af) |
| Maximum Power Consumption | 12W |
| Surge Protection | 6 kV |
| Ingress Protection | IP67 |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | Up to 95% RH, Non-Condensing |
| Storage Temperature | -40°C to 70°C |
Physical & Certifications |
|
| Dimensions | 269.1 × 95.7 × 85.4 mm |
| Weight | 0.95 kg |
| Reset Button | Supported |
| Real-Time Clock (RTC) | Supported |
| Certifications | CE, FCC, UL, RoHS, WEEE and REACH |
| NDAA Compliance | Supported |
Note: Uniview TIC2A32SA-F3-4F4AC-I1 is a thermal and optical dual-spectrum bullet network camera that combines a 4 MP optical camera with a 256 × 192 thermal sensor. It supports temperature measurement, fire detection, smoke detection, smart intrusion prevention, two-way audio and built-in red/blue warning lights. The camera supports MicroSD storage up to 512 GB, PoE or 12V DC power, and IP67 protection for outdoor surveillance applications.
