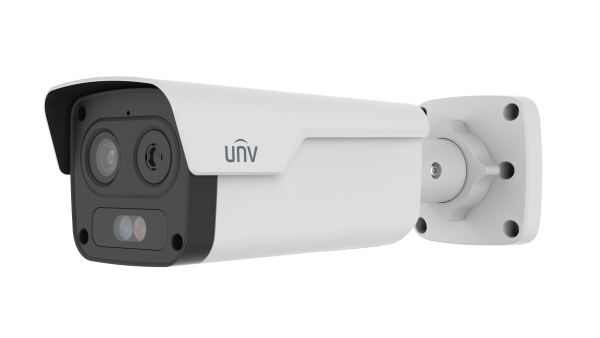

Specifications Uniview TIC2A32SA-F7-4F6AC-I1
| Features | Specifications |
|---|---|
General |
|
| Product Type | Thermal & Optical Dual-spectrum Bullet Network Camera |
| Camera Technology | Thermal imaging and optical imaging |
| Video Channels | Dual video streams from a single IP address |
| Optical Camera Resolution | 4MP (2688 × 1520) |
| Thermal Camera Resolution | 256 × 192 thermal sensor resolution; up to 960P thermal video output |
| Image Sensor (Optical) | 1/2.8″ CMOS |
| Thermal Sensor | Vanadium Oxide (VOx) uncooled focal plane array |
| Thermal Pixel Size | 12 μm |
| Thermal Sensitivity (NETD) | Less than 50 mK at F1.0, 25°C |
Optical Camera |
|
| Minimum Illumination | Color: 0.003 lux (F1.6, AGC ON); B/W: 0.002 lux (F1.6, AGC ON); 0 lux with IR |
| Optical Lens | Fixed 6.0 mm lens |
| Optical Lens Aperture | F1.6 |
| Horizontal Field of View | 49.1° |
| Vertical Field of View | 26.9° |
| Diagonal Field of View | 60.4° |
| Day/Night | IR-cut filter with automatic switch (ICR) |
| IR Wavelength | 750 nm |
| IR Distance | Up to 50 m |
| IR Control | Auto / Manual |
| Wide Dynamic Range | 120 dB WDR |
| Signal-to-Noise Ratio | Greater than 56 dB |
| Shutter | Auto / Manual, 1 s to 1/100,000 s |
Thermal Camera |
|
| Thermal Lens | Fixed 7.0 mm lens |
| Thermal Lens Aperture | F1.0 |
| Horizontal Field of View | 25.2° |
| Vertical Field of View | 19.3° |
| Diagonal Field of View | 31.0° |
| Temperature Detection | Supports temperature detection and cold/hot spot tracking |
| Fire Detection | Supports fire detection and configurable fire shield areas |
| Thermal Shutter | Auto / Manual, 1 s to 1/100,000 s |
Intelligent Functions |
|
| Smart Intrusion Prevention | Cross line, enter area, leave area and intrusion detection |
| Dual-spectrum Analytics | Thermal and optical smart intrusion prevention can operate simultaneously |
| Smoke Recognition | Optical module supports smoke recognition to help verify fire alarms |
| Temperature Alerts | Highlights abnormal temperatures and links temperature events to alarms |
| Picture-in-Picture | Supported |
| Real-time Image Comparison | Supported |
Video and Image |
|
| Maximum Optical Video Resolution | 2688 × 1520 at up to 30 fps |
| Maximum Thermal Video Resolution | 960P at up to 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Streams | Triple streams |
| Region of Interest (ROI) | Up to 8 areas |
| On-screen Display (OSD) | Up to 8 OSDs |
| Privacy Mask | Up to 8 black masks and 8 mosaic masks |
| Digital Noise Reduction | 2D / 3D DNR |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Image Flip | Normal, vertical flip, horizontal flip, 180°, 90° clockwise and 90° counterclockwise |
| U-Code | Supported |
Audio and Alarm |
|
| Built-in Microphone | Supported |
| Built-in Speaker | Supported |
| Audio Input / Output | 1 input / 1 output |
| Alarm Input / Output | 2 inputs / 2 outputs |
| Visual Warning | Built-in red and blue warning lights |
| Audio and Light Alarm | Supported |
Network and Storage |
|
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Memory Card | MicroSD card slot, supports up to 512 GB |
| Serial Interface | 1 × RS485 |
| Thermal Video Output | Supported |
| Client Software | EZStation, EZLive, EZView |
Power and Electrical |
|
| Power Supply | 12 V DC ±25% or PoE (IEEE 802.3af) |
| Power Connector | Ø 5.5 mm coaxial power plug |
| Surge Protection | 6 kV |
Physical and Environmental |
|
| Dimensions | 269.1 × 95.7 × 83 mm |
| Weight | Approximately 0.95 kg |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Ingress Protection | IP67 |
Note: Actual performance and supported functions may depend on firmware, configuration, installation conditions and compatible recording or monitoring equipment.
