| Features |
Description |
| Product Type |
2MP Fixed IR Bullet Analog Camera |
| Resolution |
2MP (1920 × 1080) |
| Image Sensor |
1/3″ CMOS |
| Lens |
Fixed 2.8 mm Lens |
| Lens Mount |
M12 |
| Angle of View |
Horizontal 90.5° / Vertical 49.6° / Diagonal 109.5° |
| IR Distance |
Up to 20 m |
| Video Output |
TVI / AHD / CVI / CVBS via BNC |
| Frame Rate |
1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| Audio |
Built-in Microphone, audio transmission via coaxial cable |
| Protection |
IP67 |
| CAMERA |
| Image Sensor |
1/3″ CMOS |
| Pixel |
2MP |
| Minimum Illumination |
0.02 Lux (F2.0, AGC ON); 0 Lux with IR ON |
| Day/Night |
Auto / Day / Night |
| IR-Cut Filter |
ICR with Auto-Switch |
| LENS |
| Lens Type |
Fixed Focal Lens |
| Focal Length |
2.8 mm |
| Lens Mount |
M12 |
| Horizontal FOV |
90.5° |
| Vertical FOV |
49.6° |
| Diagonal FOV |
109.5° |
| ILLUMINATOR |
| IR Illuminator |
1 IR Illuminator |
| IR Wavelength |
850 nm |
| IR Distance |
Up to 20 m |
| IR Lifetime |
≥ 60,000 hours |
| Smart IR |
Supported |
| VIDEO |
| Resolution |
1080P: 1920 × 1080 / 720P: 1280 × 720 |
| TVI |
1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| AHD |
1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| CVI |
1080P @ 25fps / 30fps; 720P @ 25fps / 30fps |
| CVBS |
PAL / NTSC |
| Shutter Speed |
PAL: 1/25s–1/50000s; NTSC: 1/30s–1/50000s |
| Exposure Mode |
Global / BLC / HLC / DWDR |
| Digital Noise Reduction |
2D / 3D DNR |
| White Balance |
Auto / Manual |
| WDR |
DWDR |
| Flip |
180° Horizontal / 180° Vertical |
| Defog |
N/A |
| AUDIO |
| Microphone |
Built-in Microphone |
| Audio Transmission |
Via Coaxial Cable |
| Audio Support |
TVI 1080P @ 25fps / 30fps; CVI 1080P @ 25fps / 30fps |
| INTERFACE |
| Video Output |
1 × BNC, TVI / AHD / CVI / CVBS |
| Power Interface |
5.5 mm DC Power Interface |
| Power Supply |
DC 12V ±25% |
| GENERAL |
| Material |
Plastic |
| Protection |
IP67 |
| Operating Temperature |
-30°C to 60°C |
| Operating Humidity |
≤95% RH, Non-Condensing |
| Surge Protection |
4 kV |
| Power Consumption |
Max. 2.2W |
| Dimensions |
142 × 63 × 65 mm |
| Weight |
135 g |
| Mounting |
Surface Mount; Optional Backbox and Pole Mount Bracket |
| OSD Languages |
11 Languages |
| Certifications |
CE, FCC, RoHS, WEEE |

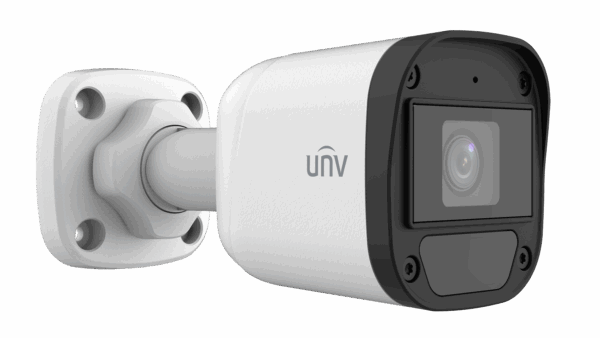

Note: The Uniview UAC-B112-AF28 is a 2MP Fixed IR Bullet Analog Camera featuring a 1/3″ CMOS sensor, 2.8 mm fixed lens, 1080P resolution, TVI/AHD/CVI/CVBS video output, 20 m IR illumination, built-in microphone, DWDR, 2D/3D noise reduction and IP67 protection. It supports DC 12V power and coaxial audio transmission.
Important: This is an Analog Camera, not an IP network camera. Video is transmitted through BNC coaxial cable and supports TVI / AHD / CVI / CVBS. The built-in microphone can transmit audio through the coaxial cable when used with a compatible DVR.
