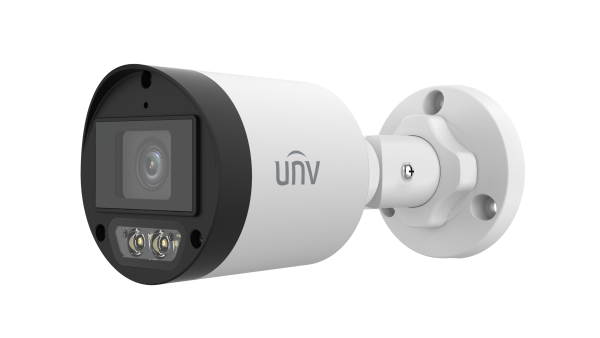

Specifications Uniview UAC-B125-AF28M-W
| Features | Specifications |
|---|---|
General |
|
| Product Type | 5MP ColorHunter HD Fixed Mini Bullet Analog Camera |
| Model | UAC-B125-AF28M-W |
| Camera Series | Whale Series |
| Camera Technology | Analog HD |
| Image Sensor | 1/2.7-inch CMOS |
| Maximum Resolution | 5 Megapixels |
| Minimum Illumination | 0.005 Lux (F1.4, AGC ON); 0 Lux with White Light On |
| Day/Night | 24/7 Color Imaging |
Lens |
|
| Lens Type | Fixed-Focal Lens |
| Focal Length | 2.8 mm |
| Lens Mount | M12 |
| Horizontal Field of View | 111.5° |
| Vertical Field of View | 58.9° |
| Diagonal Field of View | 134.8° |
Illumination |
|
| Illuminator Type | White Light |
| Number of Illuminators | 2 |
| Illumination Distance | Up to 40 m |
| Illuminator Lifetime | At Least 60,000 Hours |
| Night Vision | Full-Color Imaging with White Light Illumination |
Video & Image |
|
| Maximum Resolution Modes | 2880 × 1620 at 25 fps; 2592 × 1944 at 20 fps or 12.5 fps |
| 4MP Resolution | 2560 × 1440 |
| 1080P Resolution | 1920 × 1080 |
| TVI Frame Rate | 5MP at 20 fps (default), 5MP at 12.5 fps, 4MP at 25/30 fps, 1080P at 25/30 fps |
| AHD Frame Rate | 5MP at 20 fps, 4MP at 25/30 fps, 1080P at 25/30 fps |
| CVI Frame Rate | 5MP at 25 fps, 4MP at 25/30 fps, 1080P at 25/30 fps |
| CVBS | PAL / NTSC |
| Shutter Speed | PAL: 1/25–1/50000 s; NTSC: 1/30–1/50000 s |
| Exposure Modes | Global, BLC, HLC and DWDR |
| Wide Dynamic Range | DWDR |
| Digital Noise Reduction | 2D DNR |
| White Balance | Auto / Manual |
| Image Flip | 180° Horizontal Flip and 180° Vertical Flip |
| OSD Menu | On-Screen Display Configuration Menu Supporting 11 Languages |
Audio |
|
| Built-in Microphone | Yes |
| Audio Transmission | Audio Transmission via Compatible Coaxial Cable Connection |
| TVI Audio Support | 5MP at 20/12.5 fps, 4MP at 25/30 fps and 1080P at 25/30 fps |
| CVI Audio Support | 5MP at 25 fps and 4MP at 25/30 fps |
Interfaces |
|
| Video Output | BNC |
| Supported Video Formats | TVI / AHD / CVI / CVBS |
| Power Interface | 5.5 mm DC Power Connector |
Power & Environmental |
|
| Power Supply | DC 12V ±25% |
| Maximum Power Consumption | 3.28W |
| Surge Protection | 4 kV for Power and Video Output Interfaces |
| Ingress Protection | IP67 |
| Operating Temperature | -30°C to 60°C |
| Operating Humidity | Up to 95% RH, Non-Condensing |
Physical Specification |
|
| Housing Material | Metal |
| Dimensions | 157 × 67 × 66 mm |
| Weight | 279 g |
| Mounting | Surface Mounting with 3D Bracket; Optional Junction Box |
Note: Uniview UAC-B125-AF28M-W is a 5MP ColorHunter analog bullet camera featuring a 1/2.7-inch CMOS sensor and a 2.8 mm fixed lens with a 111.5° horizontal field of view. It supports TVI, AHD, CVI and CVBS video formats, 24/7 color imaging with white light illumination up to 40 m, and a built-in microphone for audio transmission over compatible coaxial connections. The camera features IP67 protection and operates on DC 12V power.
