| Features |
Description |
| Product Type |
8-Channel Hybrid Digital Video Recorder |
| Analog Video Input |
8 × BNC |
| IP Video Input |
2 Channels |
| Maximum IP Channels |
Up to 10 Channels |
| Supported Cameras |
TVI / AHD / CVI / CVBS / IP |
| IP Camera Resolution |
Up to 6 MP per channel |
| Video Compression |
H.265 / H.264 |
| Analog Camera Resolution |
Up to 1080P @ 30 fps for AHD / TVI / CVI |
| Recording & Decoding |
Description |
| Recording Resolution |
1080P Lite / 720P / D1 |
| Recording Frame Rate |
1080P Lite @ 15 fps; 720P @ 15 fps |
| Decoding Capability |
Analog: 8 × 1080P Lite @ 15 fps / 8 × 720P @ 15 fps; IP: 1 × 6MP @ 20 fps / 2 × 1080P @ 30 fps |
| Incoming Bandwidth |
24 Mbps, up to 40 Mbps after analog channel conversion |
| Outgoing Bandwidth |
64 Mbps |
| Synchronous Playback |
Up to 8 Channels |
| Video & Audio Output |
Description |
| HDMI Output |
1 × HDMI, up to 1920 × 1080 @ 60 Hz |
| VGA Output |
1 × VGA, up to 1920 × 1080 @ 60 Hz |
| Display Output |
HDMI and VGA simultaneous output |
| Audio |
Audio over Coaxial Cable, TVI Cameras |
| Two-Way Audio |
Not Supported |
| Smart Function |
Description |
| Ultra Motion Detection |
Supported on 8 Channels |
| VCA Search |
Behavior Search |
| Motion Detection |
Supported |
| Analog Camera Upgrade |
Supported over Coaxial Cable |
| Dual-Light Control |
Supported for UNV TVI Analog Cameras |
| Network & Storage |
Description |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Network Protocols |
TCP/IP / P2P / UPnP / NTP / DHCP / HTTP / HTTPS / DNS / DDNS / SMTP |
| Remote Users |
Up to 128 |
| SATA |
1 × SATA Interface |
| Maximum HDD Capacity |
Up to 6 TB |
| USB |
2 × USB 2.0 |
| ONVIF |
Supported |
| RTSP |
Supported |
| General |
Description |
| Power Supply |
12 VDC / 1.5 A |
| Power Consumption |
≤ 10 W, Without HDD |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-Condensing |
| Dimension |
190 × 202 × 42 mm |
| Weight |
≤ 0.6 kg, Without HDD |
| Certification |
CE / FCC / UL / RoHS / WEEE |

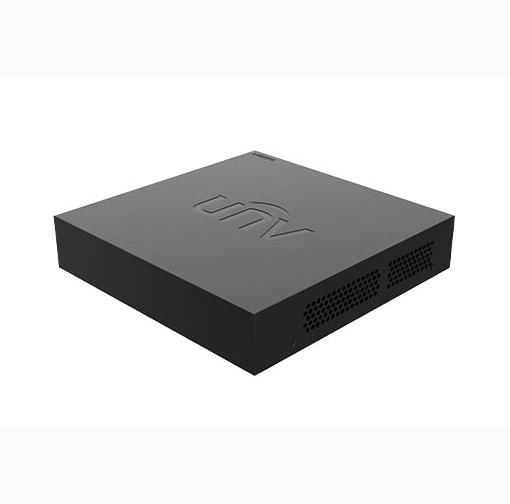

Note: The Uniview XVR301-08F is an 8-channel hybrid digital video recorder supporting TVI, AHD, CVI, CVBS, and IP cameras. It provides 8 BNC inputs, supports up to 10 IP channels in total, H.265/H.264 compression, 1080P Lite recording, Ultra Motion Detection on 8 channels, 1 SATA interface for up to 6 TB HDD, HDMI/VGA simultaneous output, and ONVIF/RTSP compatibility.
