| Features |
Description |
| Product Type |
8-Channel Hybrid Digital Video Recorder |
| Analog Video Input |
8-ch BNC |
| IP Video Input |
4-ch, expandable up to 12-ch |
| Analog Camera Support |
AHD / TVI / CVI / CVBS |
| Maximum Analog Resolution |
Up to 8MP |
| Maximum IP Resolution |
Up to 8MP |
| Video Compression |
H.265 / H.264 |
| HDD |
1 × SATA, up to 8TB |
| Video & Audio Input |
| AHD Input |
8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| TVI Input |
8MP@15fps, 3K@20fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVI Input |
8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps |
| CVBS Input |
Supported |
| BNC Audio Input |
8-ch Channel Audio |
| RCA Audio Input |
1-ch |
| Audio Compression |
G.711U |
| Audio over Coaxial |
Supported for TVI Cameras |
| Recording & Decoding |
| Recording Resolution |
8MP Lite / 3K Lite / 5MP Lite / 4MP Lite / 1080P / 720P / D1 |
| 8MP Lite Recording |
Up to 8fps |
| 3K Lite Recording |
Up to 12fps |
| 5MP Lite Recording |
Up to 12fps |
| 4MP Lite Recording |
Up to 15fps |
| 1080P Recording |
Up to 15fps |
| 720P Recording |
Up to 30fps |
| Analog Decoding |
8 × 8MP Lite@8fps / 8 × 3K Lite@12fps / 8 × 5MP Lite@12fps / 8 × 4MP Lite@15fps / 8 × 1080P@15fps |
| IP Decoding |
1 × 8MP@30fps / 2 × 4MP@30fps / 4 × 1080P@30fps |
| Two-Way Audio |
1-ch via RCA Audio Input and Output |
| Display & Output |
| HDMI Output |
Up to 3840 × 2160 @ 30Hz |
| VGA Output |
Up to 1920 × 1080 @ 60Hz |
| CVBS Output |
1-ch BNC |
| Audio Output |
1-ch RCA |
| HDMI / VGA |
Simultaneous Output |
| Live View Display |
1 / 4 / 6 / 8 / 9 / 16 Split |
| Synchronous Playback |
8-ch |
| Network & Smart Functions |
| Network Interface |
1 × RJ45 10/100 Mbps Self-Adaptive Ethernet |
| Incoming Bandwidth |
40 Mbps, up to 56 Mbps after analog channel conversion |
| Outgoing Bandwidth |
64 Mbps |
| Remote Users |
Up to 128 |
| Protocols |
TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| ONVIF |
Supported |
| RTSP |
Supported |
| Smart Detection |
| Smart Functions |
Smart Intrusion Prevention, Cross Line Detection, Enter Area, Leave Area, Ultra Motion Detection |
| SIP Channels |
2-ch |
| UMD Channels |
8-ch |
| VCA Search |
Supported |
| Face Search |
Supported |
| Behavior Search |
Supported |
| General Alarm |
Motion Detection |
| System Alerts |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, HDD Space Low, HDD Full, Recording/Snapshot Abnormal |
| Storage & Interface |
| HDD Interface |
1 × SATA |
| Maximum HDD Capacity |
Up to 8TB |
| USB |
2 × USB 2.0, Rear Panel |
| RS-485 |
1 × RS-485 |
| Alarm Input |
4-ch |
| Alarm Output |
1-ch |
| Snapshot |
| Snapshot Mode |
FTP / Schedule / Event Snapshot |
| Snapshot Channels |
8-ch |
| Maximum Snapshot Resolution |
704 × 576 |
| Power & Physical |
| Power Supply |
12 VDC / 2A |
| Power Consumption |
≤ 10W without HDD |
| Dimensions |
260 × 226 × 47 mm |
| Weight |
≤ 1.1 kg without HDD |
| Installation |
Desktop / Rack Mount |
| Environment & Certification |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
≤ 90% RH, Non-condensing |
| Certifications |
CE, FCC, UL, RoHS, WEEE |

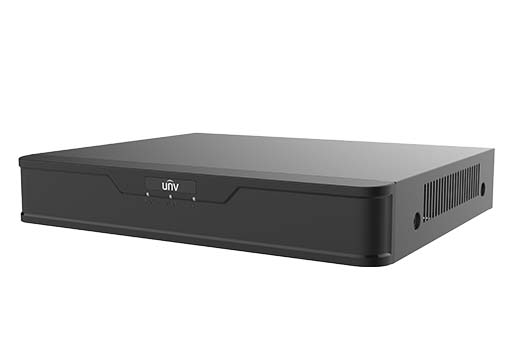

Note: The UNV XVR301-08Q3 is an 8-channel hybrid digital video recorder supporting AHD, TVI, CVI, CVBS and IP cameras. It supports up to 8MP analog cameras, up to 12 IP channels and 4K HDMI output.
Important: The XVR301-08Q3 supports 8 analog channels and 4 native IP channels, expandable to 12 IP channels after analog channel conversion. Maximum IP decoding is 8MP, while analog recording supports up to 8MP Lite at 8fps.
