| Product |
| Product Type |
4-Channel High Definition Video Decoder |
| Application |
Professional network video decoding and video wall display management |
| Video Output Channels |
4 × HDMI |
| Video Input Channels |
2 × HDMI, video only |
| Video Output |
| HDMI Output Resolution |
3840 × 2160 @ 60 Hz, 3840 × 2160 @ 30 Hz, 1920 × 1080 @ 60 Hz, 1600 × 1200 @ 60 Hz, 1440 × 900 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1024 × 768 @ 60 Hz |
| Maximum Output Resolution |
Up to 4K UHD (3840 × 2160) @ 60 Hz |
| Video Input |
| HDMI Input Resolution |
1920 × 1080 @ 60 Hz, 1920 × 1080 @ 50 Hz, 1600 × 1200 @ 60 Hz, 1440 × 900 @ 60 Hz, 1280 × 1024 @ 60 Hz, 1280 × 720 @ 60 Hz, 1280 × 720 @ 50 Hz, 1024 × 768 @ 60 Hz |
| Video Decoding |
| Decoding Format |
H.265, H.264, MPEG4, MPEG2, MJPEG |
| Decoding Capability |
4 × 3840 × 2160 @ 30 fps, 16 × 1920 × 1080 @ 30 fps, 36 × 1280 × 720 @ 30 fps, 64 × D1 @ 30 fps |
| Maximum Decoding Resolution |
Up to 8 MP per video stream |
| Display Split |
1 / 2 / 3 / 4 / 6 / 7 / 9 / 16 split-screen layouts |
| Video Wall Display |
Supports up to 4 video wall display units |
| Network Video |
Supports standard ONVIF video streams and multicast transmission |
| Interface |
| Audio Input |
2-channel, reserved |
| Audio Output |
1 × 3.5 mm audio output |
| Alarm Input |
6-channel, reserved |
| Alarm Output |
3-channel, reserved |
| Serial Interface |
1 × RS-232, 1 × RS-485 |
| Network Interface |
1 × RJ45 10/100/1000 Mbps adaptive Ethernet port |
| USB |
1 × USB 3.0 |
| General |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Power Consumption |
20 W maximum |
| Product Dimensions |
440 × 44 × 339 mm (W × H × D) |
| Weight |
3.28 kg |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% RH, non-condensing |

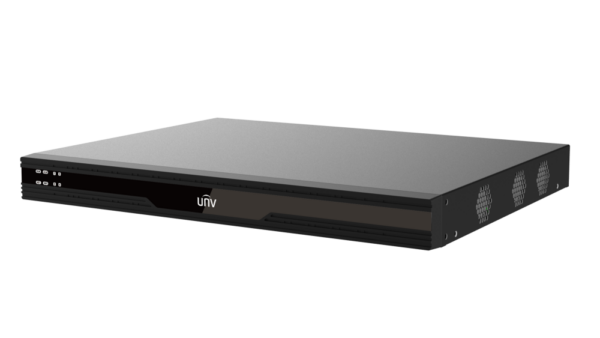

Note: The Uniview DC5504-E-V2 is a 4-channel high-definition video decoder designed for professional surveillance display and video wall applications. It provides 4 × HDMI outputs supporting up to 3840 × 2160 @ 60 Hz, together with 2 × HDMI inputs. It supports H.265, H.264, MPEG4, MPEG2, and MJPEG decoding, with a decoding capability of up to 4 × 4K, 16 × 1080P, 36 × 720P, or 64 × D1.
Important: The DC5504-E-V2 is a video decoder, not an NVR. It supports 1/2/3/4/6/7/9/16 split-screen layouts, standard ONVIF video streams, multicast transmission, and up to 4 video wall display units.
