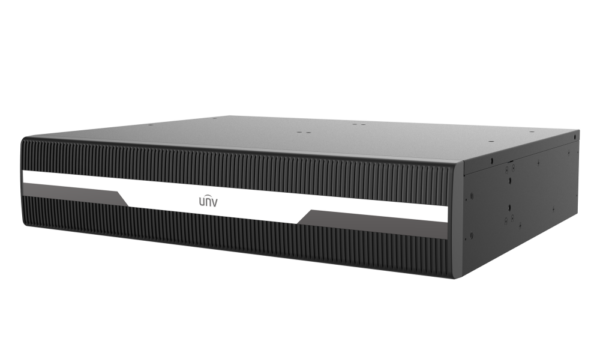

Specifications Uniview DMC9000-2U-V3
| Product | |
|---|---|
| Product Type | 2U Video Wall Controller |
| Architecture | FPGA-based image processing architecture with embedded Linux operating system for stable 24/7 operation |
| Service Board Slots | 4 slots |
| Mixed Insertion | Supported, allowing input and output boards to be flexibly installed |
| Video Input & Output | |
|---|---|
| Input Board Type | 4-channel HDMI, 8-channel HDMI, 4-channel DVI-D, 2-channel HDMI (4K) |
| Output Board Type | 4-channel HDMI, 8-channel HDMI, 4-channel DVI-D |
| 4K Input | Supported through 2-channel HDMI (4K) input board |
| Output Synchronization | Fully synchronized output |
| Screen Control | |
|---|---|
| Window Roaming & Overlay | Up to 32 windows per video signal interface, with flexible window roaming across the video wall |
| Window Management | Up to 32 windows per video signal interface, with window resources shared among all signal interfaces |
| One-Click Layout | One-click creation of M × N or fixed video wall layouts |
| Multiple Video Walls | Up to 4 video walls with different configurations per device |
| Scene Management | Up to 64 scenes |
| Seamless Switching | Supported |
| Control Interface | |
|---|---|
| HDMI Input | 2 × HDMI input interfaces |
| HDMI Output | 1 × HDMI output interface (reserved) |
| Audio Interface | 1 × 3.5 mm audio input (reserved), 1 × 3.5 mm audio output |
| USB | 1 × USB 2.0, 1 × USB 3.0 |
| Serial Interface | 1 × RS232, 1 × RS485 |
| Network Interface | 1 × Gigabit Ethernet |
| Control | 1 × Power interface, 1 × RST key |
| Performance | |
|---|---|
| Signal Delay | <105 ms |
| Output Sync | Fully synchronized |
| Power Failure Protection | Retains current running services and video wall layout and restores them after restart |
| General | |
|---|---|
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | <100 W, fully loaded; <20 W host consumption |
| Product Dimensions | 442 × 356 × 88 mm (W × H × D) |
| Weight | 7.3 kg |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 0%–95%, non-condensing |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 0%–95%, non-condensing |
Note: The Uniview DMC9000-2U-V3 is a 2U modular video wall controller designed for professional video wall applications. It provides 4 service board slots with flexible mixed input/output board installation, supporting HDMI, DVI-D, and 4K HDMI input configurations. The controller supports window roaming, overlay, M × N video wall layouts, up to 4 independently configured video walls, and up to 64 scenes.
Important: The DMC9000-2U-V3 is a modular video wall controller chassis, not a conventional NVR or video decoder. Its actual signal input/output capacity depends on the optional boards installed in the four service slots. It supports fully synchronized output, seamless switching, and signal delay of less than 105 ms.
