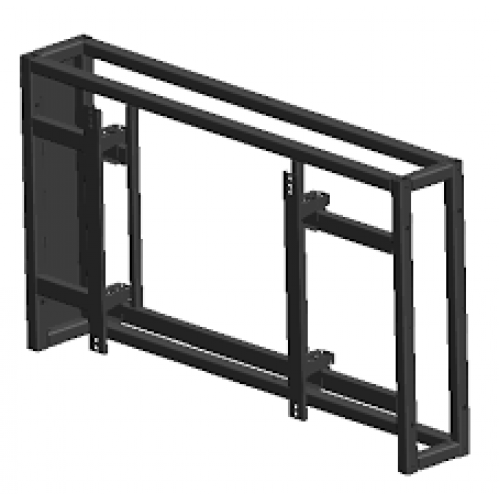

Specifications Uniview HB-2555-P1H10-C
| Product | |
|---|---|
| Product Type | 55-inch LCD Video Wall Pedestal / Vertical Support Bracket Base |
| Application | Pedestal for 55-inch LCD video wall, designed for modular floor mounting |
| Compatible Display Size | 55-inch LCD video wall |
| Bezel Compatibility | 1.7 mm / 1.8 mm bezel LCD video wall |
| Mounting Type | Modular floor mounting |
| Construction | |
|---|---|
| Material | Square steel + Sheet metal |
| Color | Black |
| Structure | Vertical support bracket base designed to provide stable floor support for LCD video wall installations |
| Dimensions & Height | |
|---|---|
| Base Size | 1212 × 300 × 960 mm (W × H × D) |
| Base Height | 100–110 cm adjustable |
| Package Dimensions | 1240 × 320 × 980 mm (W × H × D) |
| Weight | 26.6 kg |
| Optional Configurations | |
|---|---|
| Height Options | HB-2555-P1H06-C: 60–70 cm adjustable HB-2555-P1H08-C: 80–90 cm adjustable HB-2555-P1H10-C: 100–110 cm adjustable |
Note: The Uniview HB-2555-P1H10-C is a 55-inch LCD video wall pedestal / vertical support bracket base designed for modular floor mounting. It is constructed from square steel and sheet metal, supports a height adjustment range of 100–110 cm, and has a base size of 1212 × 300 × 960 mm. The bracket is designed for 55-inch LCD video wall displays with approximately 1.7–1.8 mm bezel.
Important: The HB-2555-P1H10-C is a floor-mounted pedestal/support base, not an LCD display. The P1 series is designed for 1.7/1.8 mm bezel video walls, while the H10 configuration provides an adjustable height of 100–110 cm.
