| General |
| Product Type |
Network Control Keyboard |
| Screen Size |
10.1-inch capacitive touch screen |
| Screen Resolution |
1280 × 800 |
| Joystick |
Four-dimensional joystick for PTZ camera control |
| Maximum Channels |
Up to 5,000 channels |
| Decoding |
| Decoding Format |
H.264 / H.265 |
| Decoding Capability |
1 × 3840 × 2160 @ 25 fps, 4 × 1920 × 1080 @ 30 fps, or 8 × 1280 × 720 @ 30 fps |
| Split Screen |
1 / 4 / 9 split-screen layouts, supporting simultaneous display of up to 8 channels |
| Video Output |
| HDMI Output |
1 × HDMI output interface |
| Output Resolution |
1920 × 1080 @ 60 Hz |
| Audio Output |
1 × standard 3.5 mm audio jack, reserved |
| Control & Interface |
| Network Interface |
1 × RJ45 10/100 Mbps adaptive Ethernet interface |
| Serial Interface |
1 × RS232 (DB9, reserved), 1 × RS485 half-duplex (reserved) |
| USB |
1 × USB interface for device upgrade and mouse connection |
| PTZ Control |
Pan, tilt, zoom, and focus control via 4D joystick |
| Network Devices |
Supports connection to Uniview IPCs and NVRs through the network |
| Power & Environmental |
| Power Supply |
DC 12 V |
| Max. Power Consumption |
< 15 W |
| Operating Temperature |
-10°C to 40°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Storage Temperature |
-40°C to 60°C |
| Dimensions & Weight |
| Product Dimensions |
449.7 × 178.6 × 115.4 mm (W × D × H) |
| Weight |
1.4 kg |

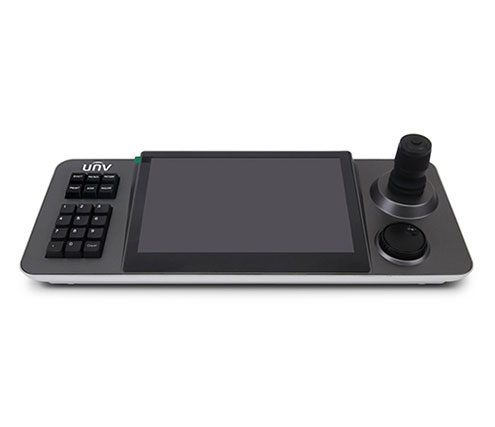

Note: The Uniview KB-2100 is a network control keyboard featuring a 10.1-inch capacitive touch screen and a 4D joystick for centralized control of Uniview IPCs, NVRs, and PTZ cameras. It supports up to 5,000 channels, H.264/H.265 decoding, and can decode up to 1 × 4K, 4 × 1080P, or 8 × 720P video streams. It also provides HDMI output for displaying video on an external monitor.
Important: The KB-2100 is a network control keyboard with an integrated touch display and video decoding capability, rather than a conventional keyboard. It supports 4D PTZ control, simultaneous viewing of up to 8 channels, and USB-based firmware upgrades.
