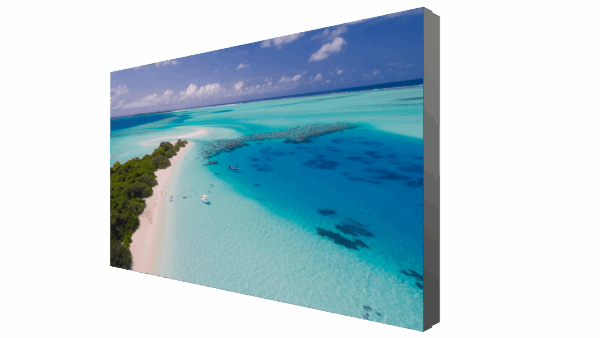

Specifications Uniview MW-A46-B5-E2
| Features | Specifications |
|---|---|
| Product Type | 46″ LCD Video Wall Display |
| Panel Size | 46″ |
| Bezel Width | 0.44mm (T/L), 0.44mm (B/R) |
| Resolution | 1920 × 1080 Pixels |
| Display Size | 1018.08 × 572.67mm |
| Panel Type | ADS |
| Backlight | DLED |
Optical
| Item | Specifications |
|---|---|
| Brightness | 500 cd/m² |
| Contrast Ratio | 1200:1 |
| Color Support | 16.7 Million Colors |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Response Time | 8ms |
| Refresh Rate | 60Hz |
| Color Gamut | 72% NTSC |
| Pixel Density | 48ppi |
| Pixel Pitch | 0.53 × 0.53mm |
| Surface Treatment | Haze 25%, 2H, Front Polarizer |
Interface
| Item | Specifications |
|---|---|
| Video Input | 1 × HDMI, 1 × DVI, 1 × VGA, 1 × CVBS, 1 × DP |
| Video Output | 1 × HDMI |
| Other Interfaces | 1 × USB 2.0, 2 × RS232, 1 × IR Interface, 1 × Button |
| OSD Language | English, Simplified Chinese |
Electrical
| Item | Specifications |
|---|---|
| Input Voltage | AC 100 ~ 240V, 50/60Hz |
| Typical Power Consumption | 140W |
General
| Item | Specifications |
|---|---|
| Operation Hour | 24/7 |
| Product Dimensions (W × H × D) | 1019.26 × 573.75 × 119.13mm |
| Package Dimensions (W × H × D) | 1152 × 731 × 222mm |
| Net Weight | 20kg |
| Gross Weight | 23.7kg |
| Operating Temperature | 0°C ~ 40°C |
| Operating Humidity | 20% ~ 90% RH, Non-Condensing |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 10% ~ 90% RH, Non-Condensing |
| Color Temperature | 10000K |
| Material | SECC |
| Lifetime | 50,000 Hours |
| MTBF | 50,000 Hours |
Note: The MW-A46-B5-E2 is a 46″ LCD video wall display featuring a 1920 × 1080 resolution, 0.44mm bezel width, 500 cd/m² brightness, 178° viewing angle, 24/7 operation and multiple video inputs including HDMI, DVI, VGA, CVBS and DP.
Important: Specifications are based on the official UNV MW-A46-B5-E2 product page and dedicated datasheet.
