| Display |
| Product Type |
22-inch IT Monitor |
| Backlight |
LED |
| Panel Size |
22 inches |
| Panel Type |
VA |
| Pixel Pitch |
0.24 × 0.24 mm |
| Resolution |
1920 × 1080 pixels, Full HD |
| Color Support |
16.7 million colors |
| Brightness |
250 cd/m² |
| Contrast Ratio |
3000:1 |
| Refresh Rate |
100 Hz |
| Response Time |
5 ms |
| Viewing Angle |
178° horizontal / 178° vertical |
| Color Gamut |
72% NTSC |
| Surface Treatment |
Haze 25%, 3H anti-glare surface |
| Operation Hours |
18/7 |
| Interface |
| HDMI Input |
1 × HDMI, supports up to 1920 × 1080 @ 100 Hz |
| VGA Input |
1 × VGA, supports up to 1920 × 1080 @ 60 Hz |
| Mounting |
| VESA Mounting |
75 × 75 mm |
| Wall-Mounted Thread |
4 × M4 threaded holes, 8 mm deep |
| OSD |
| Multi-Language |
Chinese, English, German, French, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Japanese, and Korean |
| General |
| Power Supply |
DC 12 V, 2 A |
| Typical Power Consumption |
≤22 W |
| Standby Power Consumption |
≤0.5 W |
| Dimensions Without Pedestal |
492.70 × 284.00 × 41.20 mm (W × H × D) |
| Dimensions With Pedestal |
492.70 × 379.40 × 168.60 mm (W × H × D) |
| Package Dimensions |
598 × 366 × 99 mm (W × H × D) |
| Weight |
Net: 2.18 kg, Gross: 3.12 kg |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10%–85% RH, non-condensing |
| Storage Temperature |
-20°C to 60°C |
| Storage Humidity |
5%–90% RH, non-condensing |
| Material |
Plastic |
| Lifetime |
30,000 hours |
| MTBF |
50,000 hours |
| Certifications |
CE, FCC |

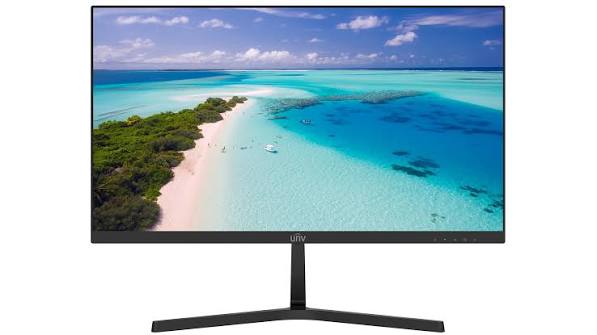

Note: The Uniview MW-LC22-E is a 22-inch Full HD IT monitor featuring a VA panel, 1920 × 1080 resolution, 250 cd/m² brightness, 3000:1 contrast ratio, and a 100 Hz refresh rate. It provides a 178° viewing angle and 5 ms response time for smooth and clear image display.
Important: The MW-LC22-E is an IT monitor suitable for office, home, PC, and general display applications. It provides 1 × HDMI and 1 × VGA video inputs, supports 75 × 75 mm VESA mounting, operates at 18/7, and uses a DC 12 V, 2 A power supply.
