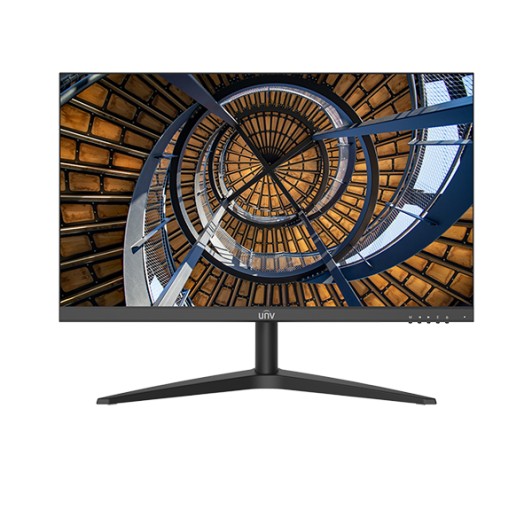

Specifications Uniview MW-LC24-E
| Display | |
|---|---|
| Product Type | 24-inch IT Monitor |
| Backlight | LED |
| Panel Size | 24 inches |
| Panel Type | VA |
| Pixel Pitch | 0.27 × 0.27 mm |
| Resolution | 1920 × 1080 pixels, Full HD |
| Color Support | 16.7 million colors |
| Brightness | 250 cd/m² |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 100 Hz |
| Response Time | 5 ms |
| Viewing Angle | 178° horizontal / 178° vertical |
| Color Gamut | 72% NTSC |
| Surface Treatment | Haze 25%, 3H anti-glare surface |
| Operation Hours | 18/7 |
| Interface | |
|---|---|
| HDMI Input | 1 × HDMI, supports up to 1920 × 1080 @ 100 Hz |
| VGA Input | 1 × VGA, supports up to 1920 × 1080 @ 60 Hz |
| Mounting | |
|---|---|
| VESA Mounting | 75 × 75 mm |
| Wall-Mounted Thread | 4 × M4 threaded holes, 8 mm deep |
| General | |
|---|---|
| Power Supply | DC 12 V, 2.0 A |
| Typical Power Consumption | ≤25 W |
| Standby Power Consumption | ≤0.5 W |
| Dimensions Without Pedestal | 539.20 × 320.40 × 41.30 mm (W × H × D) |
| Dimensions With Pedestal | 539.20 × 416.10 × 168.60 mm (W × H × D) |
| Package Dimensions | 612 × 405 × 101 mm (W × H × D) |
| Weight | Net: 2.82 kg, Gross: 3.84 kg |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–85% RH, non-condensing |
| Storage Temperature | -20°C to 60°C |
| Storage Humidity | 5%–90% RH, non-condensing |
| Material | Plastic |
| Lifetime | 30,000 hours |
| MTBF | 50,000 hours |
| Certifications | CE, FCC |
Note: The Uniview MW-LC24-E is a 24-inch Full HD IT monitor featuring a VA panel, 1920 × 1080 resolution, 250 cd/m² brightness, 4000:1 contrast ratio, and a 100 Hz refresh rate. It provides a 178° viewing angle and 5 ms response time for smooth and clear image display.
Important: The MW-LC24-E is an IT monitor suitable for office, home, PC, and general display applications. It provides 1 × HDMI and 1 × VGA video inputs and supports 75 × 75 mm VESA mounting. The monitor operates at 18/7 and uses a DC 12 V, 2 A power supply.
