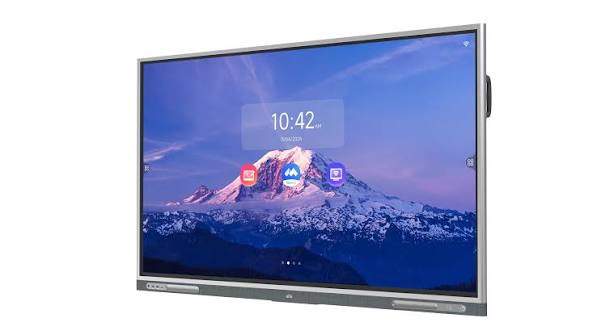

Specifications Uniview MW3565-U-E2
| Display |
| Product Type |
65-inch 4K Smart Interactive Display |
| Backlight |
DLED |
| Panel Size |
65 inches |
| Resolution |
3840 × 2160 pixels, 4K UHD |
| Display Size |
1428.48 × 803.52 mm |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1200:1 |
| Response Time |
8 ms |
| Color Support |
1.07 billion colors |
| Viewing Angle |
178° horizontal / 178° vertical |
| Refresh Rate |
60 Hz |
| Pixel Pitch |
0.37 × 0.37 mm |
| Color Gamut |
72% |
| Glass |
4 mm single-side anti-glare tempered glass |
| Surface Hardness |
9H (7 on the Mohs scale) |
| Haze Value |
25% |
| Lifespan |
50,000 hours |
| Touch |
| Touch Technology |
Infrared touch |
| Touch Control |
Up to 40-point multi-touch (Windows: 40-point, Android: 32-point) |
| Touch Precision |
±1 mm |
| Touch Response Time |
≤2 ms (frame rate >500 Hz) |
| Minimum Touch Object |
2 mm |
| System |
| CPU |
4 × A76 at 2.4 GHz + 4 × A55 at 1.8 GHz |
| CPU Frequency |
2.4 GHz |
| RAM |
8 GB |
| Storage |
128 GB |
| Operating System |
Android 13.0 |
| Interface |
| Video Input |
2 × HDMI 2.0, 1 × DisplayPort, 1 × VGA, 1 × YPbPr, 1 × USB Type-C with DisplayPort support |
| Video Output |
1 × HDMI, 1 × DisplayPort |
| Audio Input |
1 × PC Audio 3.5 mm, 1 × LINE IN 3.5 mm, 1 × MIC 3.5 mm / Earphone shared interface |
| Audio Output |
1 × Earphone 3.5 mm, 1 × LINE OUT 3.5 mm, 1 × SPDIF digital audio output |
| USB |
4 × USB 3.0, 1 × USB Type-B, 1 × USB Type-C, 2 × Front USB 3.0, 1 × Front USB Type-C |
| Control Interface |
1 × RS232 |
| Storage Interface |
1 × TF Card Slot |
| Network Interface |
2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet ports |
| Audio |
| Speaker |
Left channel: 1 × treble 5 W + 1 × bass 12 W
Right channel: 1 × treble 5 W + 1 × bass 12 W |
| Total Speaker Power |
34 W total, 17 W per channel |
| Wi-Fi & Bluetooth |
| Wi-Fi |
Wi-Fi 6 + Wi-Fi 5, supports 2.4 GHz and 5 GHz |
| Wi-Fi Coverage |
Up to 30 m² |
| Wi-Fi Transmission Distance |
Up to 20 m in open space |
| Bluetooth |
Bluetooth 5.2, up to 10 m transmission distance in open space |
| OSD |
| Multi-Language |
Supports 27 languages including Simplified Chinese, Traditional Chinese, English, Japanese, Arabic, French, Spanish, Portuguese, German, Italian, Dutch, Polish, Korean, Vietnamese, Thai, Russian, Ukrainian, Hungarian, Croatian, and Romanian |
| Mounting |
| VESA Mounting |
500 × 400 mm |
| Wall Mount Screw |
4 × M8 screw holes |
| General |
| Power Supply |
AC 100–240 V, 50/60 Hz |
| Overall Power Consumption |
≤220 W without OPS |
| Standby Power Consumption |
<0.5 W |
| Product Dimensions |
1498 × 905 × 89 mm (W × H × D) |
| Package Dimensions |
1632 × 1081 × 222 mm (W × H × D) |
| Weight |
Net: 40.5 kg, Gross: 49 kg |
| Operating Temperature |
0°C to 50°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Storage Temperature |
-20°C to 60°C |
| Storage Humidity |
0%–95% RH, non-condensing |
| Accessories |
| Included Accessories |
1 × Power Cable, 2 × Touch Pen, 1 × Quick Guide, 1 × Infrared Remote Control, 1 × Wall Mount Bracket |
Note: The Uniview MW3565-U-E2 is a 65-inch 4K UHD Smart Interactive Display featuring a DLED panel, 3840 × 2160 resolution, 350 cd/m² brightness, 1200:1 contrast ratio, 60 Hz refresh rate, Android 13.0, and an octa-core processor with 8 GB RAM and 128 GB storage. It supports infrared touch with up to 40-point multi-touch on Windows and 32-point touch on Android.
Important: The MW3565-U-E2 provides 2 × HDMI 2.0, 1 × DisplayPort, 1 × VGA, 1 × YPbPr, and 1 × USB Type-C with DP video inputs, HDMI/DisplayPort outputs, dual Gigabit LAN ports, Wi-Fi 6 + Wi-Fi 5, Bluetooth 5.2, and a 34 W four-driver speaker system. It supports 500 × 400 mm VESA mounting and has a maximum power consumption of ≤220 W without OPS.
