Specifications Uniview MW7730-FO-D

Module
Pixel Pitch	P 3.076
Module Resolution (W × H)	104 × 52 pixels
Module Dimensions (mm)	320 × 160 mm

Cabinet
Cabinet Dimensions (W × H × D)	960 × 960 × 137 ± 2 mm
Cabinet Resolution (W × H)	312 × 312 pixels
Material	SPCC 1.2 mm metal cabinet
Weight	35 kg per cabinet
Maintenance	Rear maintenance design

Single Pixel Brightness Correction	Supported
Single Pixel Color Correction	Supported
Brightness (nits)	5000 nits standard; 5000–10000 nits optional
Color Temperature (K)	10000 to 15000
Viewing Angle (H/V)	120° horizontal / 120° vertical
Center Distance Deviation of LED	<3%
Brightness Uniformity	≥97%
Color Uniformity (Cx, Cy)	±0.003
Contrast Ratio	3000:1

Processing Performance
Pixel Density (pixels/m²)	105,625
Grayscale	14-bit
Scanning Mode	13S
Drive Mode	Constant current driving
Refresh Rate (Hz)	≥3840 Hz

Electrical
Power Supply	AC 100–240 V
Average Power Consumption	240 W/m²
Maximum Power Consumption	800 W/m²

Environmental
Ingress Protection	IP65
Operating Temperature	-20°C to +50°C
Operating Humidity	10%–90% RH, non-condensing
Storage Temperature	-40°C to +60°C
Storage Humidity	10%–90% RH, non-condensing
LED Lifetime	50,000 hours

Certification
Certifications	CE, FCC

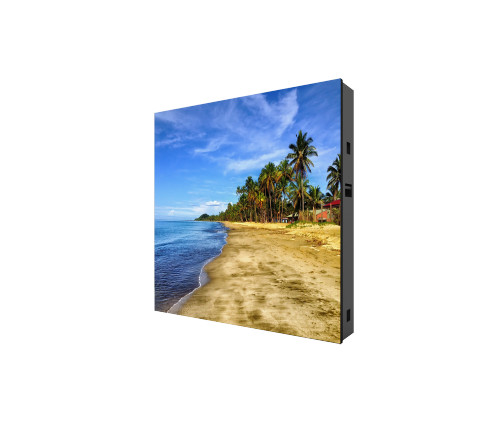

Note: The Uniview MW7730-FO-D is a P3.076 Outdoor Fixed LED Display designed for large-scale outdoor digital signage and advertising applications. It features a 3.076 mm pixel pitch, 5000 nits standard brightness, 14-bit grayscale, ≥3840 Hz refresh rate, 120° × 120° viewing angle, and a durable SPCC metal cabinet with IP65 protection.

Important: The MW7730-FO-D uses a 960 × 960 mm cabinet with 312 × 312 pixel resolution and supports 5000 nits standard brightness, with 5000–10000 nits optional brightness. It supports rear maintenance, AC 100–240 V power input, average power consumption of 240 W/m², maximum power consumption of 800 W/m², IP65 protection, and an LED lifetime of 50,000 hours.
