Specifications Uniview MW7780-FO-D

Module
Pixel Pitch	P8, 8 mm pixel pitch
Module Resolution	40 × 20 pixels
Module Dimensions	320 × 160 mm

Cabinet
Cabinet Dimensions	960 × 960 × 138.6 ± 2 mm (W × H × D)
Cabinet Resolution	120 × 120 pixels
Material	SPCC 1.2 mm metal cabinet
Weight	39 ± 1 kg per cabinet
Maintenance	Rear maintenance design

Optical
Brightness	5500 nits standard; 7000 nits optional with golden wire
Contrast Ratio	3000:1 with copper wire; 5000:1 optional with golden wire; 6000:1 optional with golden wire highlight
Color Temperature	3500 K to 9300 K
Viewing Angle	120° horizontal / 120° vertical
Center Distance Deviation of LED	≤3%
Brightness Uniformity	≥97%
Color Uniformity	Cx, Cy: ±0.003

Processing Performance
Pixel Density	15,625 pixels/m²
Grayscale	14-bit
Scanning Mode	2S
Drive Mode	Constant current driving
Refresh Rate	3840 Hz

Electrical
Power Supply	AC 100–240 V
Average Power Consumption	300 W/m²
Maximum Power Consumption	800 W/m²

Environmental
Ingress Protection	IP65
Operating Temperature	-20°C to +50°C
Operating Humidity	10%–90% RH, non-condensing
Storage Temperature	-40°C to +60°C
Storage Humidity	10%–90% RH, non-condensing
LED Lifetime	50,000 hours

Certification
Certifications	CE, FCC

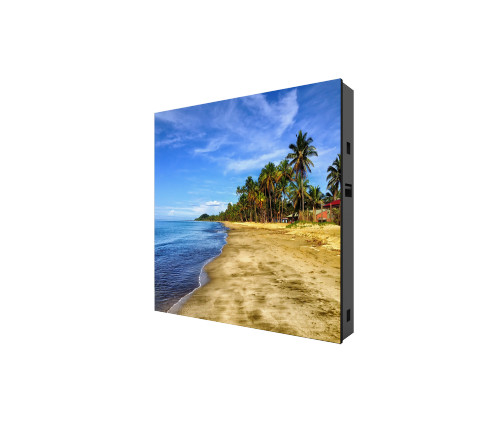

Note: The Uniview MW7780-FO-D is a P8 Outdoor Fixed LED Display designed for large-scale outdoor digital signage and advertising applications. It features an 8 mm pixel pitch, 5500 nits standard brightness, 14-bit grayscale, 3840 Hz refresh rate, 120° × 120° viewing angle, and a durable SPCC metal cabinet with IP65 protection.

Important: The MW7780-FO-D uses a 960 × 960 mm cabinet with 120 × 120 pixel resolution and supports 5500 nits standard brightness, with higher-brightness golden-wire options available. It supports rear maintenance, AC 100–240 V power input, average power consumption of 300 W/m², maximum power consumption of 800 W/m², IP65 protection, and an LED lifetime of 50,000 hours.
