| Features |
Specifications |
| Product Type |
P1.5 Indoor COB LED Display |
| Encapsulation Method |
Flip-chip COB Common Cathode |
| Pixel Pitch |
1.5625mm |
| Module Resolution |
96 × 108 Pixels |
| Module Dimensions |
150 × 168.75mm |
| Cabinet Resolution |
384 × 216 Pixels |
| Cabinet Dimensions |
600 × 337.5 × 39.5mm |
| Cabinet Material |
Die-cast Aluminum + Plastic |
Optical
| Item |
Specifications |
| Brightness |
600 nits |
| Contrast Ratio |
20000:1 |
| Color Temperature |
6500K ~ 12000K, Adjustable |
| Viewing Angle |
170° Horizontal / 160° Vertical |
| Brightness Uniformity |
≥97% |
| Color Uniformity |
±0.003 (Cx, Cy) |
| Single Pixel Brightness Correction |
Supported |
| Single Pixel Color Correction |
Supported |
Processing Performance
| Item |
Specifications |
| Pixel Density |
409,600 Dots/m² |
| Surface Evenness |
≤0.1mm |
| Grayscale |
14-bit |
| Scanning Mode |
54S |
| Drive Mode |
Constant Current Driving |
| Frame Frequency |
50/60Hz |
| Refresh Rate |
≥3840Hz |
Electrical
| Item |
Specifications |
| Power Supply |
AC 100 ~ 240V |
| Average Power Consumption |
100W/m² |
| Maximum Power Consumption |
260W/m² |
General
| Item |
Specifications |
| Maintenance Mode |
Front Maintenance |
| Ingress Protection |
IP65 (Front) |
| Cabinet Weight |
5kg per Cabinet |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
10% ~ 90% RH, Non-Condensing |
| Storage Temperature |
-20°C ~ 60°C |
| Storage Humidity |
10% ~ 90% RH, Non-Condensing |
| LED Lifetime |
100,000 Hours |

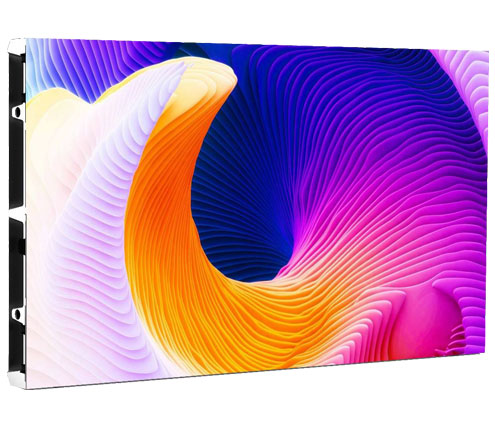

Note: The MW7815-FI-CF is a P1.5 indoor COB LED display featuring Flip-chip COB technology, a 600 × 337.5 × 39.5mm cabinet, 409,600 dots/m² pixel density, 20000:1 contrast ratio and a refresh rate of ≥3840Hz.
Important: Specifications are based on the official UNV MW7815-FI-CF product documentation.
