| Features |
Specifications |
| Product Type |
P1.86 Indoor Fine Pixel LED Display |
| Pixel Pitch |
1.86mm |
| Module Resolution |
172 × 86 Pixels |
| Module Dimensions |
320 × 160mm |
| Cabinet Resolution |
344 × 258 Pixels |
| Cabinet Dimensions |
640 × 480 × 64.5mm |
| Modules Component |
2 × 3 |
| Cabinet Material |
Die-cast Aluminum |
Optical
| Item |
Specifications |
| Brightness |
450 nits |
| Contrast Ratio |
4000:1 |
| Color Temperature |
6500K ~ 9300K, Adjustable |
| Viewing Angle |
160° Horizontal / 140° Vertical |
| Center Distance Deviation |
<3% |
| Brightness Uniformity |
≥97% |
| Color Uniformity |
±0.003 (Cx, Cy) |
| Single Pixel Brightness Correction |
Supported |
| Single Pixel Color Correction |
Supported |
Processing Performance
| Item |
Specifications |
| Pixel Density |
288,906 Dots/m² |
| Surface Evenness |
≤0.2mm |
| Grayscale |
12-bit |
| Scanning Mode |
43S |
| Drive Mode |
Constant Current Driving |
| Refresh Rate |
≥3840Hz |
Electrical
| Item |
Specifications |
| Power Supply |
AC 100 ~ 240V, 50/60Hz |
| Average Power Consumption |
119W/m² |
| Maximum Power Consumption |
358W/m² |
General
| Item |
Specifications |
| Maintenance Mode |
Front Maintenance |
| Ingress Protection |
IP30 |
| Cabinet Weight |
8.71kg per Cabinet |
| Operating Temperature |
-10°C ~ 40°C |
| Operating Humidity |
10% ~ 80% RH, Non-Condensing |
| Storage Temperature |
-20°C ~ 60°C |
| Storage Humidity |
10% ~ 85% RH, Non-Condensing |
| LED Lifetime |
50,000 Hours |
| Certifications |
CE / FCC |

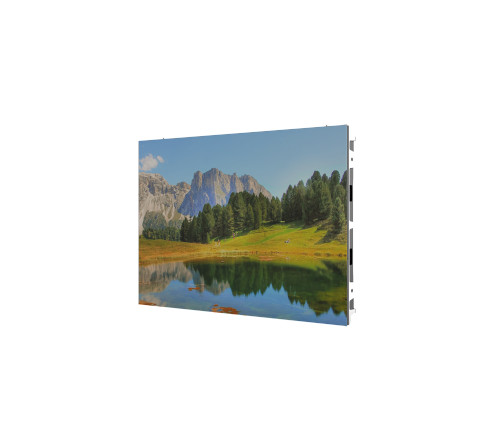

Note: The MW7818-FI-FS is a P1.86 indoor fine pixel LED display featuring a 640 × 480 × 64.5mm die-cast aluminum cabinet, 344 × 258 cabinet resolution, 288,906 dots/m² pixel density and a refresh rate of ≥3840Hz.
Important: Specifications are based on the official UNV MW7818-FI-FS datasheet and product page.
