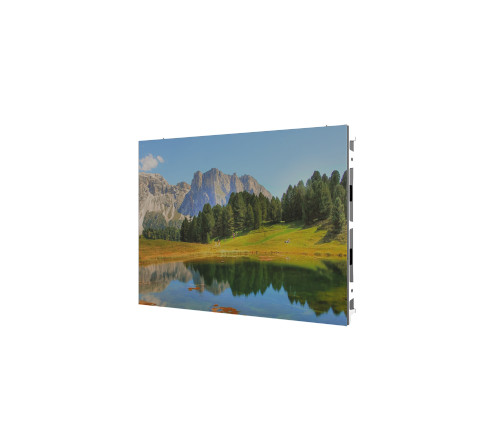

Specifications Uniview MW7820-FI-FS
| Features | Specifications |
|---|---|
| Product Type | P2.0 Indoor Fine Pixel LED Display |
| Pixel Pitch | 2mm |
| Module Resolution | 160 × 80 Pixels |
| Module Dimensions | 320 × 160mm |
| Cabinet Resolution | 320 × 240 Pixels |
| Cabinet Dimensions | 640 × 480 × 64.5mm |
| Modules Component | 2 × 3 |
| Cabinet Material | Die-cast Aluminum |
Optical
| Item | Specifications |
|---|---|
| Brightness | 450 nits |
| Contrast Ratio | 4000:1 |
| Color Temperature | 6500K ~ 9300K, Adjustable |
| Viewing Angle | 160° Horizontal / 140° Vertical |
| Center Distance Deviation | <3% |
| Brightness Uniformity | ≥97% |
| Color Uniformity | ±0.003 (Cx, Cy) |
| Single Pixel Brightness Correction | Supported |
| Single Pixel Color Correction | Supported |
Processing Performance
| Item | Specifications |
|---|---|
| Pixel Density | 250,000 Dots/m² |
| Surface Evenness | ≤0.2mm |
| Grayscale | 12-bit |
| Scanning Mode | 40S |
| Drive Mode | Constant Current Driving |
| Refresh Rate | ≥3840Hz |
Electrical
| Item | Specifications |
|---|---|
| Power Supply | AC 100 ~ 240V, 50/60Hz |
| Average Power Consumption | 120W/m² |
| Maximum Power Consumption | 359W/m² |
General
| Item | Specifications |
|---|---|
| Maintenance Mode | Front Maintenance |
| Ingress Protection | IP30 |
| Cabinet Weight | 8.62kg per Cabinet |
| Operating Temperature | -10°C ~ 40°C |
| Operating Humidity | 10% ~ 80% RH, Non-Condensing |
| Storage Temperature | -20°C ~ 60°C |
| Storage Humidity | 10% ~ 85% RH, Non-Condensing |
| LED Lifetime | 50,000 Hours |
| Certifications | CE / FCC |
Note: The MW7820-FI-FS is a P2.0 indoor fine pixel LED display featuring a 640 × 480 × 64.5mm die-cast aluminum cabinet, 320 × 240 cabinet resolution, 250,000 dots/m² pixel density and a refresh rate of ≥3840Hz.
Important: Specifications are based on the official UNV MW7820-FI-FS datasheet. The model uses P2.0 pixel pitch, 450 nits brightness and 40S scanning mode.
