WI-IOTBOX02(V3) | IoT Box

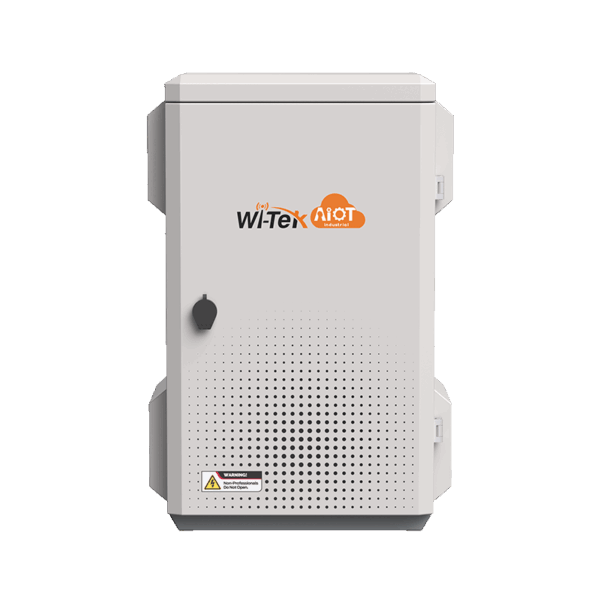

Wi-Tek WI-IOTBOX02(V3)

Outdoor Smart IoT Box

IP55 weatherproof enclosure for outdoor equipment protection
Supports CCTV, IoT and industrial network installations
Modular design with DIN Rail and mounting plates
Built-in fan and ventilation system for heat dissipation
UV, corrosion and dust-resistant metal housing
Supports wall, pole and floor installation

หมวดหมู่: อุปกรณ์เน็ตเวิร์ค (Network), IoT Box, Wi-Tek ป้ายกำกับ: Wi-tek

* ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ *
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop

คุณสมบัติ Wi-Tek WI-IOTBOX02(V3)

Features	Description
Device Type	Outdoor Smart IoT Equipment Protection Box
Application	Outdoor CCTV, WLAN, Wi-Fi Coverage, Industrial IoT Equipment
Protection Rating	IP55 Dust & Water Resistant
Material	SPCC Steel Body with Electrostatic Powder Coating
Installation	Wall Mount / Pole Mount / Floor Mount
Cooling System	Built-in 12V DC Fan with Bottom Air Ventilation
Modular Design	Detachable Panels, DIN Rails, Mounting Plates and Waterproof Connectors
Security	Lockable Door with Microswitch Alarm Support
Cable Entry	Waterproof M25 Cable Glands
Application Equipment	Industrial Switch, PoE Switch, AP, IoT Gateway, CCTV Equipment

Product Type	Outdoor Network Equipment Enclosure Box
Protection Level	IP55
Material	SPCC Steel
Surface Treatment	Electrostatic Spraying
Color	Light Grey + Grey
Installation	Wall / Pole / Floor Mount

STRUCTURE & INSTALLATION
External Dimensions	400 × 600 × 251.2 mm
Internal Dimensions	280 × 540 × 200 mm
Thickness	1.2 mm
Door	1 Door with Lock Hole
Mounting Plate	Multiple Mounting Plates Included
DIN Rail	2 × 275 mm DIN Rails

COOLING & PROTECTION
Cooling System	12V DC Fan with Bottom Ventilation Air Flow
Fan Installation	Top Inner Panel Mounted Fan
Environmental Protection	UV Resistant, Anti-Corrosion, Salt Spray Resistant
EMI Protection	Electromagnetic Interference Protection
Water Protection	Waterproof Structure with Drainage Holes

INTERFACE
Waterproof Connector	4 × M25 Waterproof Cable Connectors
Microswitch	Door Open Detection Switch
Alarm Connection	Supports Power Alarm, Cloud Alarm I/O or Buzzer Alarm
Grounding	Grounding Terminal Included

GENERAL
Operating Environment	Outdoor / Industrial Environment
Operating Temperature	-40°C to 70°C (Equipment Dependent)
Protection	IP55
Weight	Approx. 14.1 kg
Package Weight	Approx. 16.5 kg

Note: Product specifications and features are subject to change without prior notice. Please refer to the latest official information before installation. :contentReference[oaicite:0]{index=0}

Important: The Wi-Tek WI-IOTBOX02(V3) is an outdoor smart equipment enclosure designed to protect networking and IoT devices in harsh environments. It features IP55 protection, modular installation, built-in cooling fan, DIN rails, mounting plates, waterproof connectors, and microswitch alarm support. Suitable for CCTV systems, outdoor PoE switches, wireless networks, and industrial IoT deployments.
