| Features |
Description |
| Device Type |
Easy Smart PoE Switch |
| Network Ports |
4 × 10/100 Mbps PoE RJ45 Ports + 2 × 10/100 Mbps Uplink Ports |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
Up to 60W Total PoE Power Budget |
| PoE Distance |
Extend PoE Transmission Distance Up to 250m |
| Switch Capacity |
1.2 Gbps |
| Management |
Web Management / Wi-Tek Cloud Management |
| Smart Functions |
VLAN Isolation, PD Alive Watchdog, ONVIF Detection |
| Application |
IP Camera, IP Phone, Wireless AP, Network Devices |
| Power Supply |
AC 100-240V |
| Device Type |
Managed Easy Smart PoE Switch |
| PoE Ports |
4 × 10/100 Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × 10/100 Mbps Ethernet Ports |
| Switching Capacity |
1.2 Gbps |
| Packet Forwarding Rate |
0.89 Mpps |
| MAC Address Table |
8K |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Port 1-2 Power |
Hi-PoE Up to 45W Per Port |
| Port 3-4 Power |
802.3af/at Up to 30W Per Port |
| Total PoE Budget |
Up to 60W |
| PoE Extend Mode |
Supports Long Distance PoE Transmission Up to 250m |
| NETWORK FEATURES |
| Management |
Web Interface / Wi-Tek Cloud Platform |
| VLAN |
Port-Based VLAN / Port Isolation |
| Watchdog Function |
PD Alive Automatically Detects and Reboots PoE Devices |
| ONVIF Support |
Automatically Detects ONVIF IP Cameras |
| Forwarding Mode |
Store and Forward |
| DIP SWITCH MODES |
| Extend Mode |
Extends PoE Transmission Distance Up to 250m |
| VLAN Mode |
Isolates PoE Ports to Improve Network Security |
| PD Alive Mode |
Automatically Detects and Restarts Offline PoE Devices |
| PROTECTION |
| Surge Protection |
Common Mode ±4kV / Differential Mode ±2kV |
| ESD Protection |
Contact ±6kV / Air ±8kV |
| Jumbo Frame |
Up to 9216 Bytes |
| GENERAL |
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption |
2.7W (Without PoE Load) |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
169 × 95 × 32 mm |
| Weight |
Approx. 0.48 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

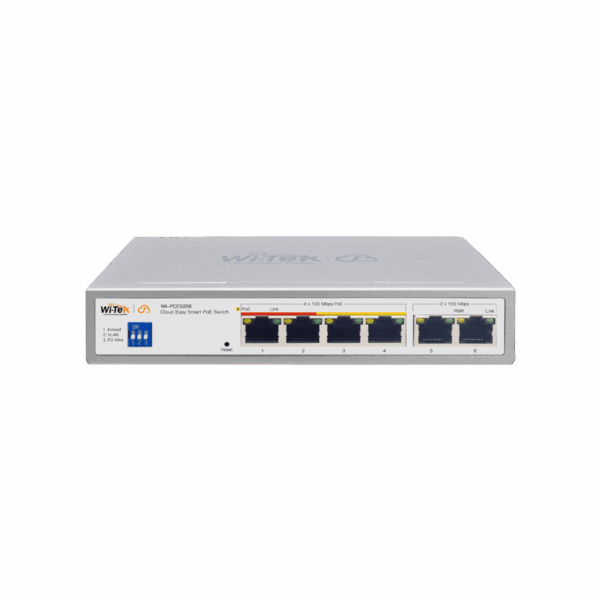

Important: The Wi-Tek WI-PCES206 is an Easy Smart PoE Switch designed for CCTV and network installations. It provides 4 PoE ports with up to 60W power budget, 2 uplink ports, long-distance PoE extension up to 250 meters, VLAN isolation, PD Alive watchdog, ONVIF camera detection, and cloud management support. Suitable for IP cameras, wireless access points, and small network systems.
