Wi-tek WI-PCES310GF(V2)

WI-Tek WI-PCES310GF(V2)

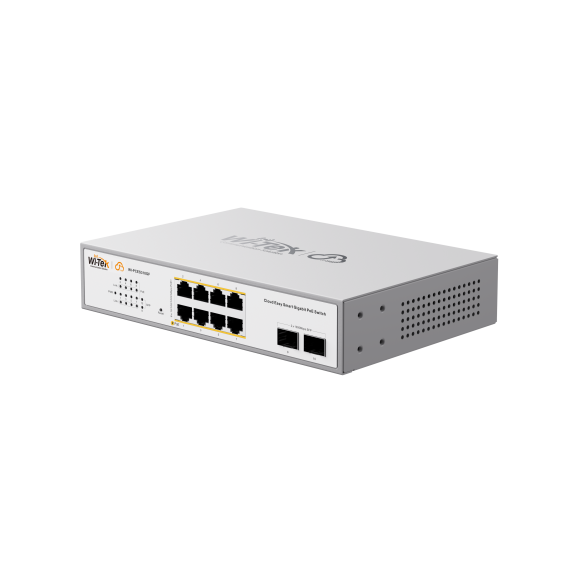

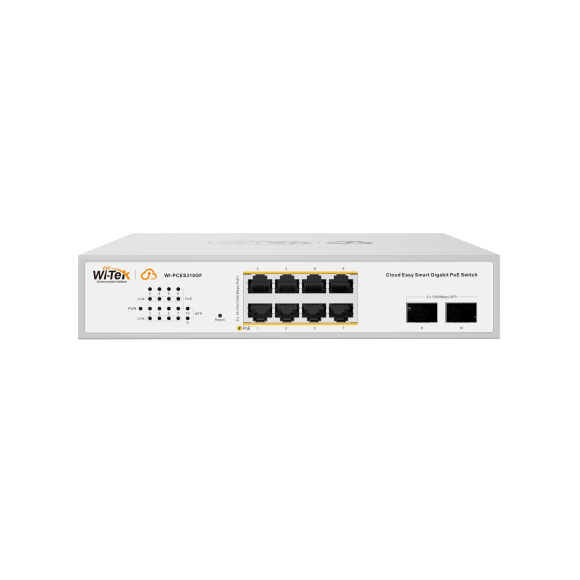

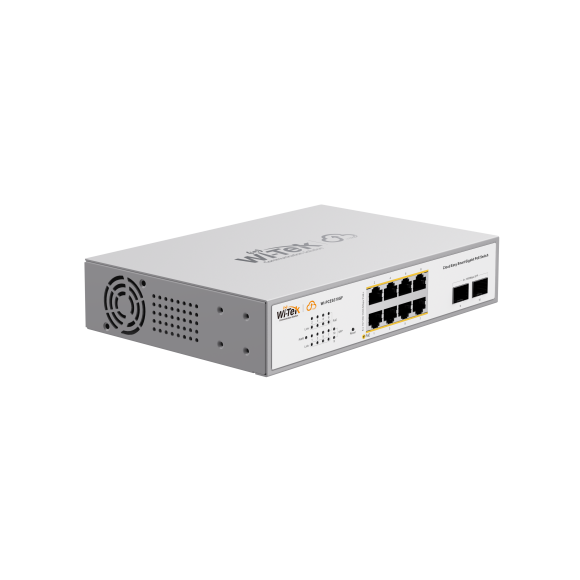

Cloud Easy Smart 10-Port Gigabit PoE+ Switch

  • 8 × Gigabit PoE+ ports and 2 × 1Gbps SFP slots
  • 130W total PoE budget with 802.3af/at support
  • Supports Wi-Tek Cloud management and remote monitoring
  • Supports automatic anti-loop and ONVIF IP camera detection
  • Supports Link Aggregation and QoS
  • Real-time alarm notifications for easy network maintenance
หมวดหมู่: , , ป้ายกำกับ:

Specifications Wi-Tek WI-PCES310GF(V2)

Features Description
Product Type Cloud Easy Smart Gigabit PoE Switch
PoE Ports 8 × 10/100/1000Mbps RJ45 PoE+
Uplink Ports 2 × 1000Mbps SFP
PoE Standard IEEE 802.3af/at
PoE Budget Up to 120W
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
Management Web Management / Wi-Tek Cloud / Mobile App
HARDWARE
PoE Ports 8 × 10/100/1000Mbps RJ45
Uplink Ports 2 × 1000Mbps SFP
PoE Port 1–8 IEEE 802.3af/at
MAC Address Table 8K Entries
Jumbo Frame Up to 9000 Bytes
Mounting Rack-Mountable
PERFORMANCE
Switching Capacity 20Gbps
Forwarding Rate 14.88Mpps
Forwarding Mode Store and Forward
MAC Address Table 8K Entries
POE
PoE Standard IEEE 802.3af / 802.3at
PoE Ports 8 × Gigabit PoE+
PoE Power per Port Up to 30W
Total PoE Budget Up to 120W
PoE Watchdog Supported
SMART FEATURES
Loop Prevention Automatic Anti-Loop
ONVIF Automatically Detects Compatible IP Cameras
Link Aggregation Supported
QoS Supported
VLAN Supported
Port Mirroring Supported
Storm Control Supported
Bandwidth Control Supported
SFP
SFP Ports 2 × 1000Mbps SFP
Uplink Speed 1Gbps
Fiber Connectivity Supported with Compatible 1000Mbps SFP Modules
MANAGEMENT
Web Management Supported
Cloud Management Wi-Tek Cloud
Mobile App Remote Monitoring and Configuration
Alarm Notification Supported
Firmware Upgrade Supported
POWER & GENERAL
Power Supply 100–240V AC, 50/60Hz
Maximum Power Consumption Up to 130W
Dimensions 222 × 156 × 46mm
Installation Rack Mount / Desktop
Operating Temperature -10°C to 50°C

Note: The Wi-Tek WI-PCES310GF(V2) is a Cloud Easy Smart Gigabit PoE Switch featuring 8 × Gigabit PoE+ ports, 2 × 1000Mbps SFP uplink ports, up to 120W PoE budget, ONVIF detection, automatic loop prevention, link aggregation, QoS and Wi-Tek Cloud management.

Important: The WI-PCES310GF(V2) is a Gigabit PoE+ switch with 8 × 10/100/1000Mbps PoE ports and 2 × 1000Mbps SFP uplink ports. Each PoE port supports up to 30W, with a total PoE budget of 120W. The switch also supports Wi-Tek Cloud management, ONVIF, automatic loop prevention, link aggregation and QoS.
