| Features |
Description |
| Device Type |
8-Port 100Mbps PoE Switch |
| Network Ports |
8 × 10/100Mbps PoE Ports + 2 × 10/100Mbps RJ45 Uplink Ports |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
Up to 76W Total PoE Power Budget |
| PoE Output |
Up to 30W Per Port |
| Transmission Distance |
Extend PoE Transmission Distance Up to 250m |
| Switch Capacity |
2 Gbps |
| Smart Functions |
Extend Mode, Port VLAN, PD Alive Function |
| Design |
Metal Housing with Fanless Silent Operation |
| Application |
IP Camera, Wireless AP, IP Phone, Network Devices |
| Power Supply |
AC 100-240V |
| Device Type |
Unmanaged PoE Ethernet Switch |
| PoE Ports |
8 × 10/100Mbps RJ45 PoE Ports |
| Uplink Ports |
2 × 10/100Mbps RJ45 Ports |
| Switching Capacity |
2 Gbps |
| Packet Forwarding Rate |
1.49 Mpps |
| MAC Address Table |
2K |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Port 1-8 PoE Output |
| Maximum Power Per Port |
30W |
| Total PoE Budget |
Up to 76W |
| PoE Transmission |
Up to 250m Extend Mode |
| SMART FEATURES |
| Extend Mode |
Extends PoE Data and Power Transmission Up to 250m |
| Port VLAN Mode |
Isolates PoE Ports for Network Security |
| PD Alive |
Automatically Detects and Reboots Offline PoE Devices |
| Plug & Play |
No Configuration Required |
| NETWORK |
| Network Standard |
IEEE 802.3 / 802.3u / 802.3x / 802.3af / 802.3at |
| Transmission Method |
Store and Forward |
| Jumbo Frame |
15KB |
| Flow Control |
IEEE 802.3x Full Duplex Flow Control |
| PROTECTION |
| Housing |
Metal Case |
| Cooling |
Fanless Passive Cooling |
| Installation |
Desktop / Wall Mount |
| GENERAL |
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption |
Max. 90W (With PoE Load) |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
200 × 118 × 44 mm |
| Weight |
Approx. 0.75 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.

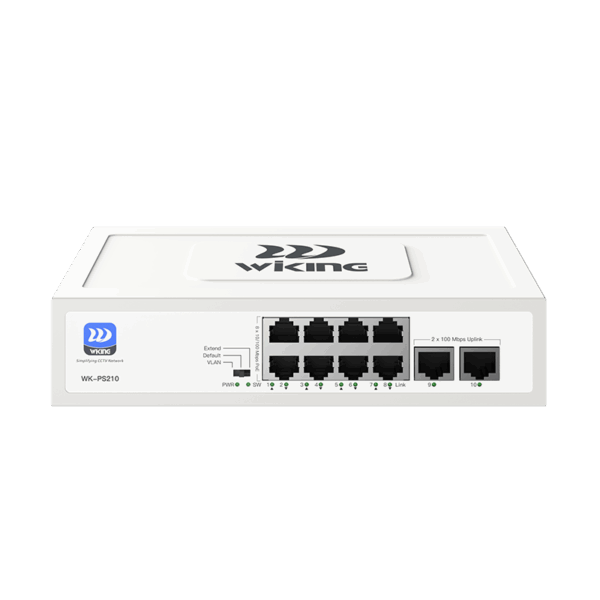

Important: The Wi-Tek WK-PS210 is an 8-port PoE switch designed for CCTV and network installations. It provides 8 × 10/100Mbps PoE ports, 2 uplink ports, up to 76W PoE budget, PoE transmission up to 250 meters, Port VLAN isolation, and PD Alive watchdog function for automatic PoE device restart. Suitable for IP cameras, wireless access points, and small network systems.
