| Features |
Description |
| Device Type |
Full Gigabit Smart PoE Switch |
| Network Ports |
4 × Gigabit PoE Ports + 1 × Gigabit Uplink Port |
| PoE Standard |
IEEE 802.3af/at PoE+ |
| PoE Budget |
45W Total PoE Power Budget |
| PoE Output |
Up to 30W Per Port |
| Transmission Distance |
Extend PoE Transmission Up to 250m |
| Switch Capacity |
10 Gbps |
| Smart Functions |
VLAN Mode, Extend Mode, PoE Watchdog |
| Design |
Fanless Metal Housing |
| Application |
IP Camera, Wireless AP, IP Phone, Network Devices |
| Power Supply |
AC 100-240V |
| Device Type |
Unmanaged Gigabit PoE Switch |
| PoE Ports |
4 × 10/100/1000 Mbps RJ45 PoE Ports |
| Uplink Port |
1 × 10/100/1000 Mbps RJ45 Port |
| Switching Capacity |
10 Gbps |
| Packet Forwarding Rate |
7.44 Mpps |
| MAC Address Table |
2K |
| PoE FEATURES |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| PoE Ports |
Port 1-4 PoE Output |
| Maximum Power Per Port |
30W |
| Total PoE Budget |
45W |
| PoE Extend Mode |
Supports Long Distance Transmission Up to 250m |
| SMART FEATURES |
| PoE Watchdog |
Automatically Detects and Reboots Unresponsive PoE Devices |
| VLAN Mode |
Isolates PoE Ports to Improve Network Security |
| Extend Mode |
Extends Data and Power Transmission Distance Up to 250m |
| Plug & Play |
No Configuration Required |
| NETWORK |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3ab / IEEE 802.3x |
| Transmission Method |
Store and Forward |
| Jumbo Frame |
Up to 9KB |
| Flow Control |
IEEE 802.3x Full Duplex Flow Control |
| PROTECTION |
| Surge Protection |
Lightning Protection Support |
| ESD Protection |
Electrostatic Discharge Protection |
| Housing |
Metal Case |
| Cooling |
Fanless Passive Cooling |
| GENERAL |
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption |
Max. 55W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 90% RH (Non-Condensing) |
| Dimensions |
160 × 90 × 35 mm |
| Weight |
Approx. 0.6 kg |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official information before installation.

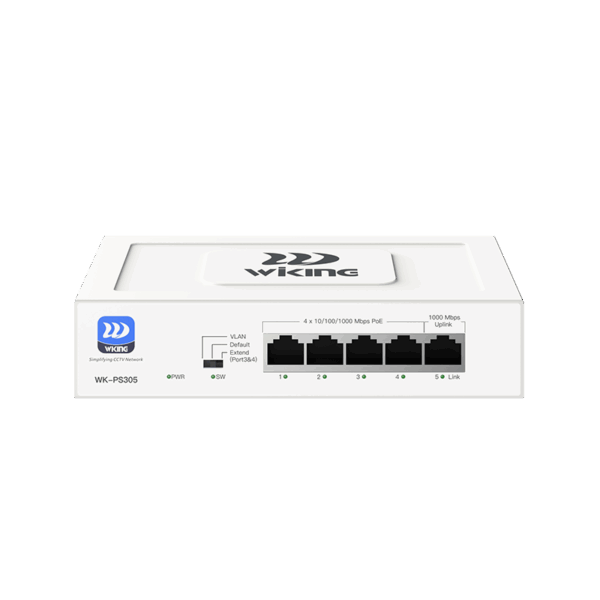

Important: The Wi-Tek WK-PS305 is a compact Full Gigabit PoE Switch designed for CCTV and small network installations. It provides 4 PoE Gigabit ports with 45W total PoE budget, 1 Gigabit uplink port, PoE watchdog, VLAN isolation, and Extend Mode supporting transmission distances up to 250 meters. Suitable for IP cameras, wireless access points, and small business networks.
