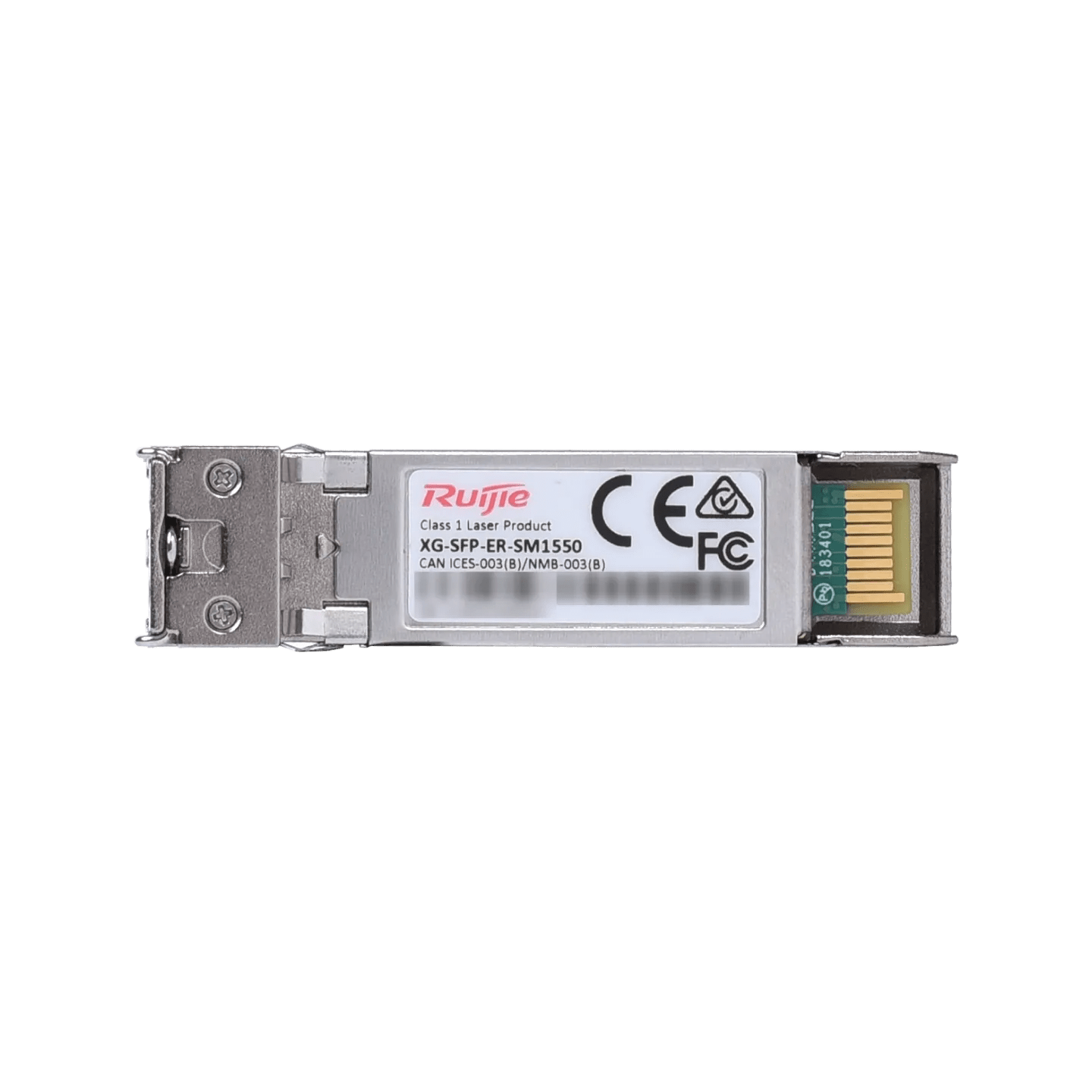

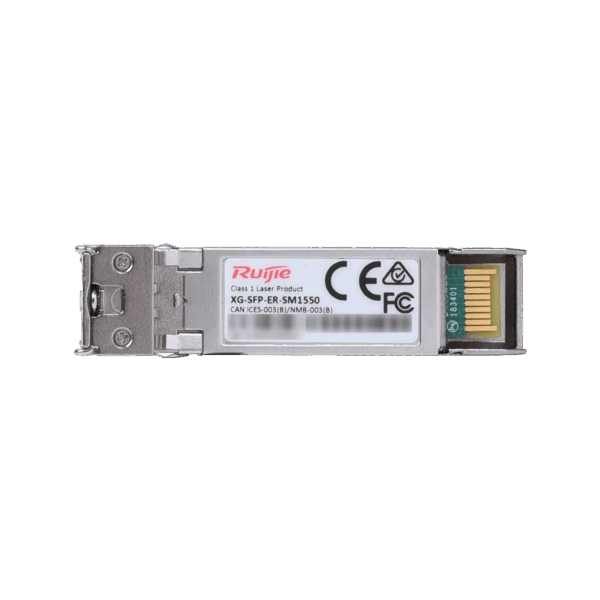

XG-SFP-ER-SM1550

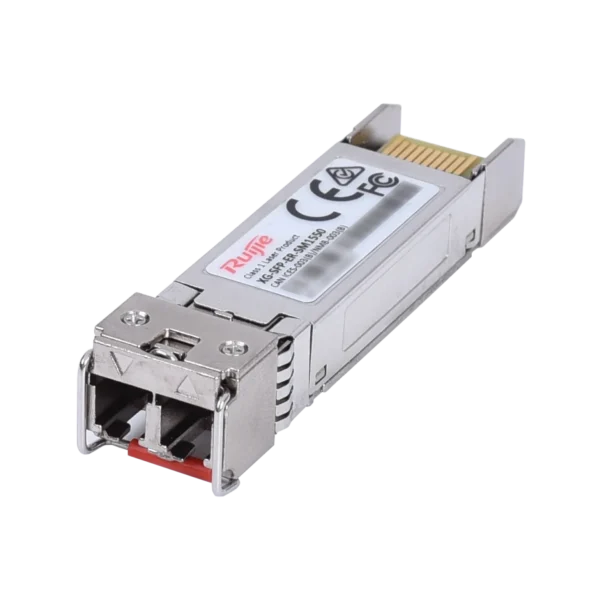

Ruijie XG-SFP-ER-SM1550
10GBASE-ER SFP+ Optical Transceiver Module
- 10Gbps SFP+ optical module with 1550nm wavelength
- Supports Single Mode Fiber (SMF) with Duplex LC connector
- Transmission distance up to 40km over single-mode fiber
- Supports IEEE 10GBASE-ER standard with SFP+ MSA compliance
- Supports DDM/DOM for real-time optical monitoring
- Ideal for data center, campus network and long-distance fiber links
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
Specifications Ruijie XG-SFP-ER-SM1550
| Features | Description |
|---|---|
| Device Type | 10GBASE-ER SFP+ Optical Transceiver Module |
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate | 10.3125Gbps |
| Fiber Type | Single Mode Fiber (SMF) |
| Wavelength | 1550nm |
| Connector Type | Duplex LC Connector |
| Transmission Distance | Up to 40km |
| Transmitter Type | 1550nm DFB Laser |
| Receiver Type | PIN Photodiode |
| Compatible Devices | Ruijie Switch, Router and Network Devices with SFP+ Port |
| Optical Standard | IEEE 802.3ae 10GBASE-ER |
|---|---|
| Fiber Mode | Single Mode Fiber (SMF) 9/125μm |
| Fiber Connector | Duplex LC UPC |
| Digital Diagnostic Monitoring (DDM/DOM) | Supported |
| Hot Swappable | Supported |
| Application | Data Center, Campus Network, Metropolitan Area Network and Long-Distance Fiber Uplink |
| SMART FEATURES | |
|---|---|
| High-Speed Fiber Link | Provides 10Gbps Fiber Connectivity for High-Bandwidth Network Backbone |
| Long Distance Transmission | Supports Fiber Transmission up to 40km Over Single Mode Fiber Cable |
| SFP+ Hot Plug Design | Allows Easy Installation and Replacement Without Network Downtime |
| DDM Monitoring | Supports Monitoring of Optical Power, Temperature, Voltage and Transceiver Status |
| Low Power Consumption | Maximum Power Consumption ≤1.5W for Energy-Efficient Operation |
| GENERAL | |
|---|---|
| Dimensions | 56.5 × 13.5 × 8.5mm |
| Weight | Approximately 35g |
| Operating Temperature | -40°C to 85°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 10% to 90% RH (Non-Condensing) |
| Power Supply | 3.3V DC |
| Warranty | 3 Years |
Note: The XG-SFP-ER-SM1550 is a 10GBASE-ER SFP+ optical transceiver module designed for long-distance single-mode fiber networks. It supports 10Gbps data transmission, 1550nm wavelength, Duplex LC connector, DDM monitoring, and transmission distances up to 40km over SMF. It is suitable for data centers, enterprise networks, campus networks, and long-distance fiber uplink connections.
Important: The Ruijie XG-SFP-ER-SM1550 is a 10G SFP+ single-mode optical module featuring IEEE 802.3ae 10GBASE-ER support, 10.3125Gbps data rate, 1550nm DFB laser transmitter, Duplex LC interface, DDM/DOM monitoring, hot-swappable design, low power consumption ≤1.5W, and transmission distance up to 40km. It is ideal for long-distance fiber connections between switches, routers, servers, and network infrastructure devices.
