| Features |
Description |
| Recorder Type |
4CH Penta-brid 5MP Value/1080P Mini 1U WizSense Digital Video Recorder |
| Analog Video Input |
4 × BNC |
| IP Camera Input |
Up to 6 Channels, up to 6MP per Channel |
| Video Format |
HDCVI / AHD / TVI / CVBS / IP |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| AI |
SMD Plus / Perimeter Protection / Face Detection / Face Recognition / QuickPick 2.0 |
| Storage |
1TB SSD Preinstalled |
| Video Output |
1 × HDMI / 1 × VGA |
| Network |
1 × 10/100 Mbps RJ45 |
| Power Supply |
12 VDC, 1.5 A |
| SYSTEM |
| Main Processor |
Industrial-grade Processor |
| Operating System |
Embedded Linux |
| Operating Interface |
Web / Local GUI |
| Product Series |
S-XVR Series / WizSense |
| VIDEO INPUT |
| Analog Video Input |
4 × BNC, HDCVI / AHD / TVI / CVBS Auto-detect |
| HDCVI |
5MP@20fps, 5MP@25fps, 5MP@10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps |
| TVI |
5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| AHD |
5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps |
| IP Camera Input |
Up to 6 Channels, up to 6MP per Channel |
| Incoming Bandwidth |
32 Mbps |
| Recording Bandwidth |
32 Mbps |
| Outgoing Bandwidth |
32 Mbps |
| IP Extension |
Up to 4 additional IP channels by converting analog channels |
| RECORDING & COMPRESSION |
| Recording Resolution |
5MP / 5M-N / 4M-N / 1080p / 1080N / 720p / 960H / D1 / CIF |
| 5MP Recording |
All Channels at 1–6 fps |
| 5M-N Recording |
All Channels at 1–12 fps |
| 4M-N / 1080p |
1–15 fps |
| 1080N / 720p / 960H / D1 / CIF |
1–25/30 fps |
| Sub Stream |
D1 / CIF at 1–15 fps |
| Video Compression |
AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264 |
| Video Bit Rate |
32 Kbps – 6144 Kbps |
| Dual Stream |
Supported |
| AI & SMART FEATURES |
| SMD Plus |
4 Channels with Human and Motor Vehicle Filtering |
| Perimeter Protection |
Up to 4 Channels, 10 IVS Rules per Channel |
| Face Detection |
1 Channel, up to 8 Face Images/s |
| Face Recognition |
1 Channel |
| Face Database |
Up to 10 Databases with 10,000 Face Images |
| Face Attributes |
6 Attributes |
| QuickPick 2.0 |
1 Channel |
| AI Coding |
4 Channels |
| VIDEO OUTPUT & DISPLAY |
| HDMI Output |
1 × HDMI |
| VGA Output |
1 × VGA |
| HDMI Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| VGA Resolution |
1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Display Modes |
1 / 4 Channels; 1 / 4 / 6 Channels in IP Extension Mode |
| Playback |
1 / 4 Channels |
| Playback Modes |
Instant / General / Event / Tag / Smart Playback |
| AUDIO |
| Audio Input |
4 × RCA + 4 × BNC Coaxial Audio |
| Audio Output |
1 × RCA |
| Two-way Talk |
Supported via First Channel Audio Input |
| Audio Compression |
G.711A / G.711U / PCM |
| Audio Sampling |
8 kHz, 16-bit |
| Audio Bit Rate |
64 Kbps |
| STORAGE |
| Storage Type |
SSD |
| Preinstalled Storage |
1TB SSD |
| Replaceable SSD |
256GB / 512GB |
| Recording Duration |
Approx. 22 Days under Default Settings with 1TB SSD |
| Storage Interface |
1 × SSD Interface |
| Backup |
USB Device / Network |
| NETWORK |
| Network Interface |
1 × 10/100 Mbps RJ45 Ethernet |
| Network Mode |
Single-address Mode |
| Protocols |
HTTP / HTTPS / TCP/IP / IPv4 / IPv6 / RTSP / UDP / NTP / DHCP / DNS / SMTP / UPnP / IP Filter / FTP / DDNS / Alarm Server / P2P |
| ONVIF |
Profile T / Profile S / Profile G |
| Interoperability |
ONVIF / CGI / SDK |
| Mobile Access |
iOS / Android |
| Browser |
Chrome / Firefox / IE |
| ALARM & EVENT |
| General Alarm |
Motion Detection / Local Alarm / Alarm Box / Camera External Alarm / Network Alarm / PIR Alarm |
| Anomaly Alarm |
Disk Error / Low Space / Network Disconnection / IP Conflict / MAC Conflict / Video Loss / Video Tampering / Camera Offline |
| Intelligent Alarm |
Face Detection / Face Recognition / Perimeter Protection |
| Alarm Input |
8 Channels |
| Alarm Output |
3 Channels |
| Alarm Linkage |
Record / Snapshot / Local Alarm / Audio / Buzzer / Log / Preset / Email |
| INTERFACE |
| USB |
2 × USB 2.0, Front ×1 / Rear ×1 |
| HDMI |
1 × HDMI |
| VGA |
1 × VGA |
| Network |
1 × RJ45 10/100 Mbps |
| RS-485 |
1 × RS-485 for PTZ Control |
| Audio Input |
4 × RCA + 4 × BNC |
| Audio Output |
1 × RCA |
| POWER & PHYSICAL |
| Power Supply |
12 VDC, 1.5 A |
| Power Consumption |
< 5 W with SSD |
| Dimensions |
325.0 × 257.1 × 55.0 mm |
| Net Weight |
1.31 kg |
| Gross Weight |
1.77 kg |
| Installation |
Rack / Desktop |
| ENVIRONMENT |
| Operating Temperature |
-10°C to +55°C |
| Storage Temperature |
-20°C to +60°C |
| Operating Humidity |
≤93% RH, Non-Condensing |
| Certifications |
CE-LVD / CE-EMC |

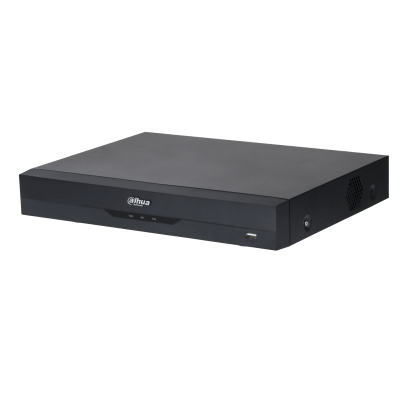

Note: The XVR5104HE-I3(1T) is a 4-channel Penta-brid WizSense XVR with a preinstalled 1TB SSD. It supports HDCVI, AHD, TVI, CVBS and IP cameras, with up to 6 IP channels and 6MP IP camera support.
Important: The 1TB SSD is preinstalled and provides approximately 22 days of recording under Dahua default settings. Enabling IP Extension converts analog channels into additional IP channels and disables recorder-side AI functions such as IVS, SMD and Face Recognition.
