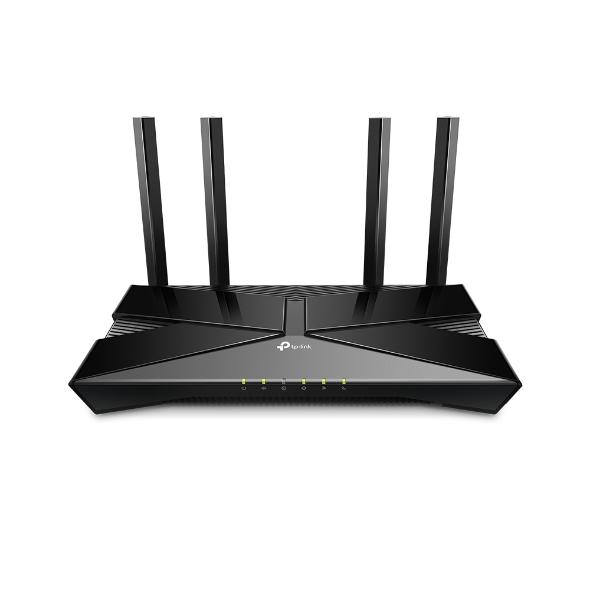

XX530v | AX3000 Dual Band Wi-Fi 6 GPON Router
TP-Link XX530v
AX3000 Dual Band Wi-Fi 6 GPON VoIP Router
- Dual-band AX3000 Wi-Fi 6 up to 3000Mbps
- Supports GPON with download speeds up to 2.488Gbps
- 1×Gigabit WAN/LAN, 3×Gigabit LAN, 1×FXS and 1×USB 2.0
- Supports EasyMesh, MU-MIMO and OFDMA
- Remote management via Aginet App, OMCI and TR-069
- Ideal for FTTH home and office applications
*** ผู้รับเหมาโครงการต้องการราคาพิเศษสนใจติดต่อ ***
เบอร์มือถือ : 063-1963553 ไอดีไลน์ : ifocusshop
คุณสมบัติ TP-LINK XX530v
| Interface | 1× SC/APC GPON Port 1× 10/100/1000 Mbps WAN/LAN Port 3× 10/100/1000 Mbps LAN Ports 1× FXS Port 1× USB 2.0 Port |
|---|---|
| Button | WPS/Wi-Fi Button RESET Button Power On/Off Button |
| External Power Supply | 12V/1.5A |
| Data Rates | Downstream Speeds: 2.488 Gbps (GPON) Upstream Speeds: 1.244 Gbps (GPON)§ |
| Antenna | 4 External Antennas |
| Wireless Standards | IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | AX3000 5 GHz: Up to 2402 Mbps (HE160) 2.4 GHz: Up to 574 Mbps (HE40)* |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2/WPA3 Encryptions |
| Transmission Power | CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID |
| Wireless Schedule | Support 2.4 GHz and 5 GHz Wireless Schedule |
| Mesh Technology | EasyMesh Compatible, and support 802.11k/v/r |
| Quality of Service | Hardware QoS, Flow Classification |
|---|---|
| Advanced Features | Parental Controls, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3 |
| Security | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, Defense “Denial of Service (DoS), SYNFlooding, Ping of Death” |
| Management Features | Local management: WebGUI, Aginet app (for end users)
Remote management: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111,TR-143 for service providers Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| Protocols | IPv4, IPv6 |
| VPN Server | PPTP VPN, IPSec VPN , OpenVPN |
| Package Content | WiFi6 GPON Router XX530v RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
|---|---|
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
Note: Product specifications and software features are subject to change without prior notice. Please refer to the latest official datasheet before installation.
Important: The TP-Link XX530v is an AX3000 Wi-Fi 6 GPON VoIP router featuring Gigabit Ethernet, EasyMesh, SIP voice services, and advanced Wi-Fi technologies. It is ideal for FTTH deployments requiring high-speed internet and reliable voice connectivity.
