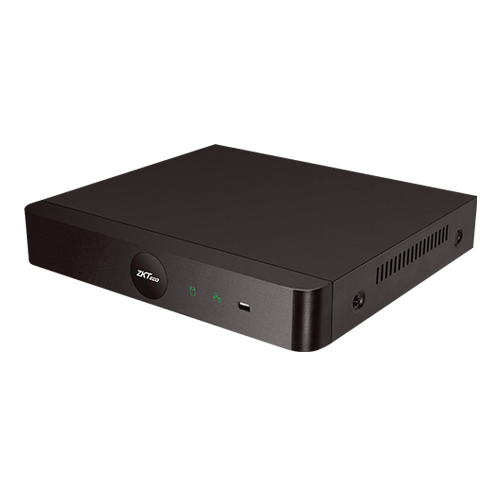

Specifications ZKTeco Z8504NER
| Features | Specifications |
|---|---|
Video & Recording |
|
| Product Type | 4-Channel Non-PoE NVR |
| Maximum IP Camera Input | 4 Channels |
| Maximum Camera Resolution | 5MP |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 5MP / 3MP / 1080P / 960P / 720P |
| Live View | 1 / 4 Channels |
| Live View Resolution | 5MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth | 40 Mbps |
| Bit Rate | 16 Kbps–8 Mbps |
| Recording Mode | Manual / External Alarm / Motion / Scheduled / IVA Alarm |
| Two-Way Talk | Not Supported |
| Audio Compression | G.711a |
Intelligent Video Analytics |
|
| Local IVA Functions | Target Counting / Object Detection / Intrusion / Tripwire |
| Regular Detection | Motion Detection / Video Tampering / Video Loss |
| AI Search | IVA Search / Time / Motion Detection |
Playback & Backup |
|
| Playback Channels | Up to 4 Channels |
| Playback Functions | Play / Stop / Forward / Reverse / Fast Play / Slow Play / Single Frame / Snapshot / Full Screen |
| Backup Mode | USB Device / Network |
Storage |
|
| SATA Ports | 1 × SATA |
| HDD Capacity | Up to 8 TB |
| RAID | Not Supported |
Network |
|
| Network Interface | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / HTTP / DDNS / SMTP (SSL) / DHCP / PPPoE / UPnP / NTP / P2P |
| Mobile Application | AntarView Pro |
| Management Platform | AntarVis 2.0 |
| Interoperability | ONVIF Profile S / SDK |
| Maximum Online Users | 5 |
| P2P Cloud Service | Supported |
Interfaces |
|
| HDMI Output | 1 × HDMI, up to 1080P |
| VGA Output | 1 × VGA |
| USB | 2 × USB 2.0 |
| Audio Input / Output | 0 / 1 |
| Alarm Input / Output | Not Supported |
| RS-485 | Not Supported |
| PoE Ports | Not Supported |
General |
|
| Processor | Multi-Core Embedded Processor |
| Operating System | Embedded Linux |
| Power Supply | DC 12V, 2A |
| Power Consumption | ≤15W, without HDD |
| Casing | Mini 1U |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 255 × 210 × 43 mm |
| Net Weight | Approx. 2.5 kg, without HDD |
| Gross Weight | Approx. 3 kg, without HDD |
Note: The ZKTeco Z8504NER is a 4-channel non-PoE NVR supporting up to 5MP IP cameras, 40 Mbps incoming bandwidth, 1 SATA HDD up to 8 TB, 1080P HDMI output, IVA functions and ONVIF Profile S compatibility.
