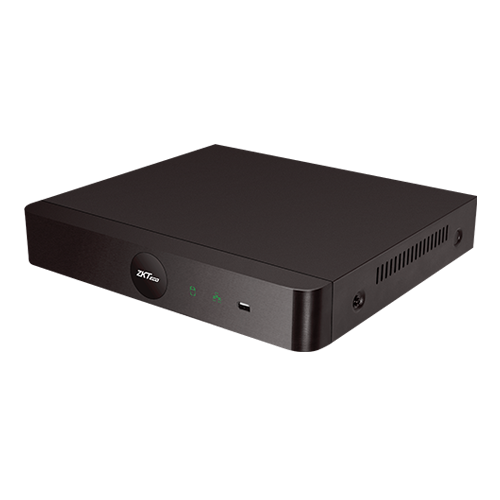

Specifications ZKTeco Z8504NER-4P
| Features | Specifications |
|---|---|
System |
|
| Product Type | 4-Channel H.265+ PoE NVR |
| Maximum IP Camera Input | 4 Channels |
| Processor | Multi-Core Embedded Processor |
| Operating System | Embedded Linux |
Video & Recording |
|
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Recording Resolution | 5MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth | 40 Mbps |
| Bit Rate | 16 Kbps–8 Mbps |
| Record Mode | Manual / External Alarm / Motion / Scheduled / IVA Alarm |
| Playback Channels | 4 Channels |
| Two-Way Talk | N/A |
| Audio Compression | G.711a |
Intelligent Video |
|
| Local IVA Functions | Target Counting / Object Detection / Intrusion / Tripwire |
| Regular Detection | Motion Detection / Video Tampering / Video Loss |
| Search Mode | IVA Search / Time / Motion Detection |
Storage & Backup |
|
| HDD Interface | 1 × SATA |
| HDD Capacity | Up to 8 TB |
| RAID | N/A |
| Backup | USB Device / Network |
Network |
|
| Network Interface | 1 × RJ-45, 10/100 Mbps |
| Network Protocols | TCP/IP / HTTP / DDNS / SMTP (SSL) / DHCP / PPPoE / UPnP / NTP / P2P |
| Interoperability | ONVIF Profile S / SDK |
| Maximum Online Users | 5 |
| Mobile Application | AntarView Pro |
| P2P Cloud Service | Supported |
PoE |
|
| PoE Ports | 4 Ports |
| PoE Power per Port | Up to 15W |
| PoE Transmission Distance | Up to 250 m |
| PoE Standard | IEEE 802.3af |
Interfaces |
|
| HDMI | 1 × HDMI, up to 1080P |
| VGA | 1 × VGA |
| USB | 2 × USB 2.0 |
| Alarm Input | N/A |
| Alarm Output | N/A |
| RS-485 | N/A |
Power & General |
|
| Power Supply | DC 48V, 1.5A |
| Power Consumption | ≤15W, without HDD |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 10% to 90% RH |
| Dimensions | 255 × 210 × 43 mm |
| Net Weight | 2.5 kg |
| Gross Weight | 3 kg |
Note: The ZKTeco Z8504NER-4P is a 4-channel PoE NVR supporting up to 5MP IP cameras, 4 PoE ports, H.265+/H.265/H.264+/H.264 compression, 40 Mbps incoming bandwidth, 1 SATA HDD up to 8 TB, 1080P HDMI output and IVA functions. PoE transmission can reach up to 250 m under supported conditions.
